KWS 1318..

Gate holder with hook

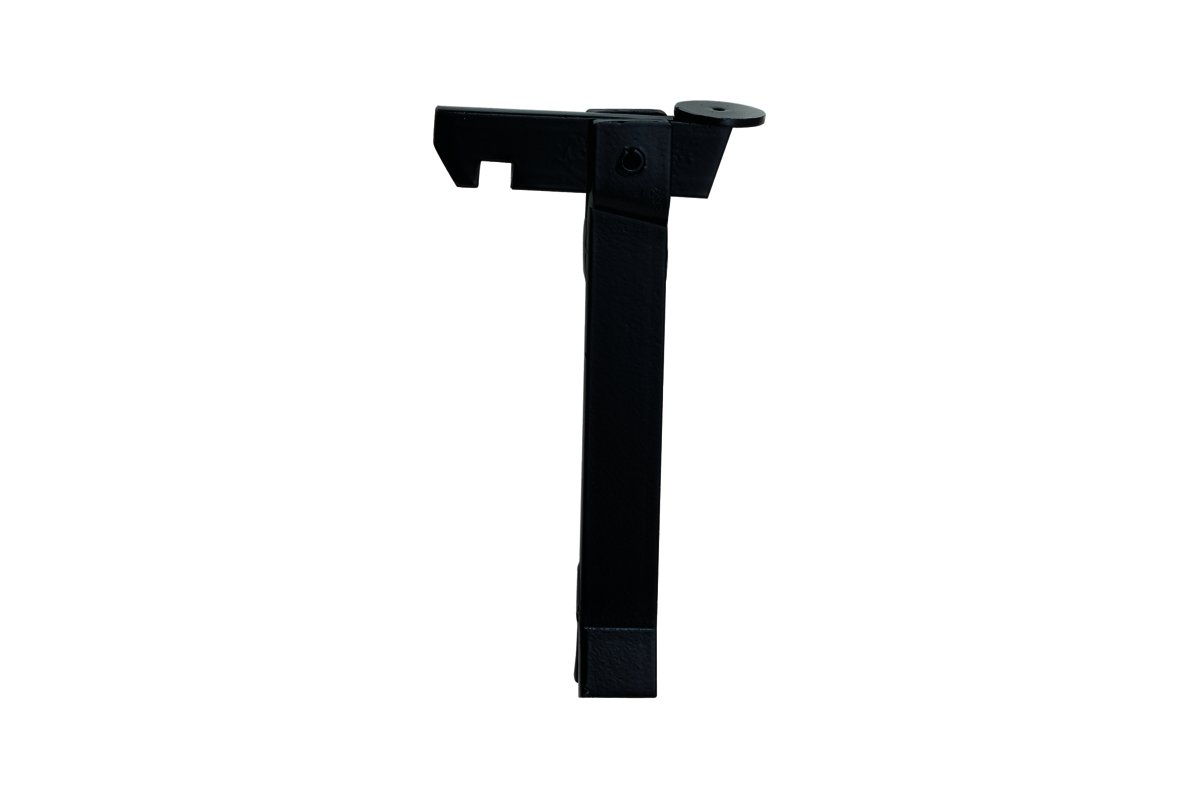

Picture shows KWS 1318.03

Drawing shows KWS 1318..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1318..
Gate holder with hook
holder for casting in, holding bracket to be screwed

Material
flat steel
holding bracket:
steel

Mode of operation
foot actuation

Gate weight
max. 150 kg

Unit weight
0,640 kg
Function
To hold the gate in place, push it against the holder until the hook is engaged on the holding bracket. Actuating the hook releases the gate.
Installation
Grout the gate holder at least 80 mm deep into the floor at the desired arresting point, which should be the furthest possible distance from the gate hinge. Fix the holding bracket to the gate with three screws at the corresponding position so that the screw holes are above the catch hole. When the gate is fixed, the holding bracket also serves as a stop surface.
Downloads
Product drawing (DWG)
