KWS 1311..

Gate holder with hook

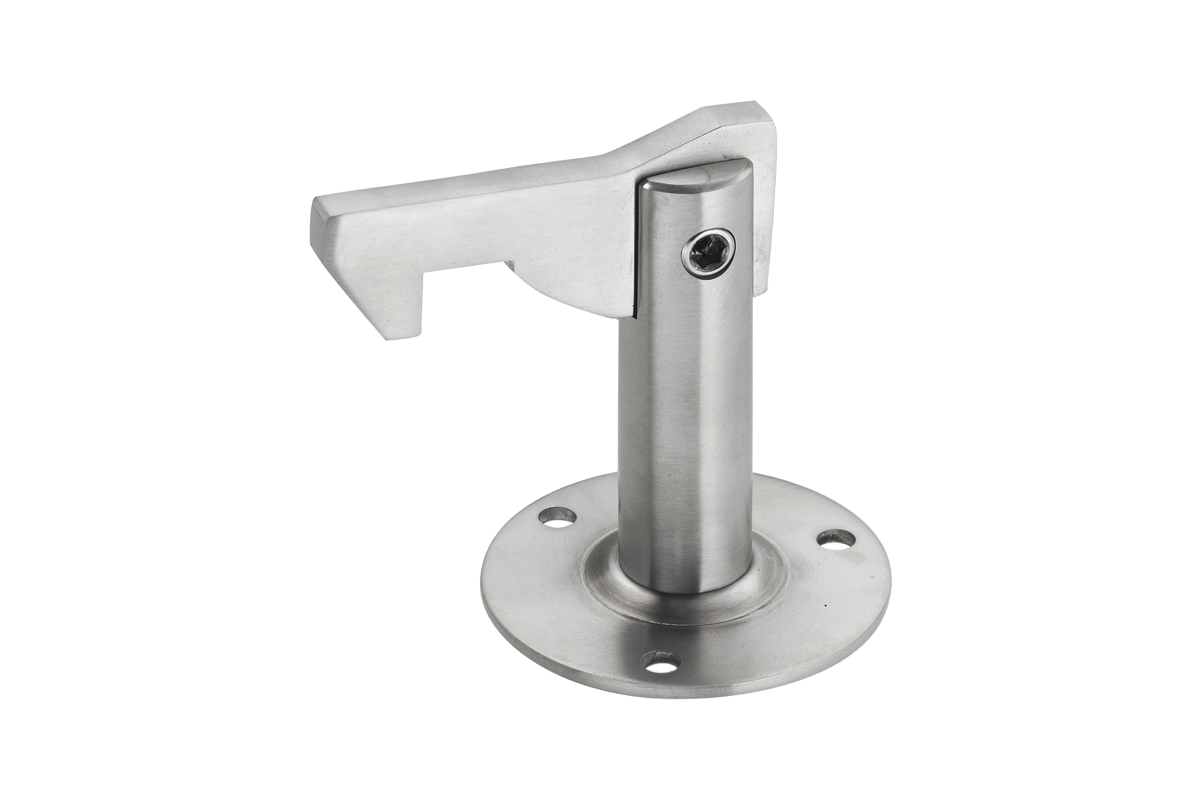

Picture shows KWS 1311.82

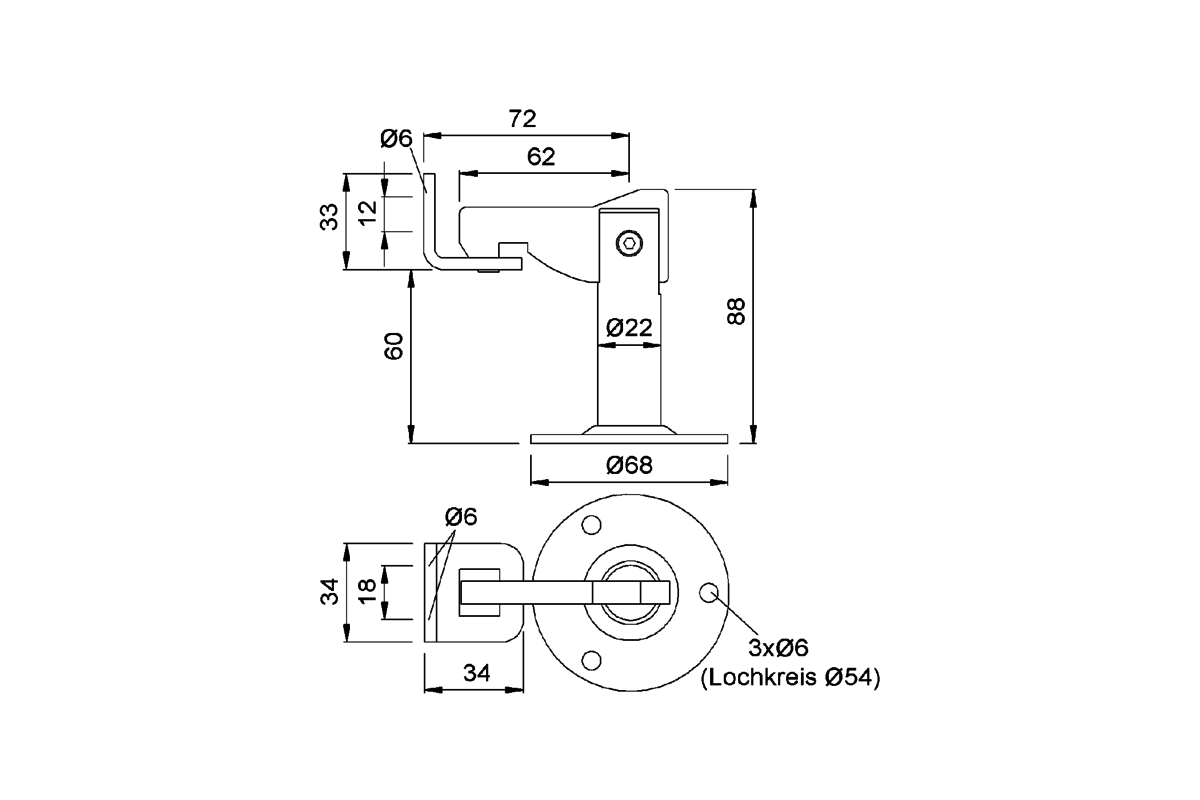

Drawing shows KWS 1311..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1311..
Gate holder with hook
holder and holding bracket to be screwed

Material
steel or stainless steel

Mode of operation
foot actuation

Gate weight
max. 100 kg

Unit weight
0,406 kg (steel)
0,406 kg (stainless steel)
Function
To hold the gate in place, push it against the holder until the hook is engaged on the holding bracket. Actuating the hook releases the gate.
Installation
Mount the gate holder on the floor with three screws and inserted plugs at the desired arresting point, which should be the furthest possible distance from the gate hinge. Fix the holding bracket to the gate with three screws at the corresponding position.
By unscrewing the axel and repositioning the hook, the holder can be converted from floor to wall installation.
Downloads
Product drawing (DWG)
