KWS 1307..

Gate holder with hook

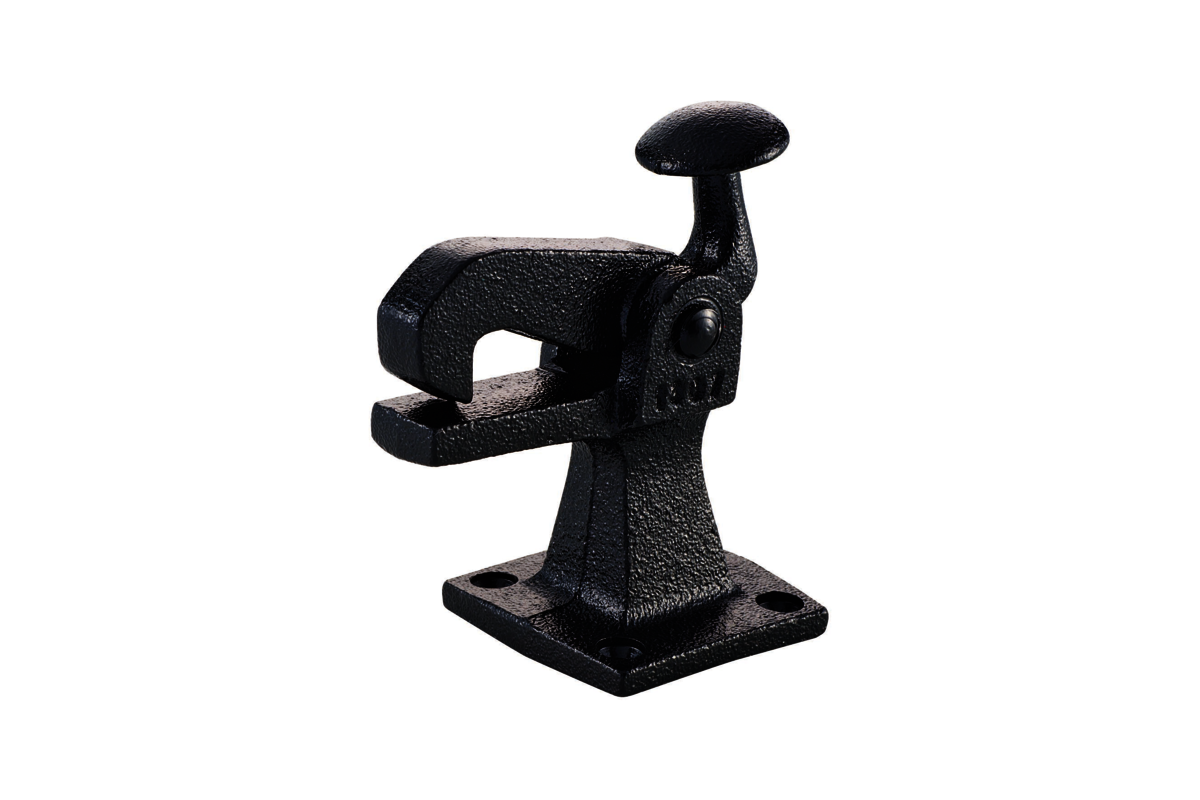

Picture shows KWS 1307.03

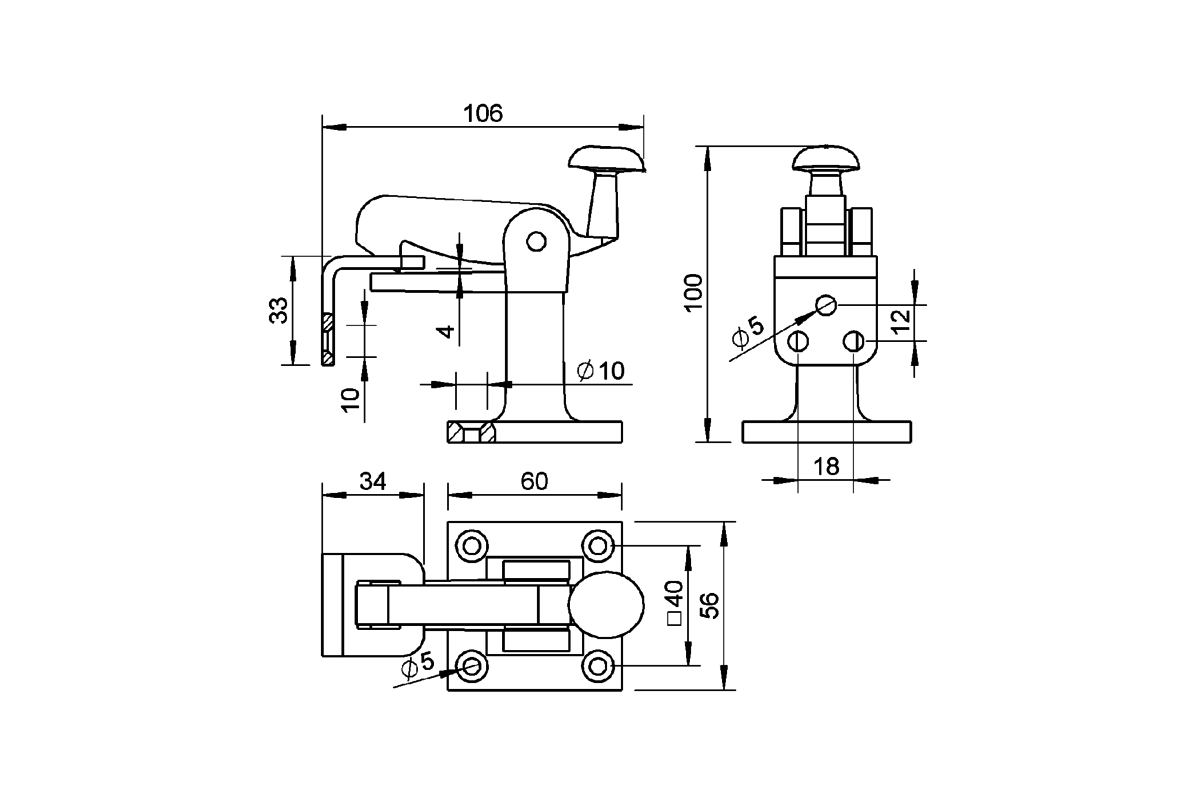

Drawing shows KWS 1307..

Do you have questions regarding the product?
We are happy to advise you!

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 1307..
Gate holder with hook
holder and holding bracket to be screwed

Material
malleable cast iron
holding bracket:
steel

Mode of operation
foot/hand actuation

Gate weight
max. 100 kg

Unit weight
0,620 kg
Function
To hold the gate in place, push it against the holder until the hook is engaged on the holding bracket. Actuating the hook releases the gate.
Installation
Screw the gate holder onto the floor at the desired arresting point, which should be the furthest possible distance from the gate hinge. Fix the holding bracket to the gate at the corresponding position with a height clearance of 4 mm to the stop plate of the holder so that the screw holes are under the catch hole. When the gate is fixed, the holding bracket also serves as a stop surface.
Downloads
Product drawing (DWG)
