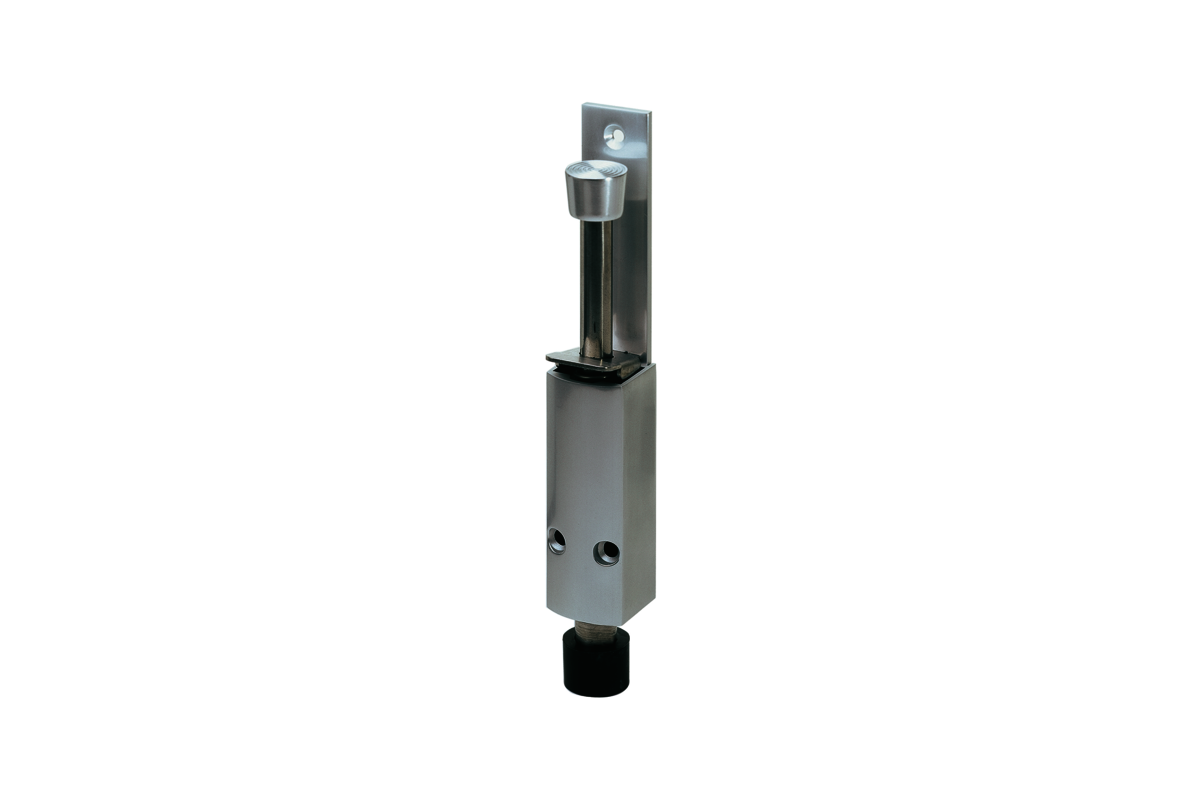

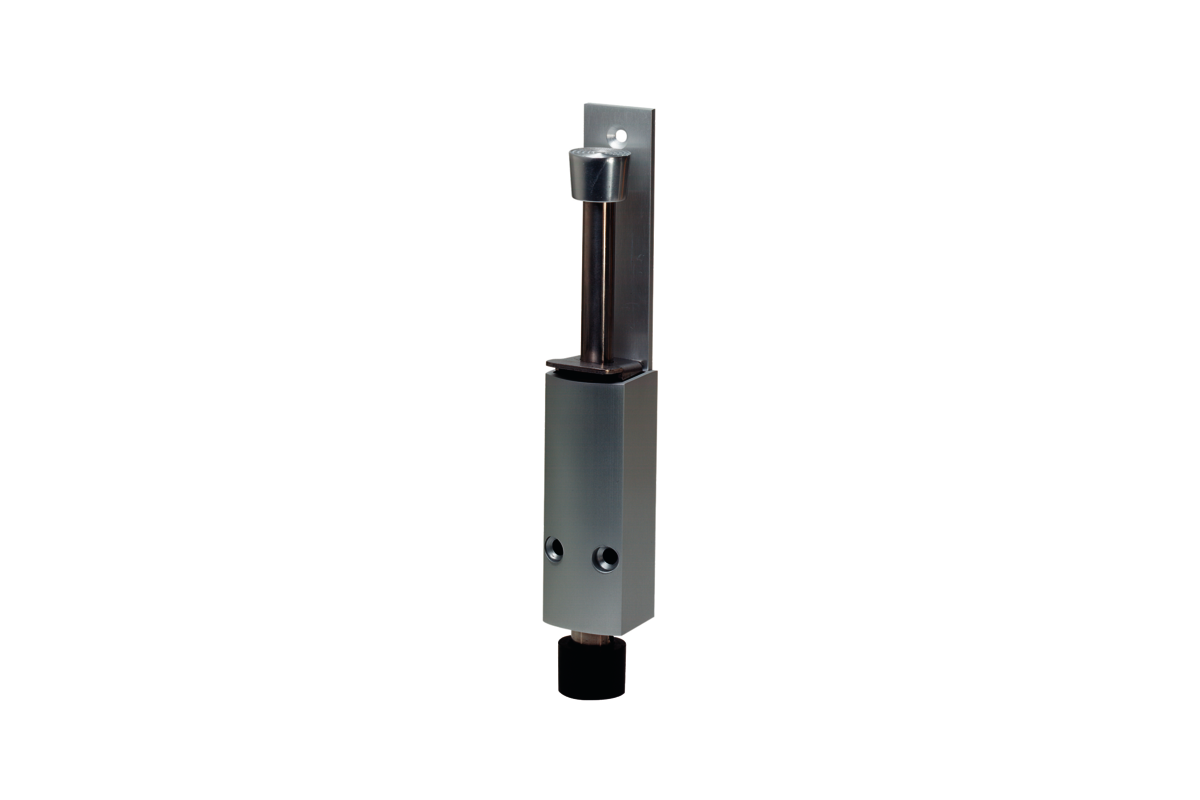

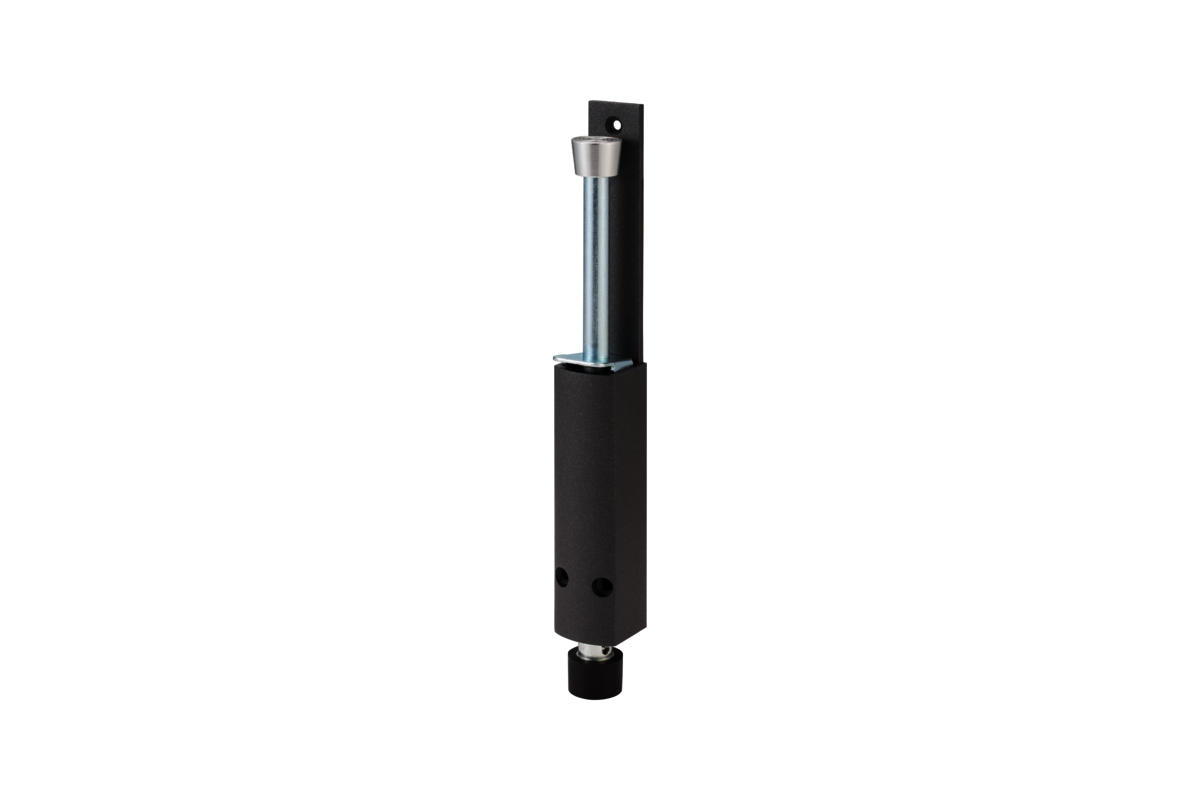

KWS 1220..
Door holder with throw
- to be screwed
- with mounting material
- door closer can be used
Material
aluminium
housing:
aluminium
other metal parts:
steel, galvanized or stainless steel
foot:
rubber, black
Mode of operation
foot actuation
Door weight
max. 40 kg
Throw
30 mm (KWS 1220.. / 1221..)
60 mm (KWS 1222.. / 1223..)
90 mm (KWS 1224.. / 1225..)
120 mm (KWS 1226.. / 1227..)
150 mm (KWS 1228.. / 1229..)
Unit weight
0,365 kg (KWS 1220.. / 1221..)
0,500 kg (KWS 1222.. / 1223..)
0,650 kg (KWS 1224.. / 1225..)
0,790 kg (KWS 1226.. / 1227..)
1,025 kg (KWS 1228.. / 1229..)
