KWS 1058..
Door holder with catch
Material
aluminium or brass
buffer:
rubber, black (also available in white on request)
Mode of operation
foot actuation
Door weight
max. 50 kg
Unit weight
0,140 kg (aluminium)
0,330 kg (brass)
To hold the door in place, snap the door part into the cut-out of the bottom part.
When the door part is not actuated, the floor part only has the function of a door buffer.

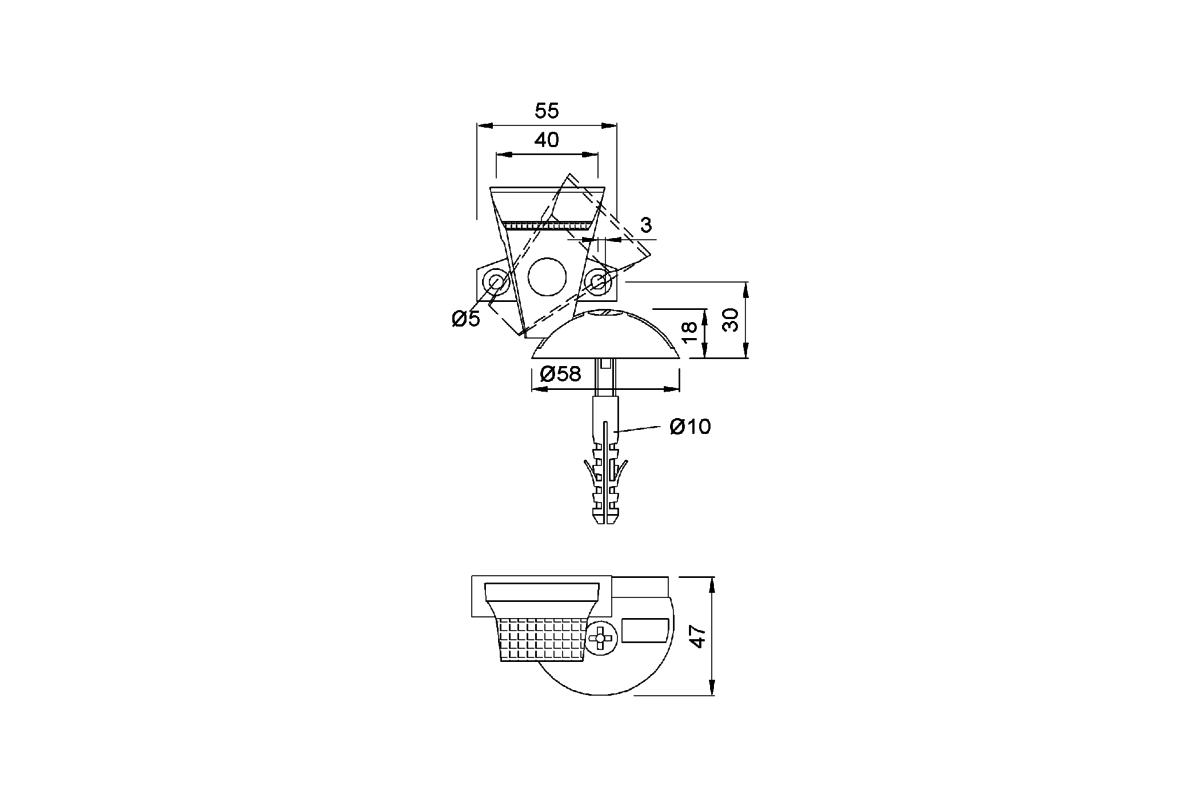

Screw the bottom part onto the floor at the desired arresting point, which should be the furthest possible distance from the door hinge. A pin inserted into the floor prevents the floor block from turning. Mount the door part 30 mm from the base of the bottom part to the centre of the screw holes of the door part and a lateral distance of 3 mm from the centre of the screw hole of the bottom part to the centre of the screw hole of the door part.
For height compensation, the additional use of the shim KWS 1557.. (5 mm high), KWS 1558.. (10 mm high) or KWS 1559.. (15 mm high) is recommended.
