KWS 1057..

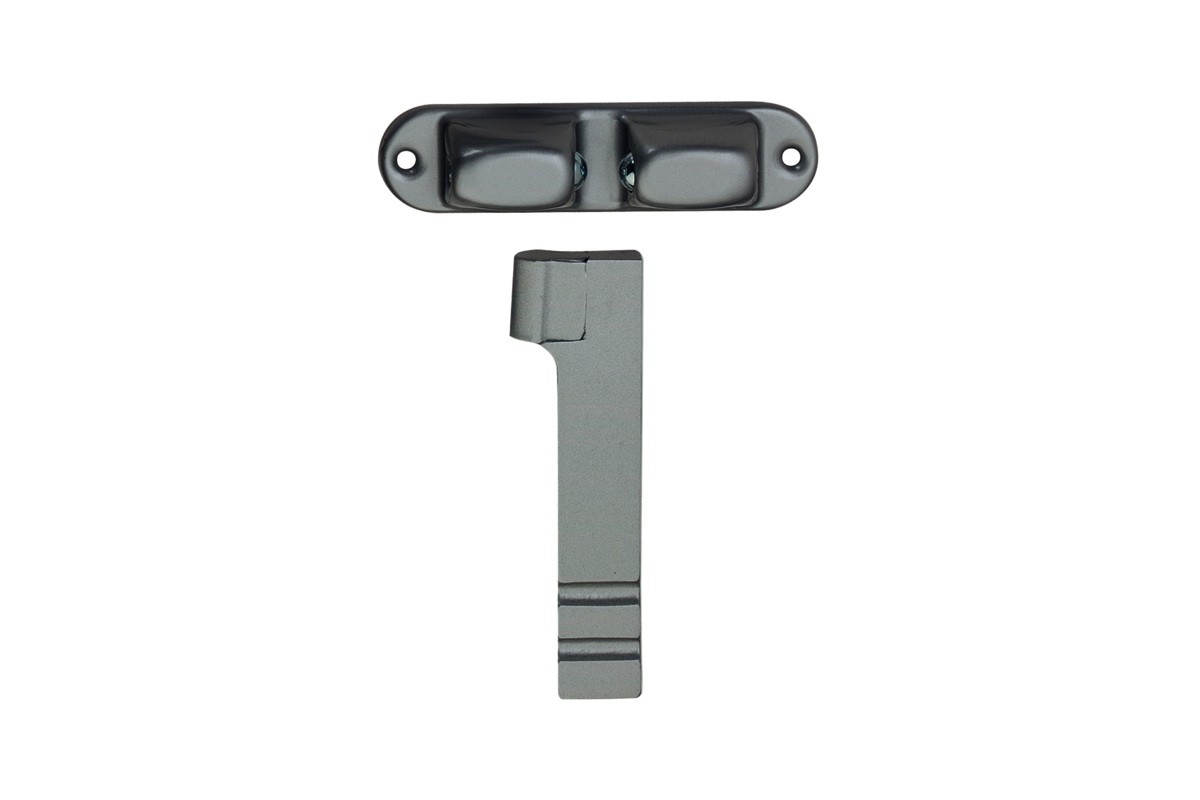

Door holder with roller ball
Material
aluminium
holder:
steel
Mode of operation
free actuation (pushing/pulling)
Pull-off force
80 to 220 N
Door weight
max. 80 kg
Unit weight
0,210 kg
To hold the door in place, push it against the floor block until the holder is engaged. To release the door, pull it off the block.
Mount the door holder on the door at the furthest possible distance from the door hinge. Insert the block into the floor at the corresponding position.
A horizontal fixing of the holder on the door ensures correct operation if the door is subsequently raised or lowered.
With adjusting screws, the roller ball pressure can be regulated.
