KWS 1047..

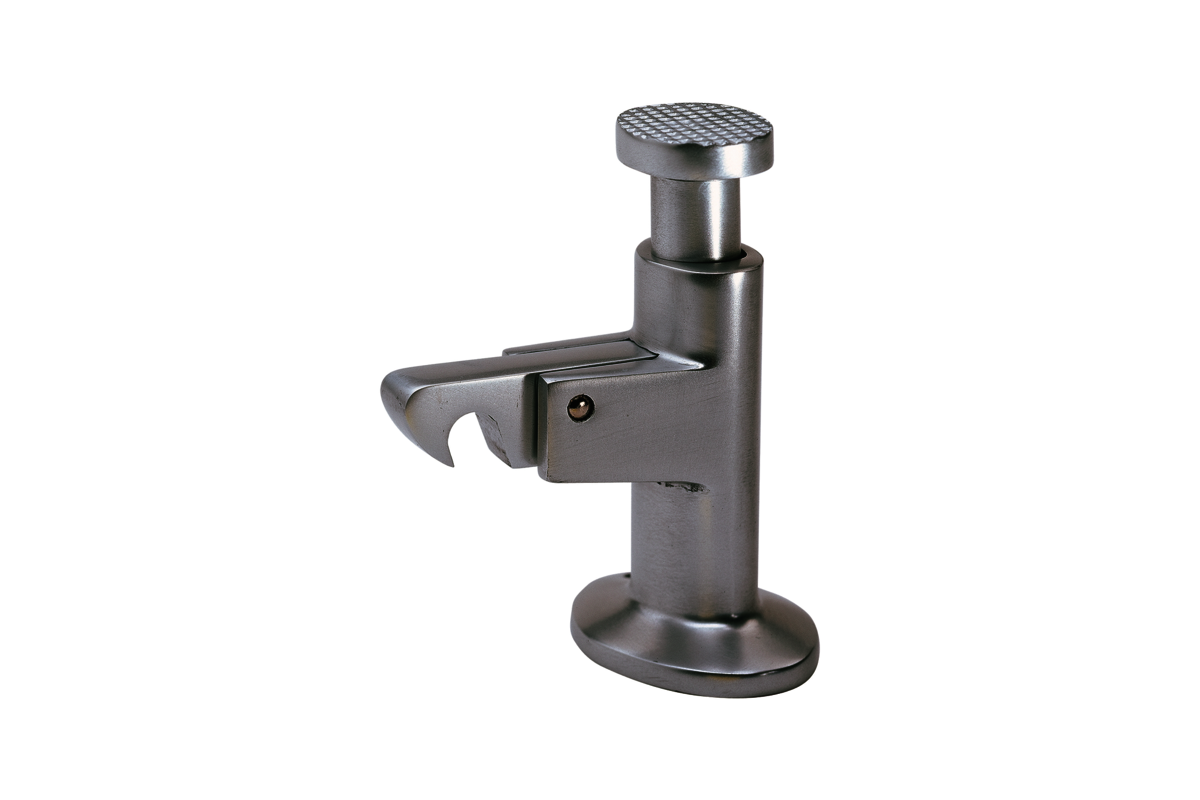

Door holder with hook and actuating button
Material
aluminium

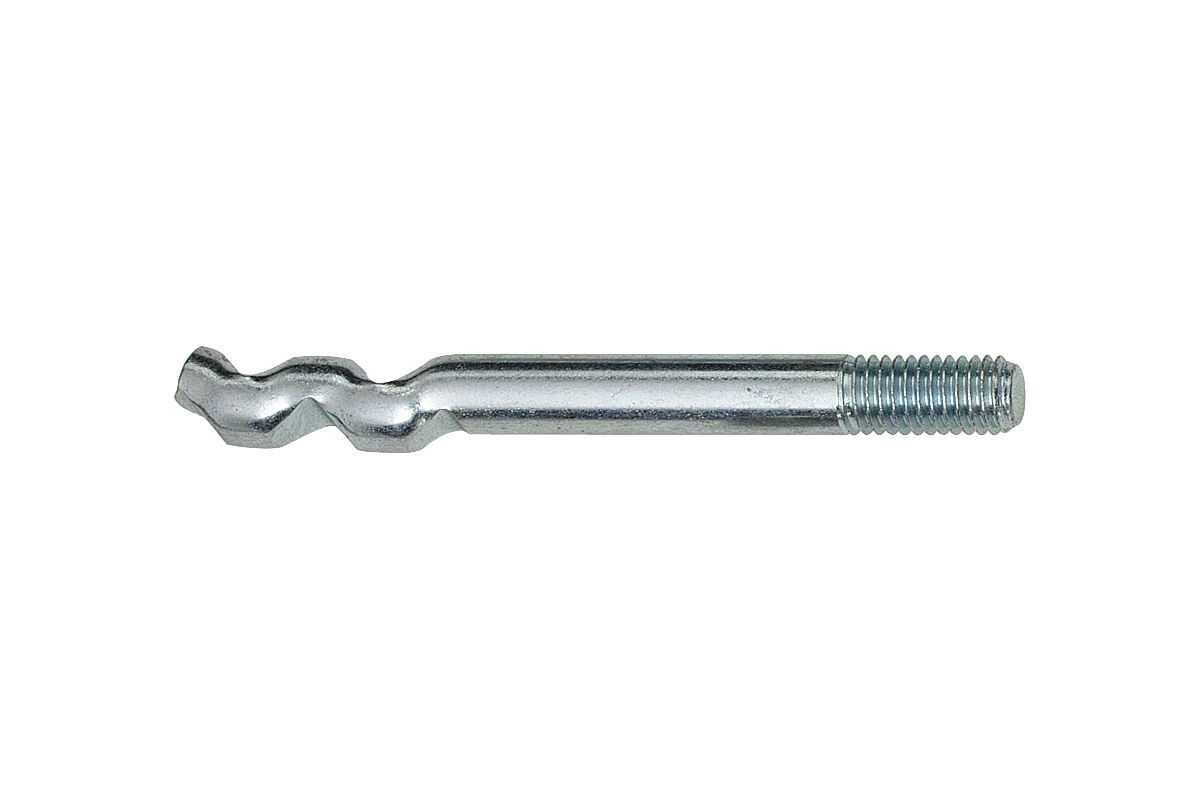

anchor bolt:
steel, hot-galvanized
roller block:
steel or stainless steel
Mode of operation
foot actuation
Door weight
max. 40 kg
Unit weight
0,300 kg
To hold the door in place, push it against the holder until the hook is engaged on the roller block. Pressing the actuating button while simultaneously pressing the door against the holder disengages the holding mode.
Grout the anchor bolt at the desired arresting point into the floor, which should be the furthest possible distance from the door hinge. Then, insert a plug that fits the countersunk screw hole of the door holder, screw the door holder on the protruding thread of the anchor bolt and secure it against turning with a screw. Fix the roller block to the door at the corresponding position.
