KWS 1027..
Door holder with throw
Material
aluminium
housing:
aluminium
bolt:
steel, galvanized or stainless steel

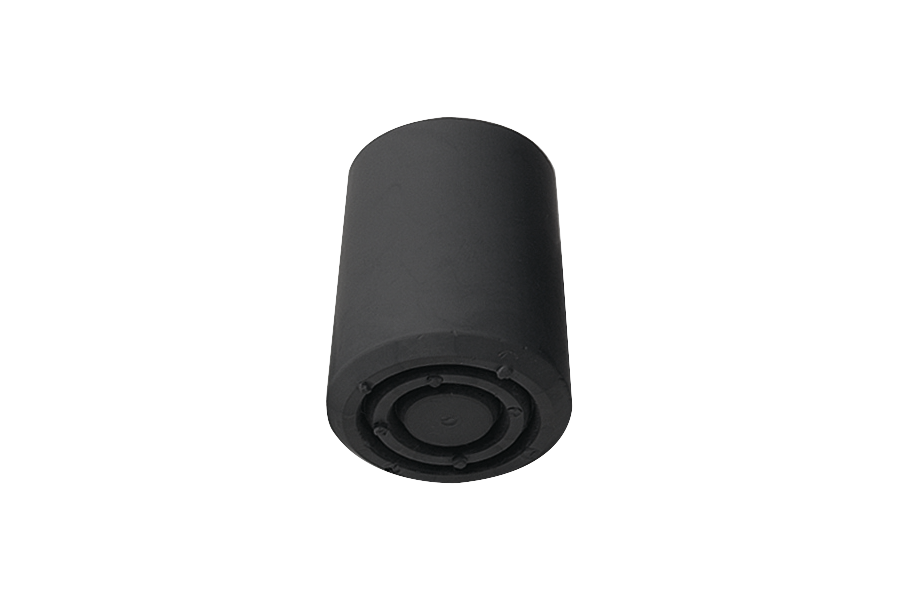

foot:
rubber, black
Mode of operation
foot actuation
Door weight
max. 40 kg
Throw
30 mm (KWS 1027.. / 1089..)
50 mm (KWS 1029.. / 1093..)
Unit weight
0,290 kg (KWS 1027.. / 1089..)
0,310 kg (KWS 1029.. / 1093..)
The door can be held open at any angle.
To hold the door in place, push down the bolt until the foot is being pressed firmly on the floor. Pushing the check plate gently releases the door.
The default hub spring improves the contact pressure applied to the floor.
Mount the door holder on the door with three screws at the furthest possible distance from the door hinge. The distance from the bottom edge of the door to the foot should be 5 to 10 mm.
