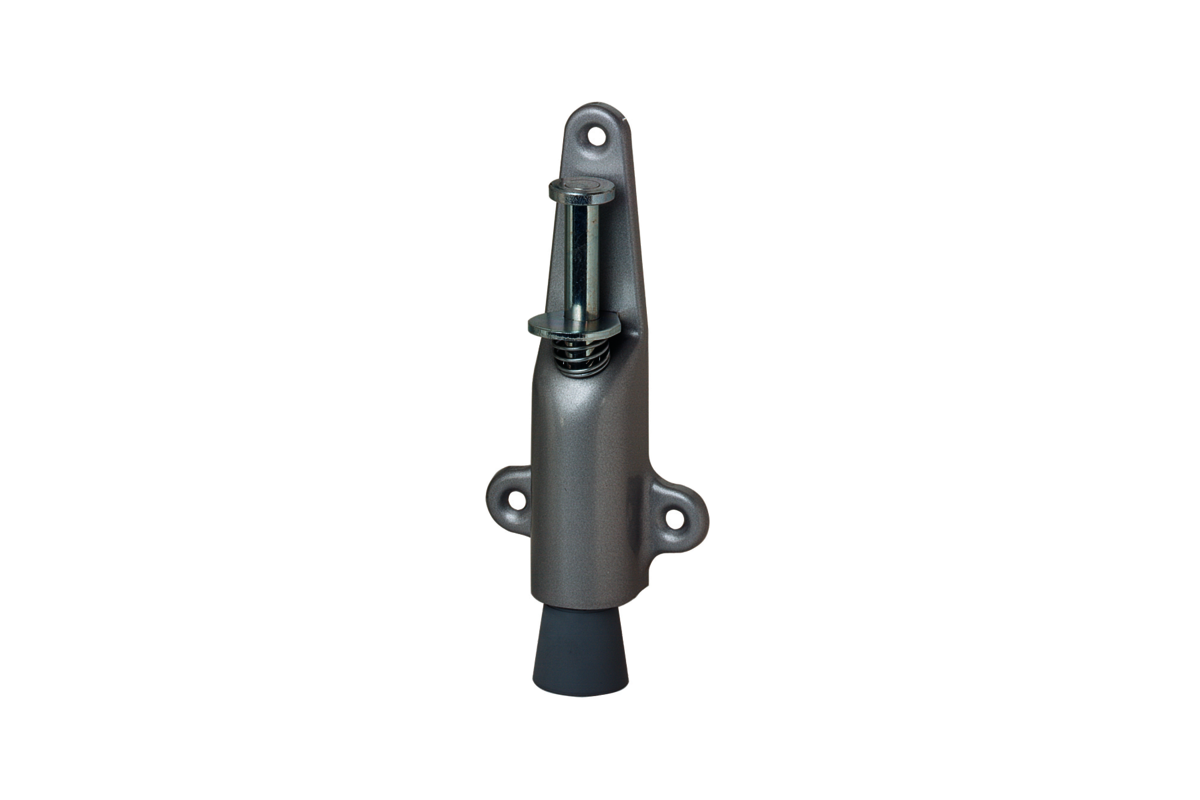

KWS 1024..
Door holder with throw
Material
steel, brass or stainless steel
bolt:
steel, galvanized, brass or stainless steel

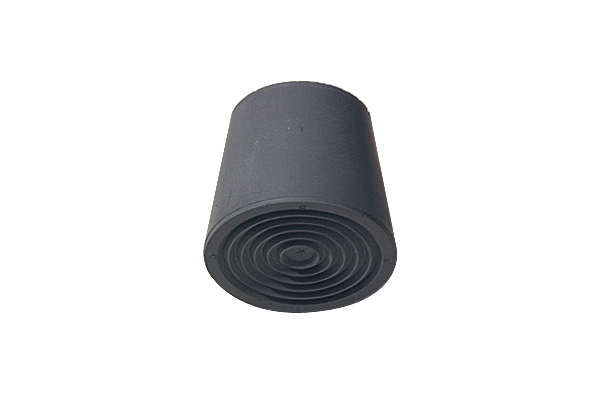

foot:
rubber, grey
Mode of operation
foot actuation
Door weight
max. 25 kg
Throw
25 mm
Unit weight
0,100 kg (steel)
0,100 kg (brass)
0,100 kg (stainless steel)
The door can be held open at any angle.
To hold the door in place, push down the bolt until the foot is being pressed firmly on the floor. Pushing the check plate gently releases the door.
Mount the door holder on the door with three screws at the furthest possible distance from the door hinge. The distance from the bottom edge of the door to the foot should be 5 to 10 mm.
