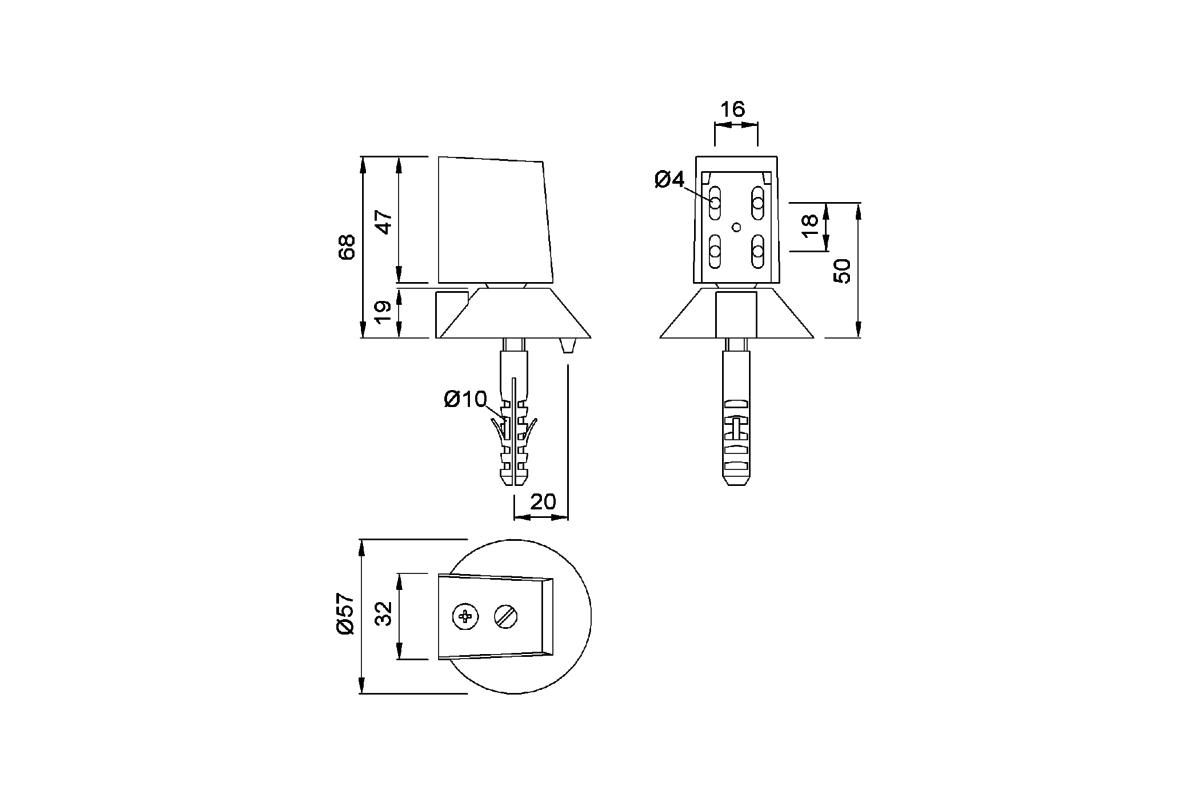

KWS 1023..

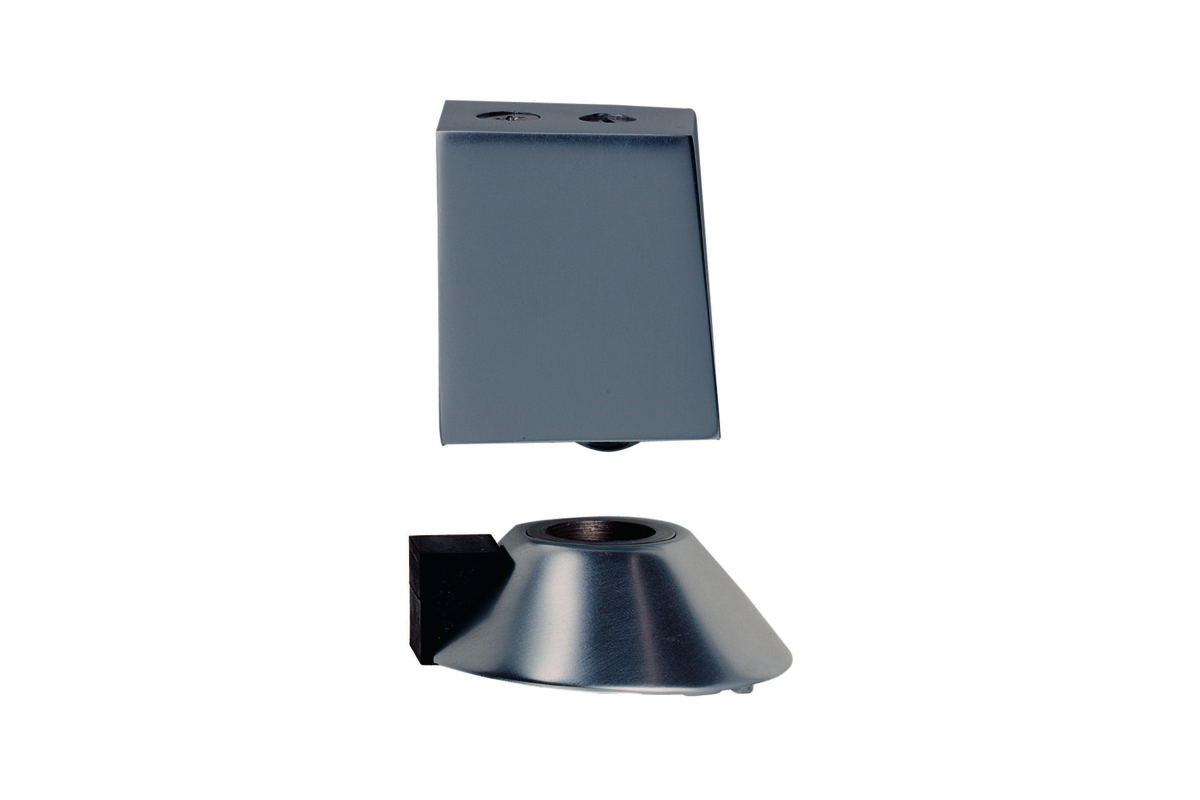

Door holder with roller ball
Material
aluminium or brass
housing of top plate, floor block:
aluminium or brass
other metal parts:
steel, galvanized
buffer
rubber, black
Mode of operation
free actuation (pushing/pulling)
Door weight
max. 40 kg
Unit weight
0,200 kg (aluminium)
0,340 kg (brass)
To hold the door in place, push the holder against the floor block. To release the door, pull it off the block.
Mount the holder mechanism to the door with four screws at the furthest possible distance from the door hinge, put on the housing and secure it with a screw. Screw the floor block onto the floor at the desired arresting point. A pin inserted into the floor prevents the floor block from turning.
If the door is subsequently raised or lowered, the holder can simply be readjusted.
With an adjusting screw, the roller ball pressure can be regulated.
