KWS 1020..

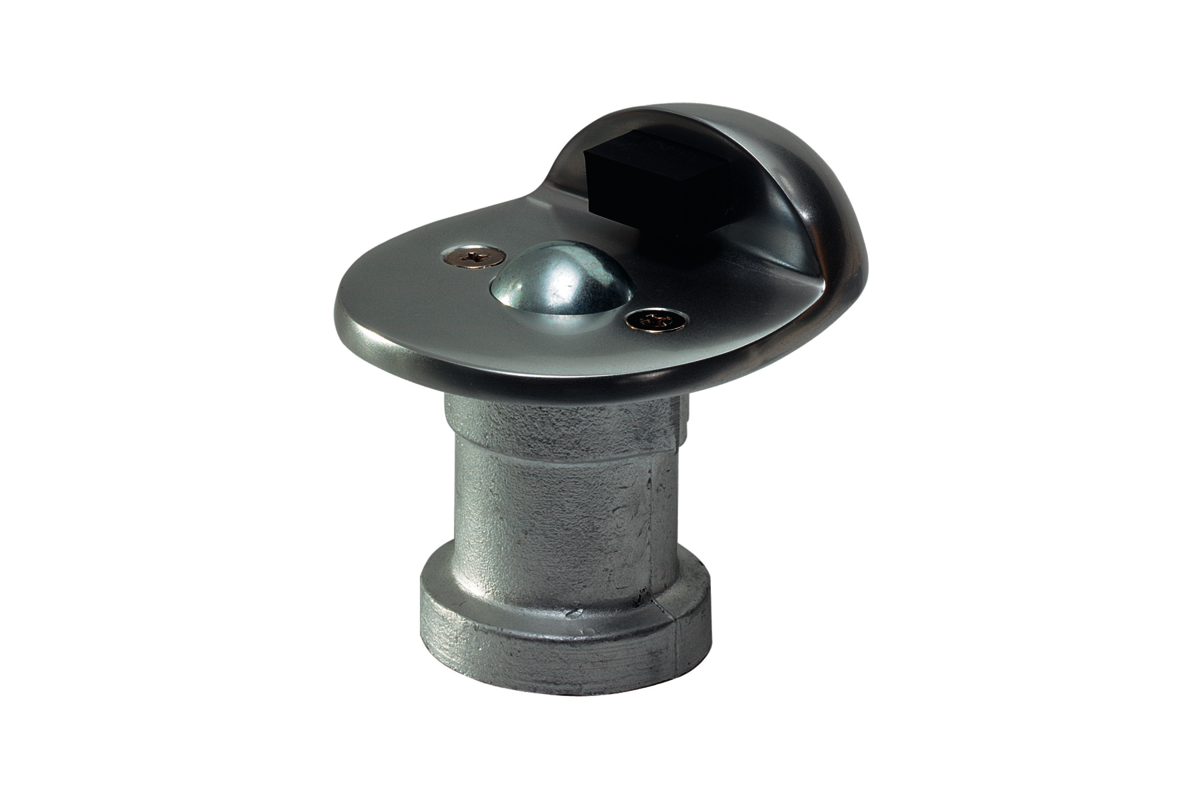

Door holder with roller ball
Material
aluminium
counter plate:
steel, galvanized
buffer:
rubber, black
Mode of operation
free actuation (pushing/pulling)
Door weight
max. 40 kg
Unit weight
0,320 kg
To hold the door in place, move it over the holder part flush-mounted in the floor to the end stop. The roller ball catches and triggers the mechanism. To release the door, pull it off the roller ball.
Grout the floor socket at the desired arresting point into the floor, which should be the furthest possible distance from the door hinge. After the grouting material has hardened, screw the previously removed cover plate back on. Fix the counter plate to the door with four screws at the corresponding position.
