KWS 8718..

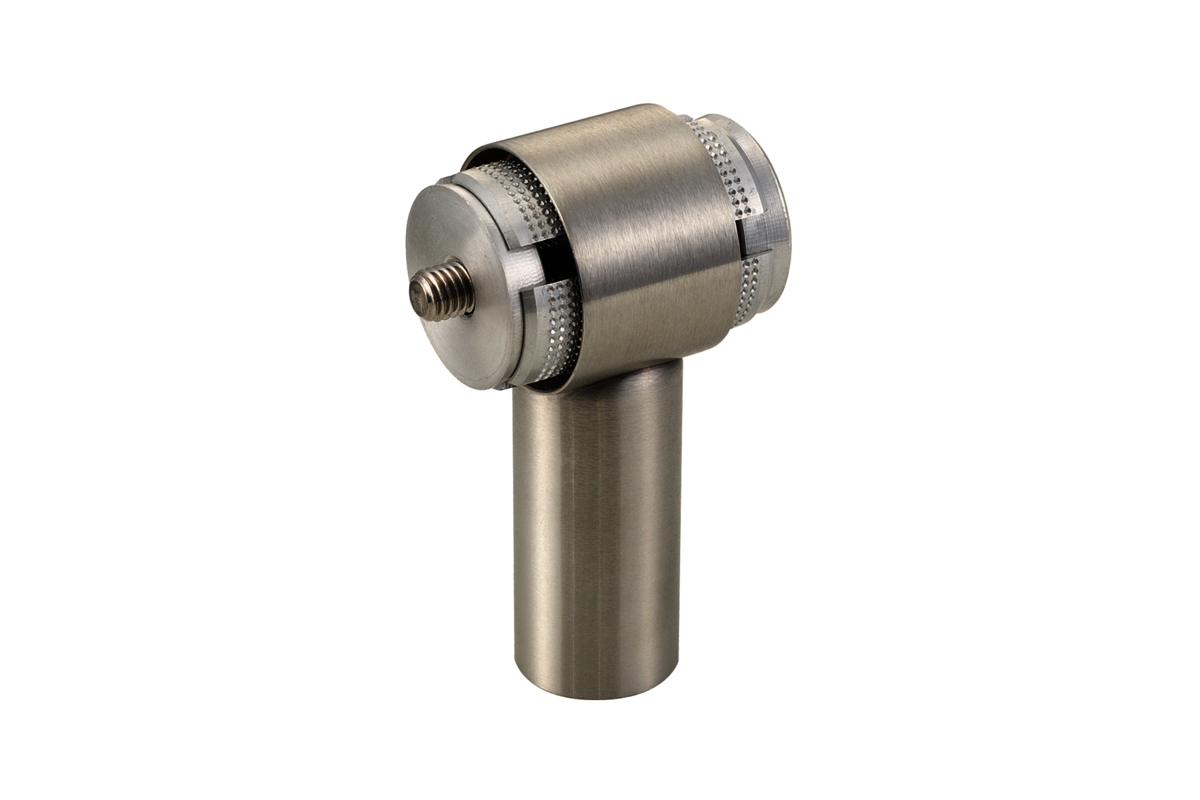

Straight mid support, series RS
- series RS: round support with socket for invisible tube ends
- for concealed fixing
- fastening elements in the handle support
- mounting material available separately
Material
stainless steel
clamping elements:
aluminium
Dimensions (in mm)
| Art. no. | D | H |
| KWS 8718.. | Tube, Ø 30 x 1,5 | 82 |
| KWS 8051.. | Tube, Ø 33,7 x 2 (1 Inch) | 86 |
| KWS 8363.. | Tube, Ø 35 x 1,5 | 87 |
| KWS 8319.. | Tube, Ø 40 x 2 | 92 |
| KWS 8052.. | Tube, Ø 42,4 x 2 (1,25 Inch) | 95 |
| KWS 8H63.. | Timber, Ø 35 | 87 |
| KWS 8H19.. | Timber, Ø 40 | 92 |
