KWS 8717..
Angled end support, series RS
- series RS: round support with socket for invisible tube ends
- angled 45 degrees
- for concealed fixing
- fastening elements in the handle support

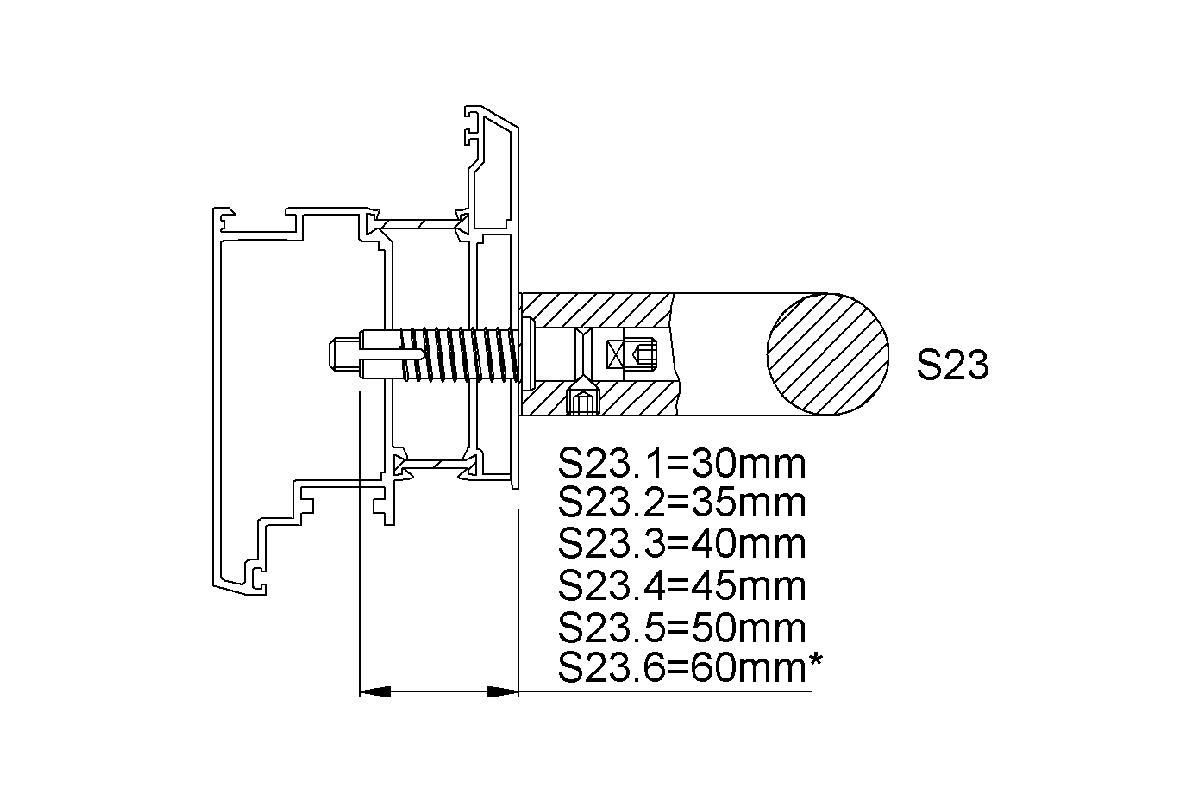

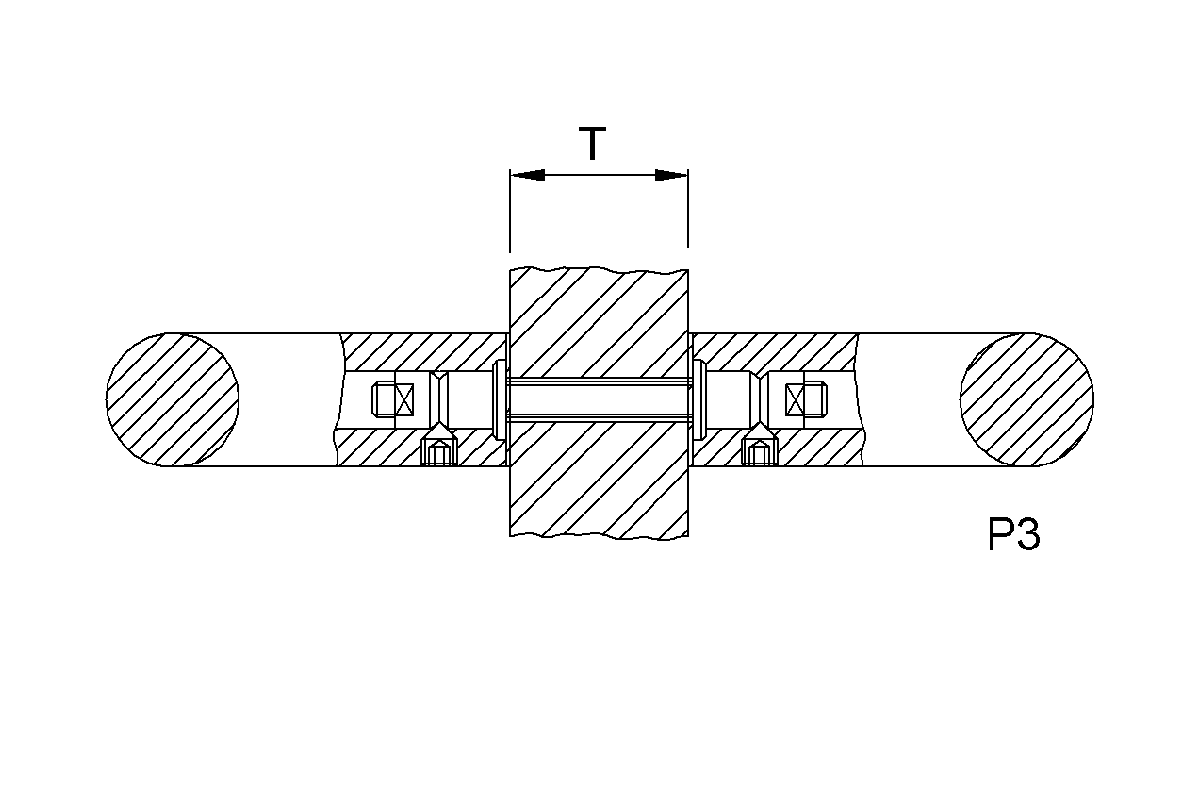

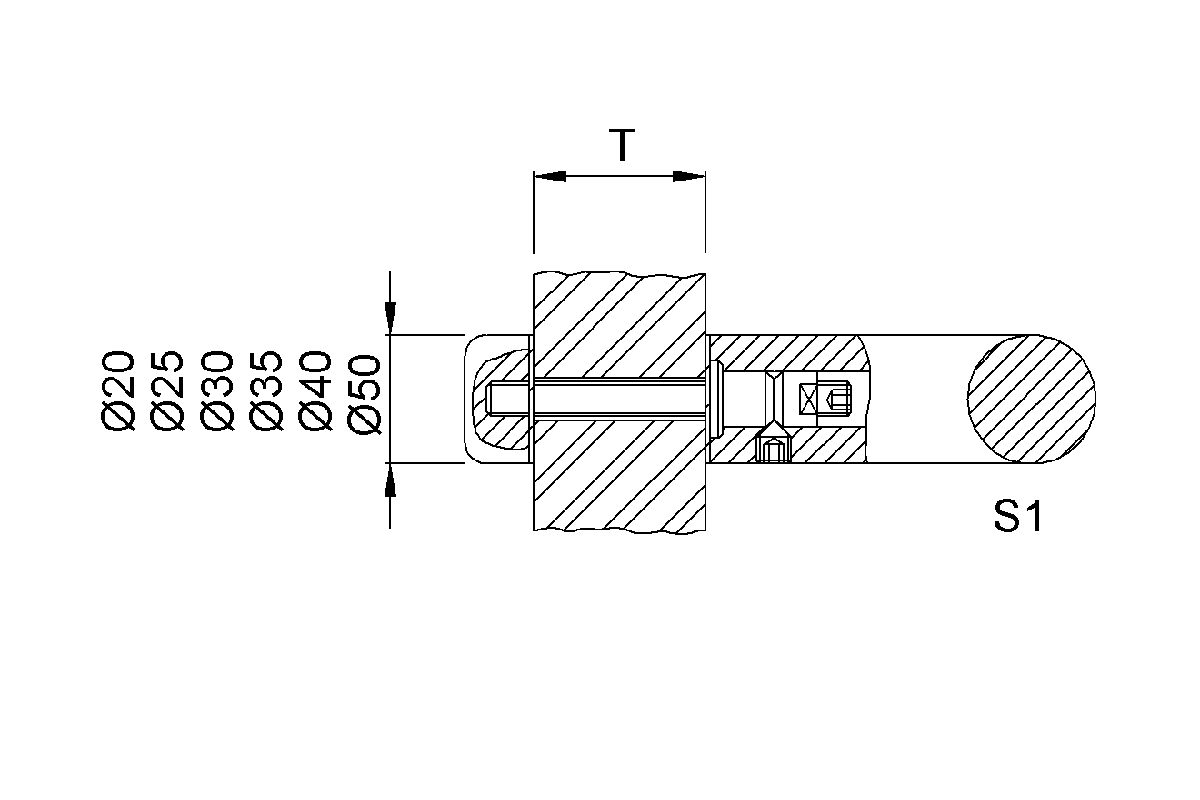

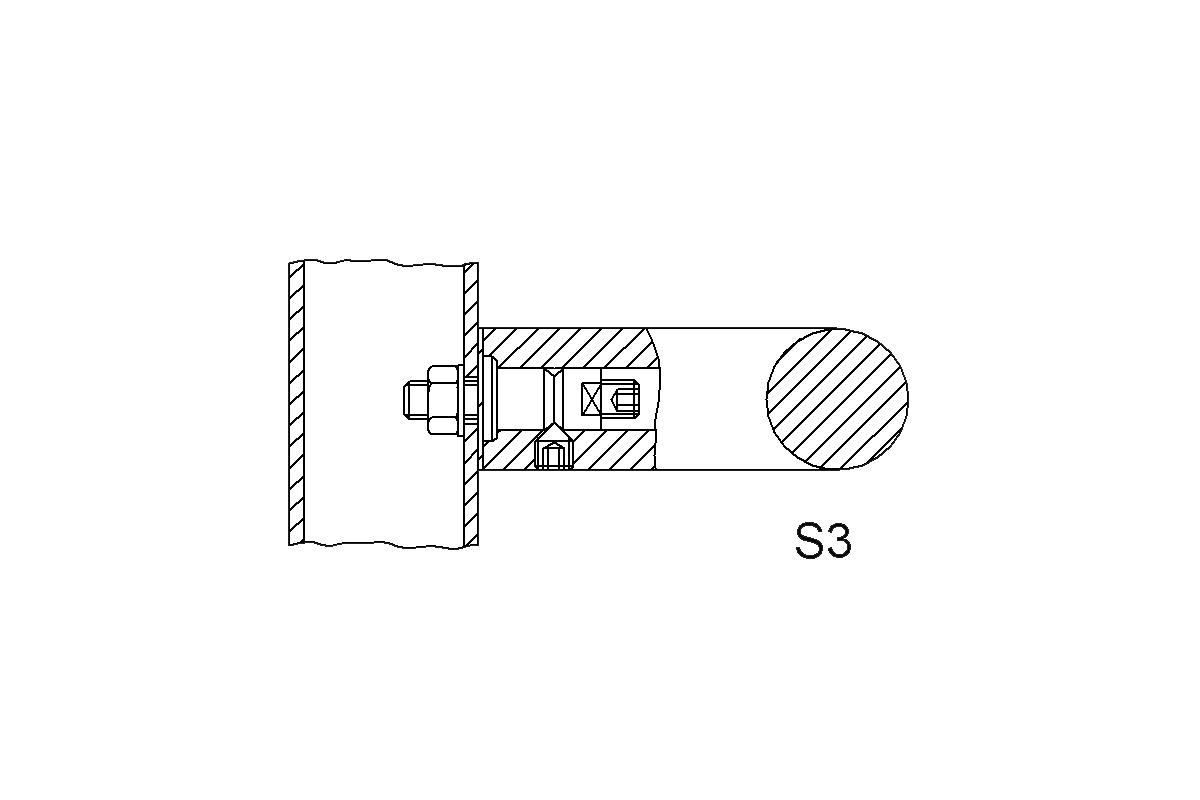

- mounting material available separately
Material
stainless steel
clamping element:
aluminium
Dimensions (in mm)
| Art. no. | D | B | H |
| KWS 8717.. | tube, Ø 30 x 1,5 | 109 | 91 |
| KWS 8049.. | tube, Ø 33,7 x 2 (1 Inch) | 111 | 93 |
| KWS 8362.. | tube, Ø 35 x 1,5 | 112 | 96 |
| KWS 8318.. | tube, Ø 40 x 2 | 114 | 101 |
| KWS 8050.. | tube, Ø 42,4 x 2 (1,25 Inch) | 116 | 103 |
| KWS 8H62.. | timber, Ø 35 | 112 | 96 |
| KWS 8H18.. | timber, Ø 40 | 114 | 101 |
