KWS 8716..

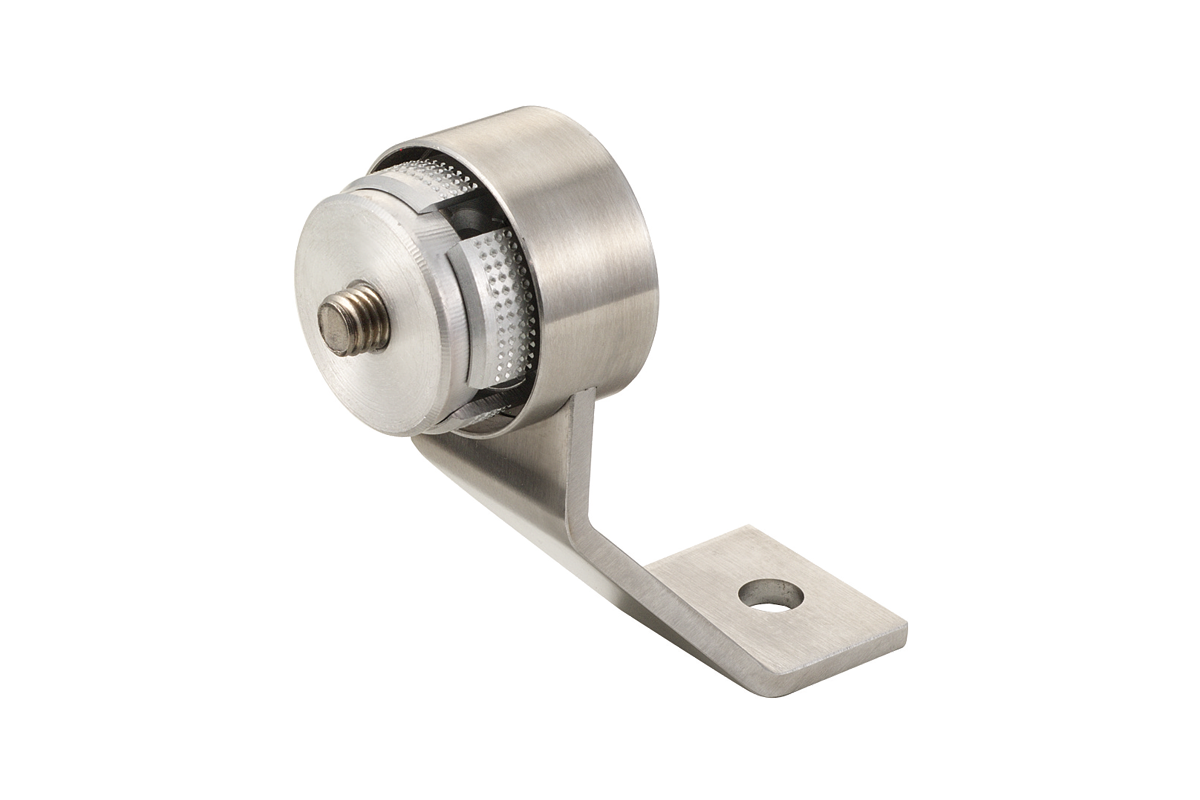

Cranked end support, series WS
- series WS: angular support with socket for invisible tube ends
- for swing doors
- for visible fixing
- fixing material available separately
Material
stainless steel
clamping element:
aluminium
Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8716.. | tube, Ø 30 x 1,5 | 32 | 81 |
| KWS 8044.. | tube, Ø 33,7 x 2 (1 Inch) | 32 | 84 |
| KWS 8396.. | tube, Ø 35 x 1,5 | 32 | 84 |
| KWS 8306.. | tube, Ø 40 x 2 | 42 | 92 |
| KWS 8045.. | tube, Ø 42,4 x 2 (1,25 Inch) | 42 | 92 |
| KWS 8H96.. | timber, Ø 35 | 32 | 84 |
| KWS 8H06.. | timber, Ø 40 | 42 | 92 |
