KWS 8715..

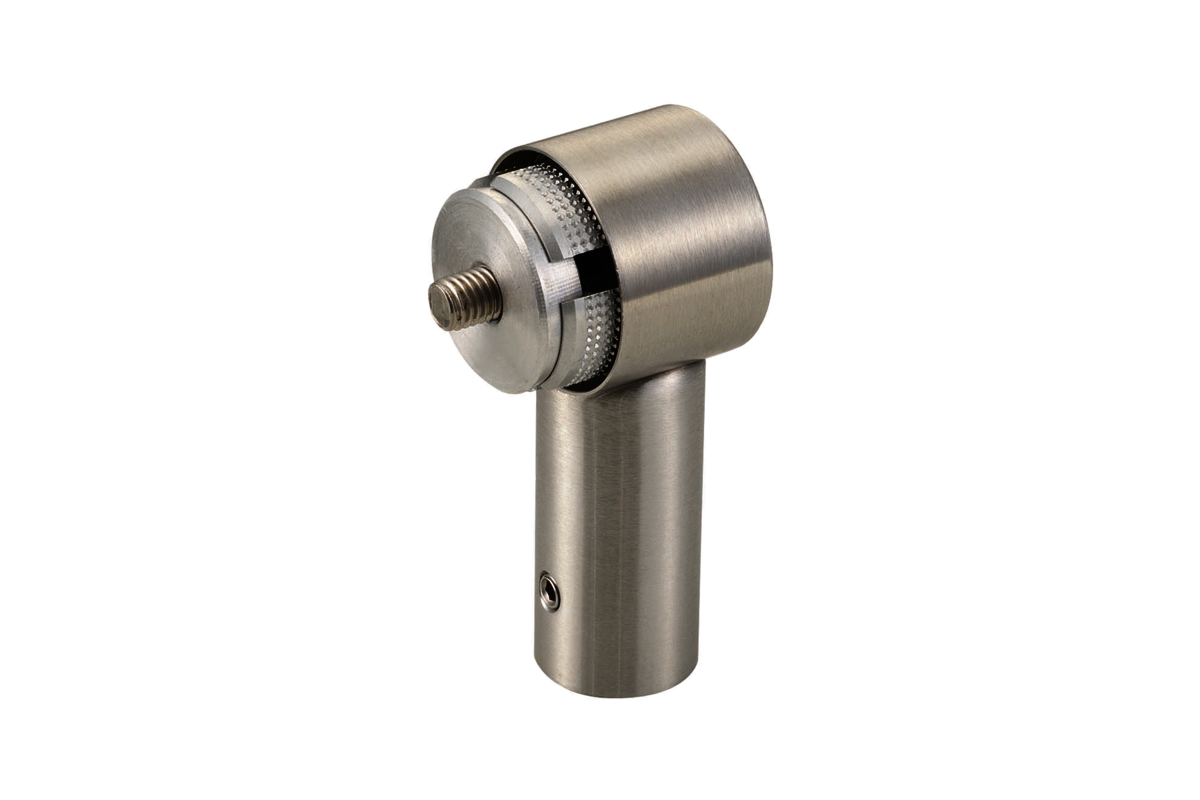

Straight end support, series RS
- series RS: round support with socket for invisible tube ends
- for concealed fixing
- fastening elements in the handle support
- mounting material available separately
Material
stainless steel
clamping element:
aluminium
Dimensions (in mm)
| Art. no. | D | H |
| KWS 8715.. | tube, Ø 30 x 1,5 | 82 |
| KWS 8047.. | tube, Ø 33,7 x 2 (1 Inch) | 86 |
| KWS 8361.. | tube, Ø 35 x 1,5 | 87 |
| KWS 8317.. | tube, Ø 40 x 2 | 92 |
| KWS 8048.. | tube, Ø 42,4 x 2 (1,25 Inch) | 95 |
| KWS 8046.. | tube, Ø 42,4 x 3,2 | 95 |
| KWS 8H61.. | timber, Ø 35 | 87 |
| KWS 8H17.. | timber, Ø 40 | 92 |
