KWS 8713..

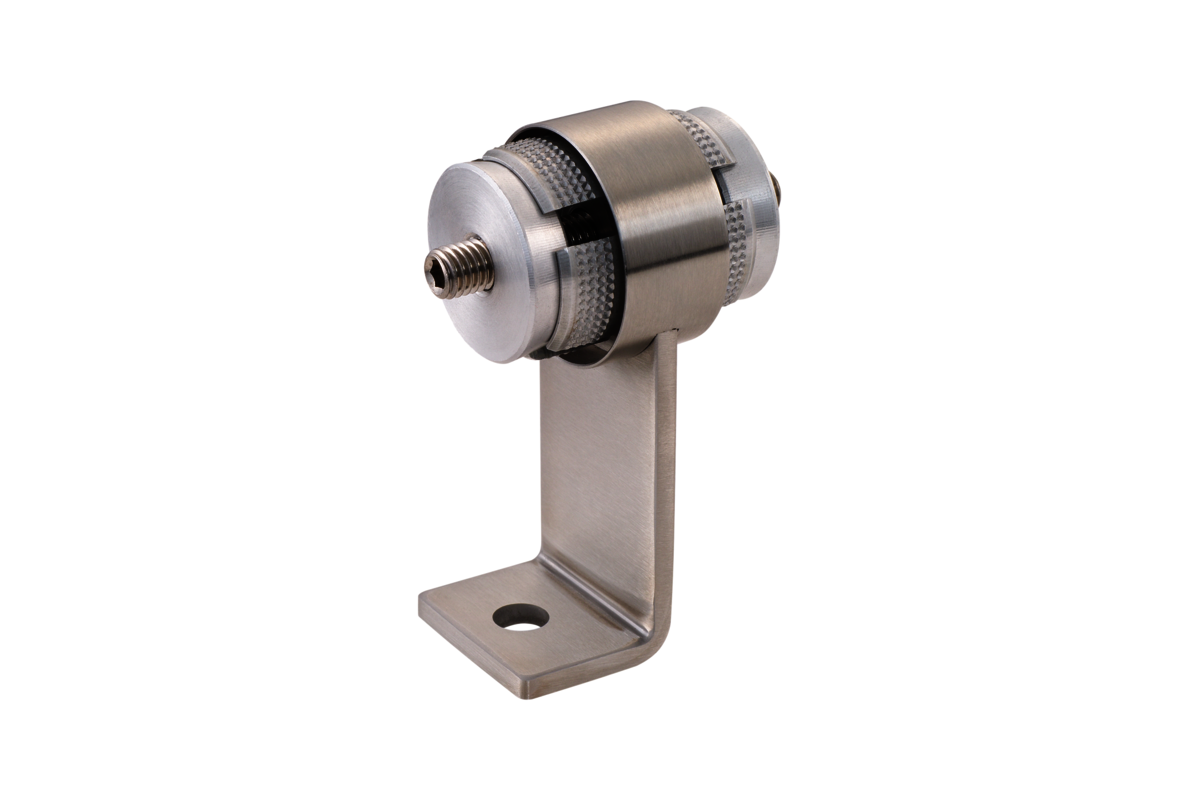

Straight mid support, series WS
- for visible fixing
- mounting material available separately
Material
stainless steel
clamping elements:
aluminium

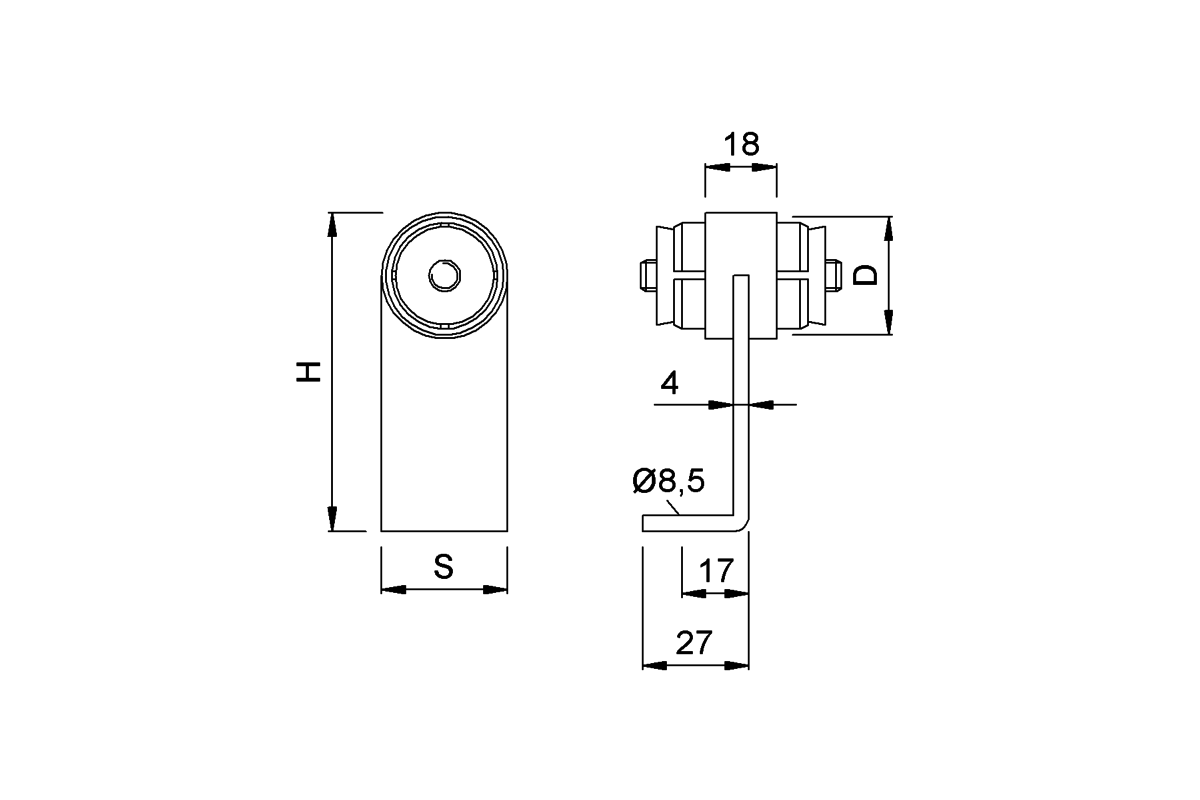

Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8713.. | tube, Ø 30 x 1,5 | 32 | 81 |
| KWS 8038.. | tube, Ø 33,7 x 2 (1 Inch) | 32 | 84 |
| KWS 8393.. | tube, Ø 35 x 1,5 | 32 | 84 |
| KWS 8303.. | tube, Ø 40 x 2 | 42 | 92 |
| KWS 8039.. | tube, Ø 42,4 x 2 (1,25 Inch) | 42 | 92 |
| KWS 8H93.. | timber, Ø 35 | 32 | 84 |
| KWS 8H03.. | timber, Ø 40 | 42 | 92 |
