KWS 8712..
Offset end support, series WS
- series WS: angular support with socket for invisible tube ends
- for visible fixing
- mounting material available separately
Material
stainless steel
clamping element:
aluminium

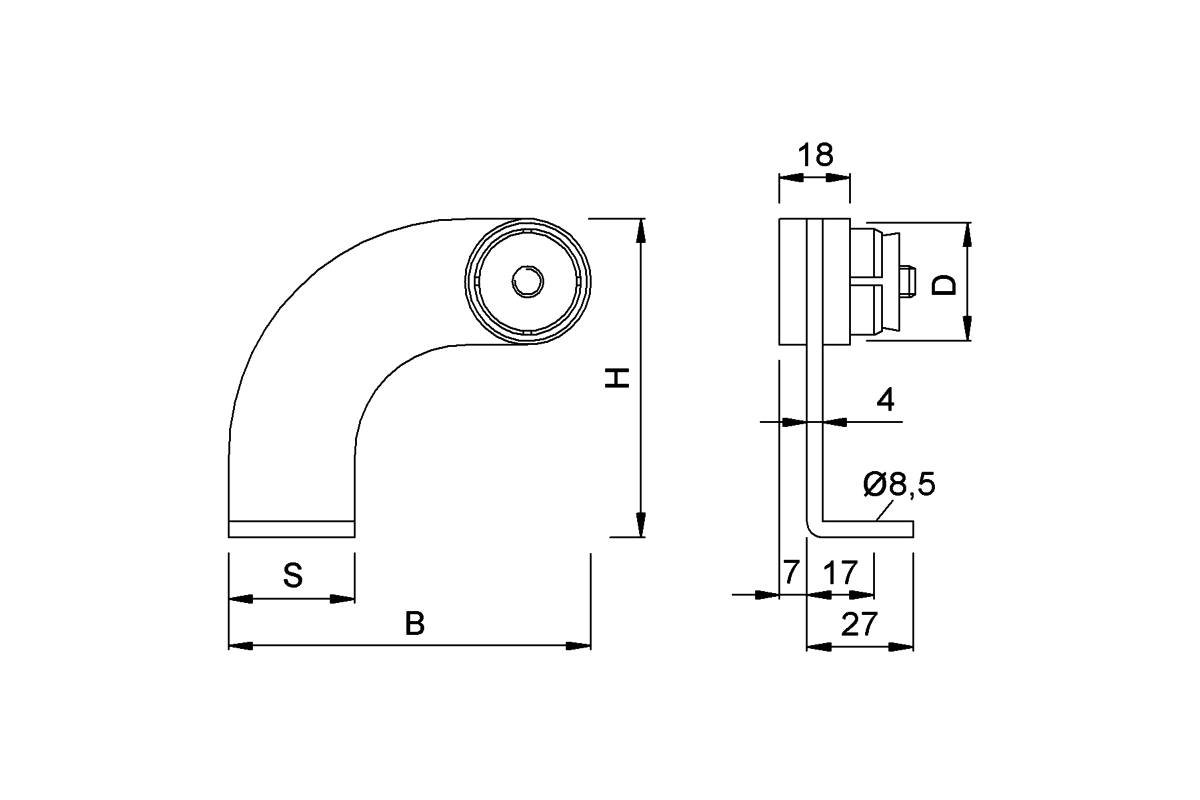

Dimensions (in mm)
| Art. no. | D | B | S | H |
| KWS 8712.. | tube, Ø 30 x 1,5 | 92 | 32 | 81 |
| KWS 8035.. | tube, Ø 33,7 x 2 (1 Inch) | 94 | 32 | 84 |
| KWS 8392.. | tube, Ø 35 x 1,5 | 94 | 32 | 84 |
| KWS 8302.. | tube, Ø 40 x 2 | 113 | 42 | 92 |
| KWS 8036.. | tube, Ø 42,4 x 2 (1,25 Inch) | 113 | 42 | 92 |
| KWS 8H92.. | timber, Ø 35 | 94 | 32 | 84 |
| KWS 8H02.. | timber, Ø 40 | 113 | 42 | 92 |
