KWS 8711..

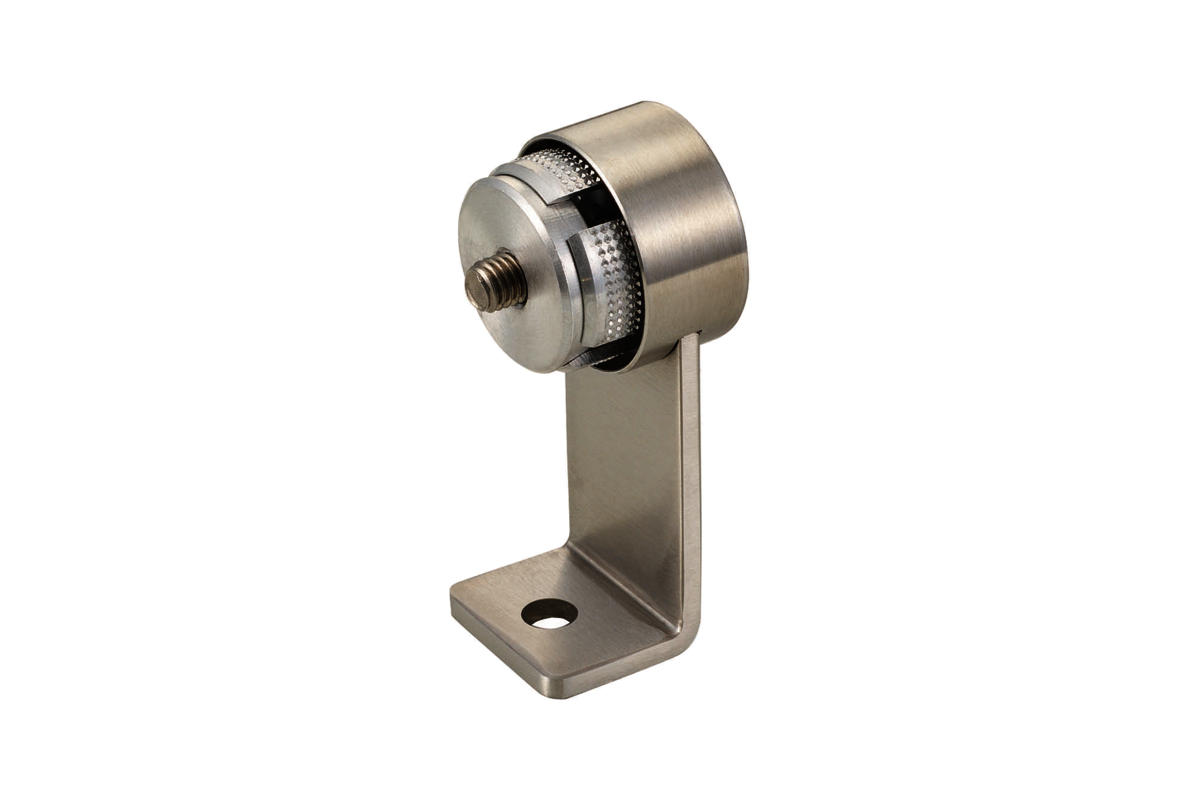

Straight end support, series WS
- series WS: angular support with socket for invisible tube ends
- for visible fixing

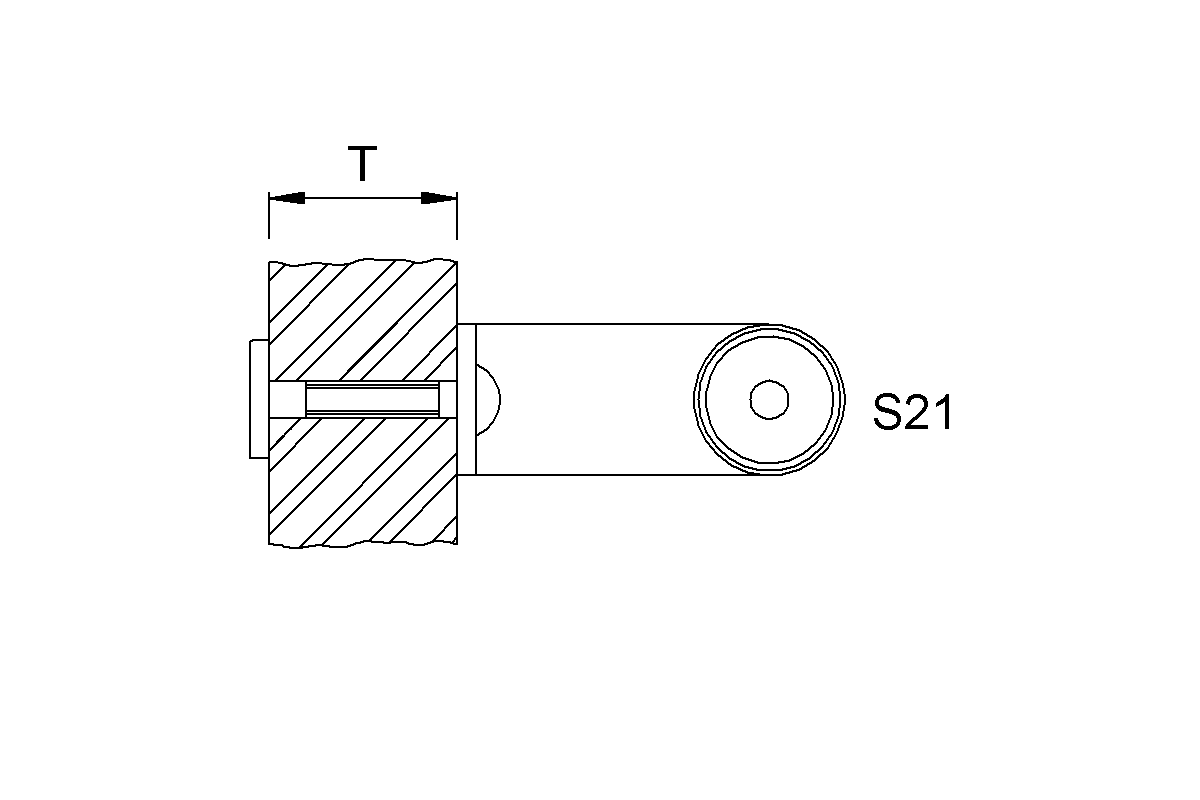

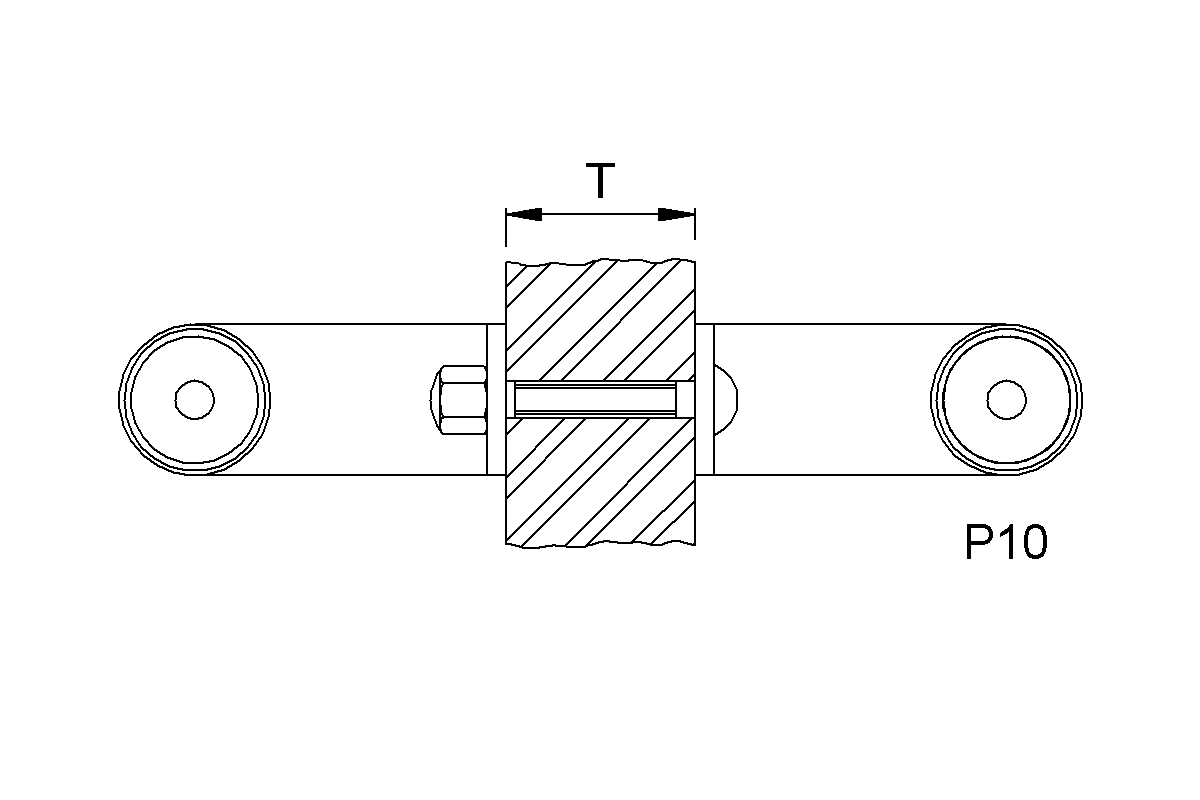

- mounting material available separately
Material
stainless steel
clamping element:
aluminium

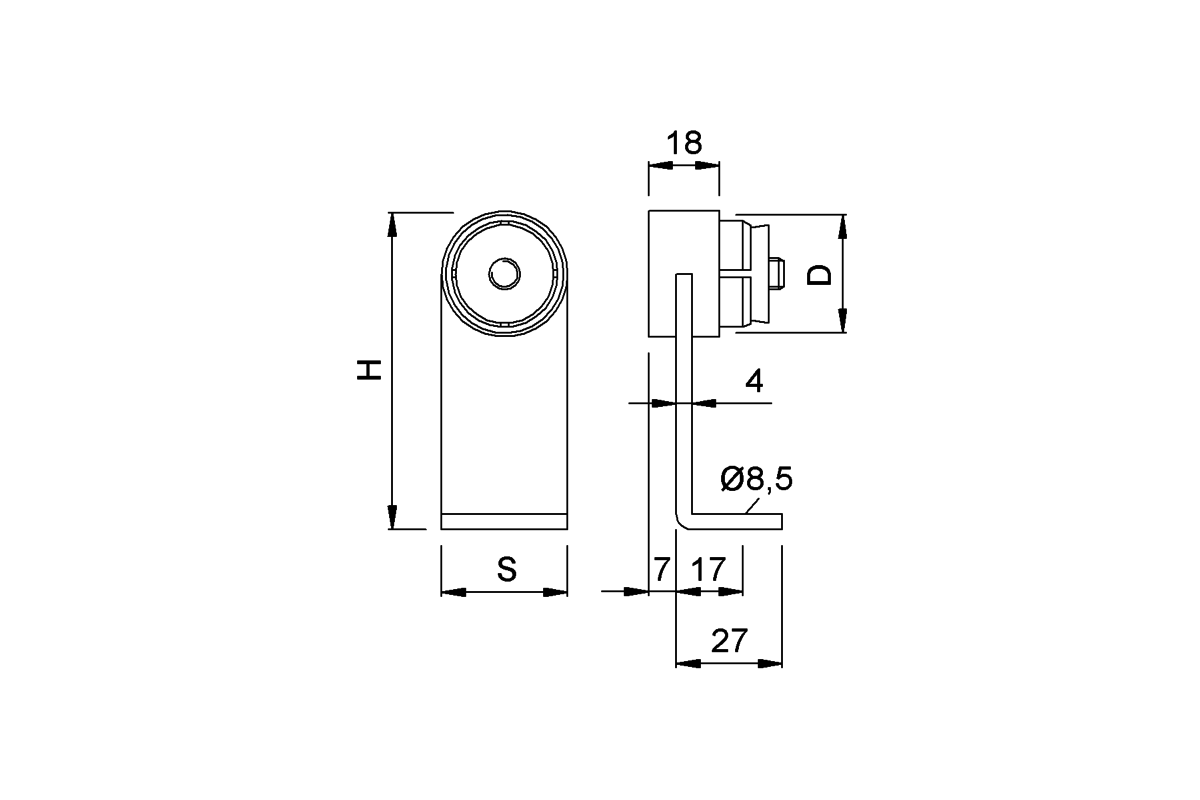

Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8711.. | tube, Ø 30 x 1,5 | 32 | 81 |
| KWS 8032.. | tube, Ø 33,7 x 2 (1 Inch) | 32 | 84 |
| KWS 8391.. | tube, Ø 35 x 1,5 | 32 | 84 |
| KWS 8301.. | tube, Ø 40 x 2 | 42 | 92 |
| KWS 8033.. | tube, Ø 42,4 x 2 (1,25 Inch) | 42 | 92 |
| KWS 8031.. | tube, Ø 42,4 x 3,2 | 42 | 92 |
| KWS 8H91.. | timber, Ø 35 | 32 | 84 |
| KWS 8H01.. | timber, Ø 40 | 42 | 92 |
