KWS 8709..

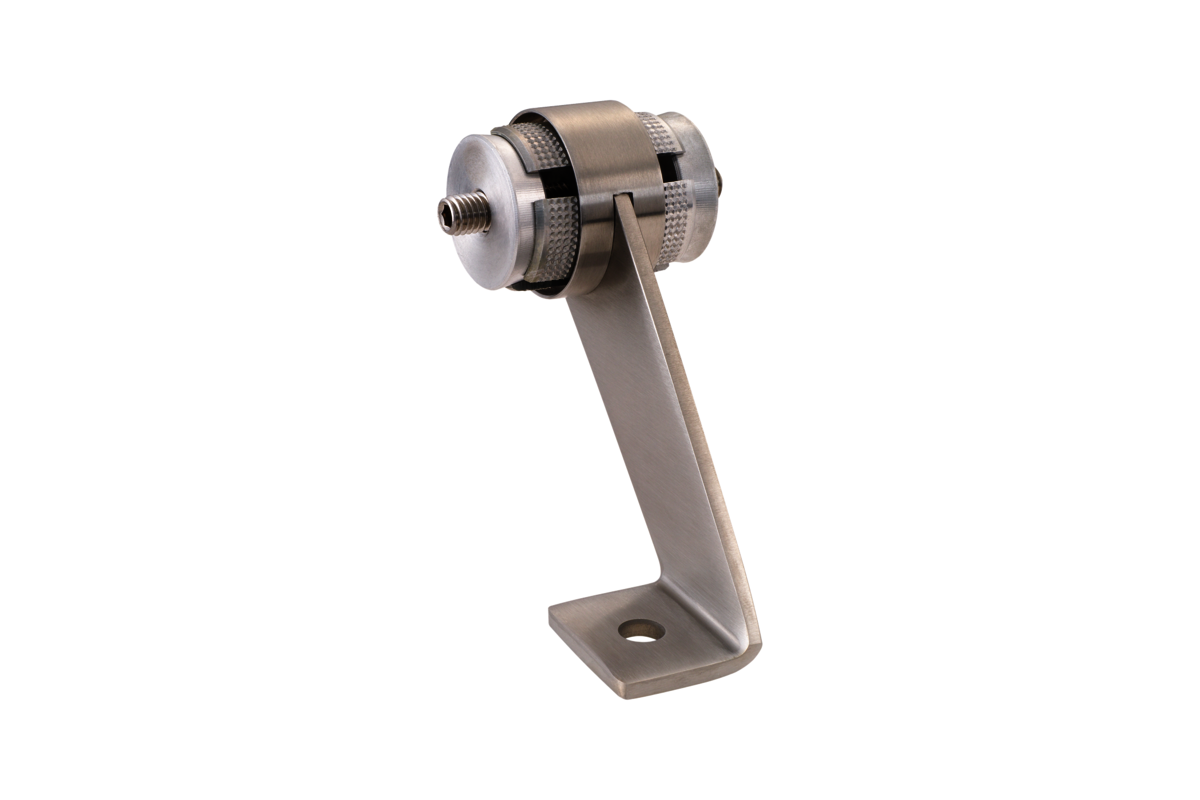

Angled mid support, series WS
- series WS: angular support with socket for invisible tube ends
- angled 45 degrees
- for visible fixing
- mounting material available separately
Material
stainless steel
clamping elements:
aluminium
Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8709.. | tube, Ø 30 x 1,5 | 32 | 81 |
| KWS 8018.. | tube, Ø 33,7 x 2 (1 Inch) | 32 | 84 |
| KWS 8347.. | tube, Ø 35 x 1,5 | 32 | 84 |
| KWS 8H08.. | timber, Ø 35 | 32 | 84 |
