KWS End support 8703 in finish 35 (aluminium, stainless steel effect anodised), direction leftProduct drawing KWS End support 8703
✕

KWS 8703..

Angled end support, series KS

Back to overview

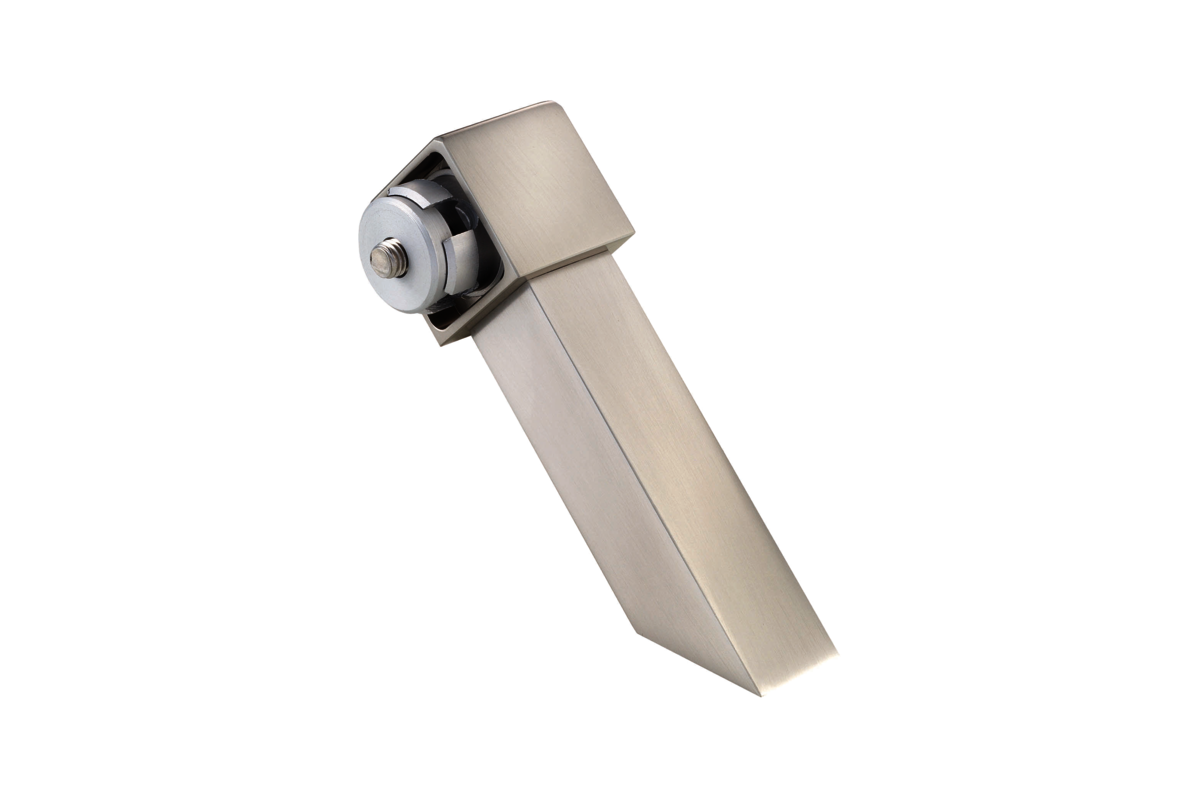

KWS End support 8703 in finish 35 (aluminium, stainless steel effect anodised), direction left
Picture shows KWS 8703.35.00000 (direction left)

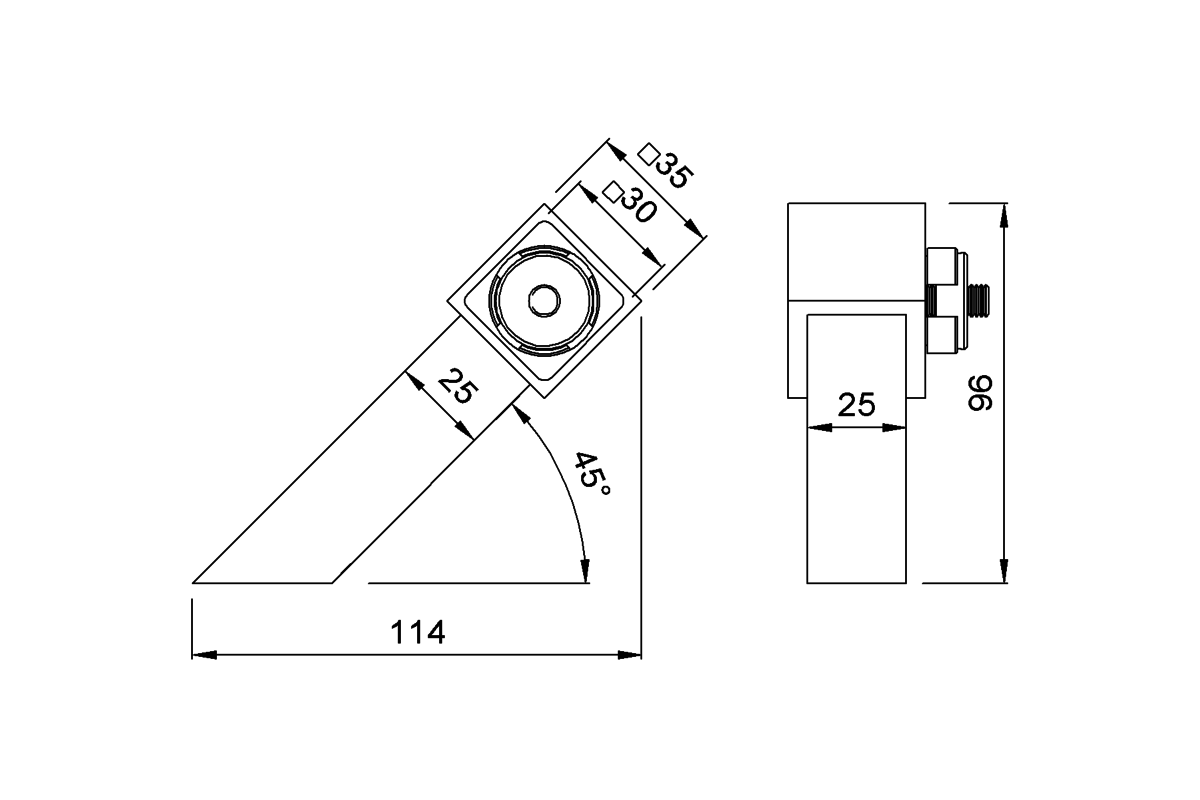

Product drawing KWS End support 8703
Drawing shows KWS 8703..

Do you have questions regarding the product?
We are happy to advise you!

Configure product

Please make a new selection.
Please make a new selection.
Please make a new selection.

Article number

KWS 8703.35.000008703.35.00000273
Please correct all errors and fill in all fields.
Please enter a quantity.
piece(s)

Downloads

  • Product information

    KWS 8703..
    Angled end support, series KS

    • series KS: edged support with socket for invisible tube ends
    • angled 45 degrees
    • for concealed fixing
    • fastening elements in the handle support
    • mounting material available separately


    Material
    aluminium


    Dimensions (in mm)

    HandleBH
    30 x 30 x 211496
