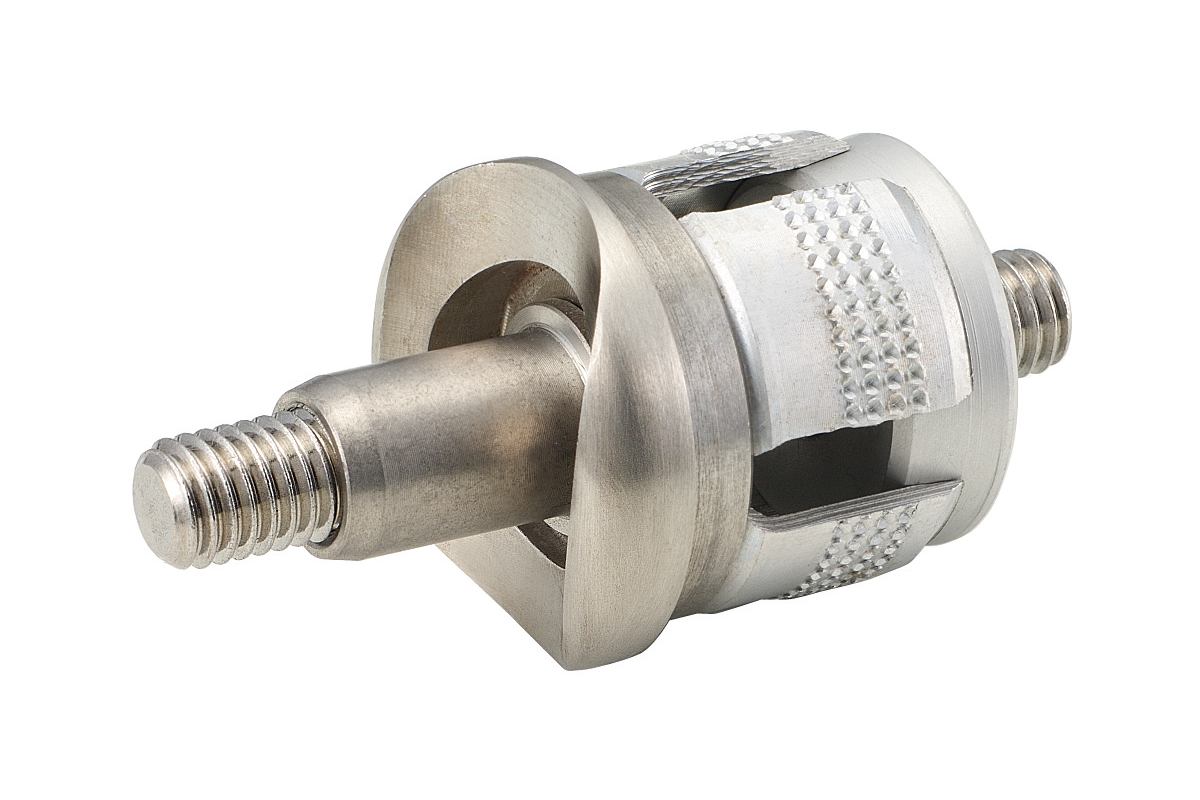

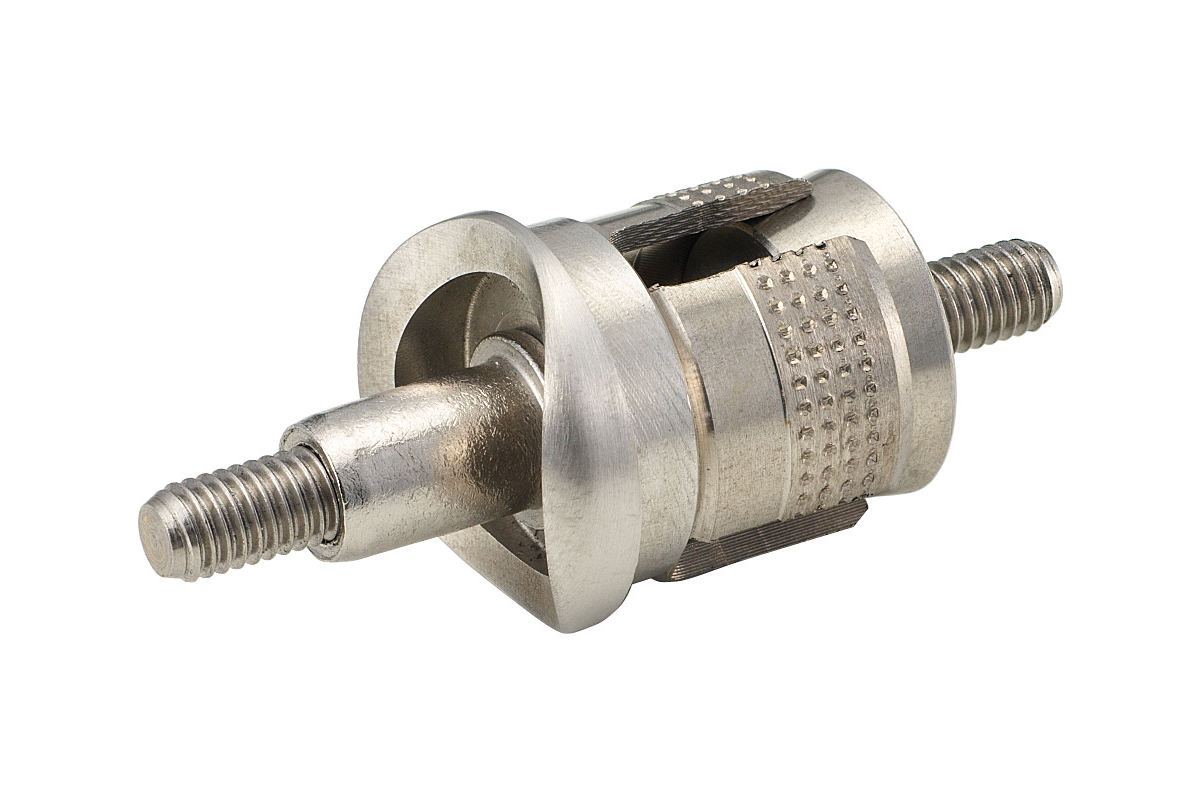

KWS 81G2..
Mitre joint
- for T and cross joints
- with rivet nut
Material
stainless steel

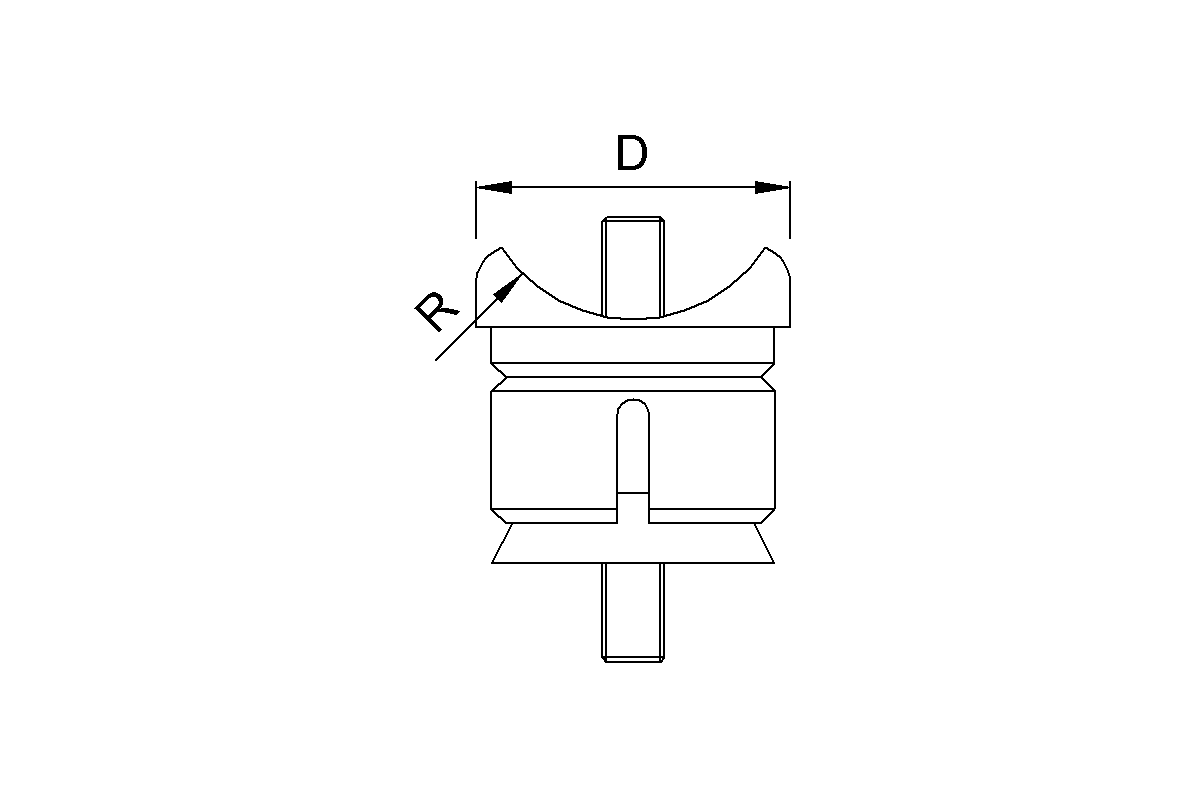

Dimension (in mm)
| Art. no. | mounting | rest |
| KWS 81G2.. | Ø 25 x 1,5 | Ø 30 x 1,5 |
| KWS 81G3.. | Ø 25 x 1,5 | Ø 35 x 1,5 |
| KWS 82G2.. | Ø 30 x 1,5 | Ø 30 x 1,5 |
| KWS 82G3.. | Ø 30 x 1,5 | Ø 35 x 1,5 |
| KWS 82G4.. | Ø 30 x 1,5 | Ø 40 x 2 |
| KWS 83G3.. | Ø 35 x 1,5 | Ø 35 x 1,5 |
| KWS 83G4.. | Ø 35 x 1,5 | Ø 40 x 2 |
| KWS 84G4.. | Ø 40 x 1,5 | Ø 40 x 2 |
