KWS 8164..

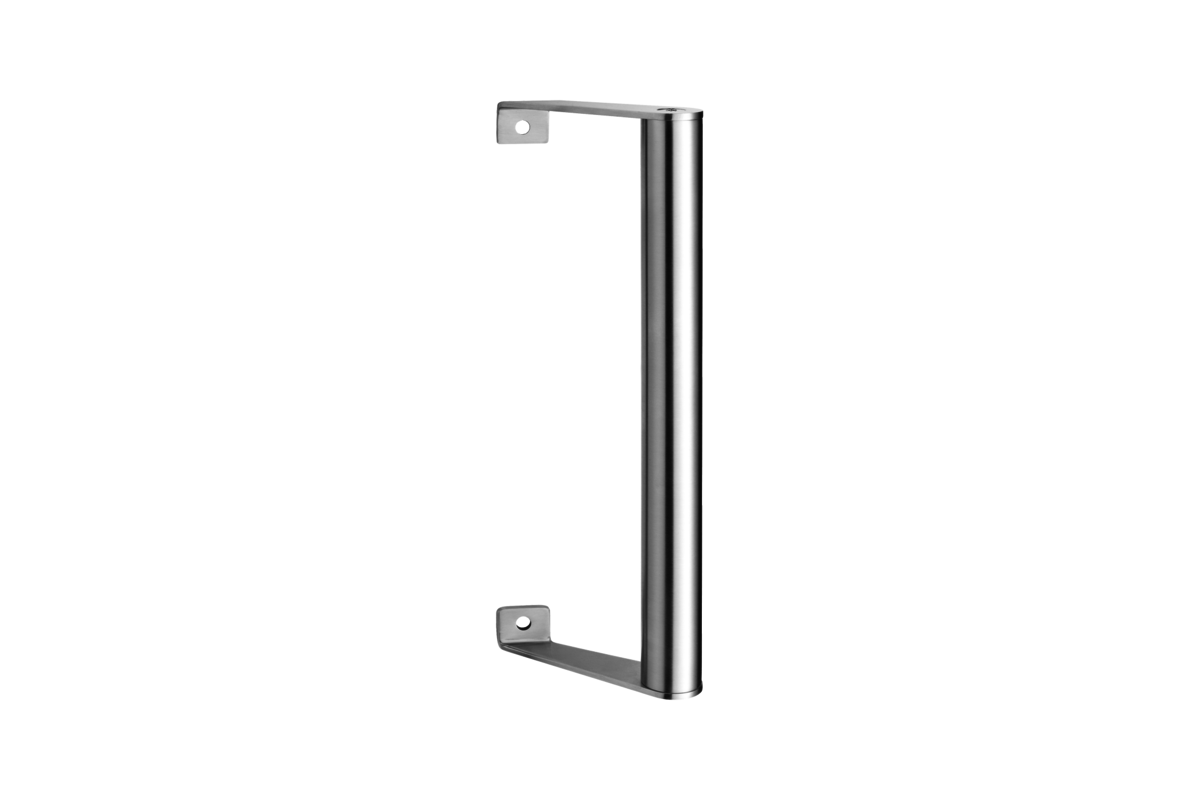

Door handle with angled end supports, series WS2 / WS4
- series WS2 / WS4: angular support with socket for visible tube ends
- with tubular handle and 40 degree angled end supports
- for visible fixing
- mounting material available separately
Material
stainless steel, V2A (series WS2) or V4A (series WS4)
clamping elements:
aluminium
Dimensions (in mm)
(special lengths also available on request*)
| Art. no. | D | GL | L | S | H |
| KWS 8164.. | tube, Ø 30 x 1,5 | L plus 34 | 200 to 1.800 | 32 | 83 |
| KWS 8388.. | tube, Ø 35 x 1,5 | L plus 34 | 200 to 2.200 | 36 | 85,5 |
*available with mid support or reinforcement profile (for KWS 8388..)
