KWS 8123..

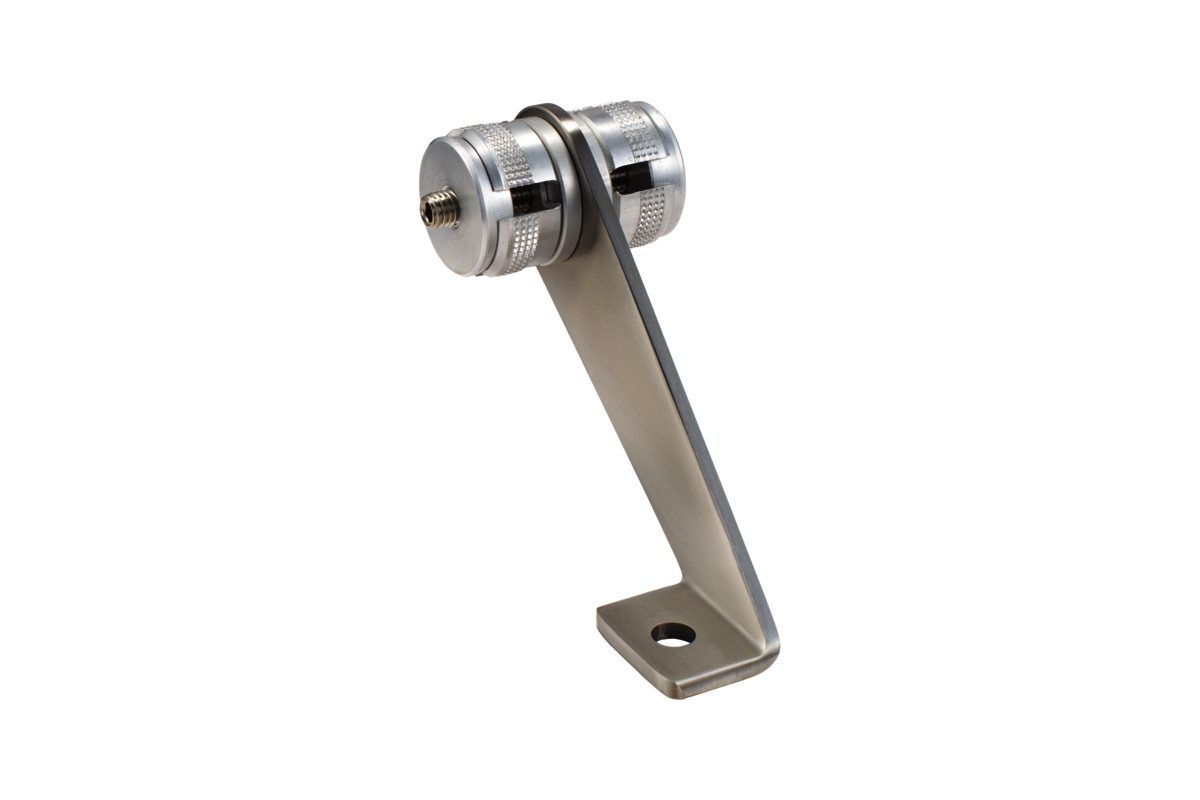

Angled mid support, series WS2 / WS4
- series WS2 / WS4: angular support with socket for visible tube ends
- angled 40 degrees
- for visible fixing
- mounting material available separately
Material
stainless steel, V2A (series WS2) or V4A (series WS4)
clamping elements:
aluminium

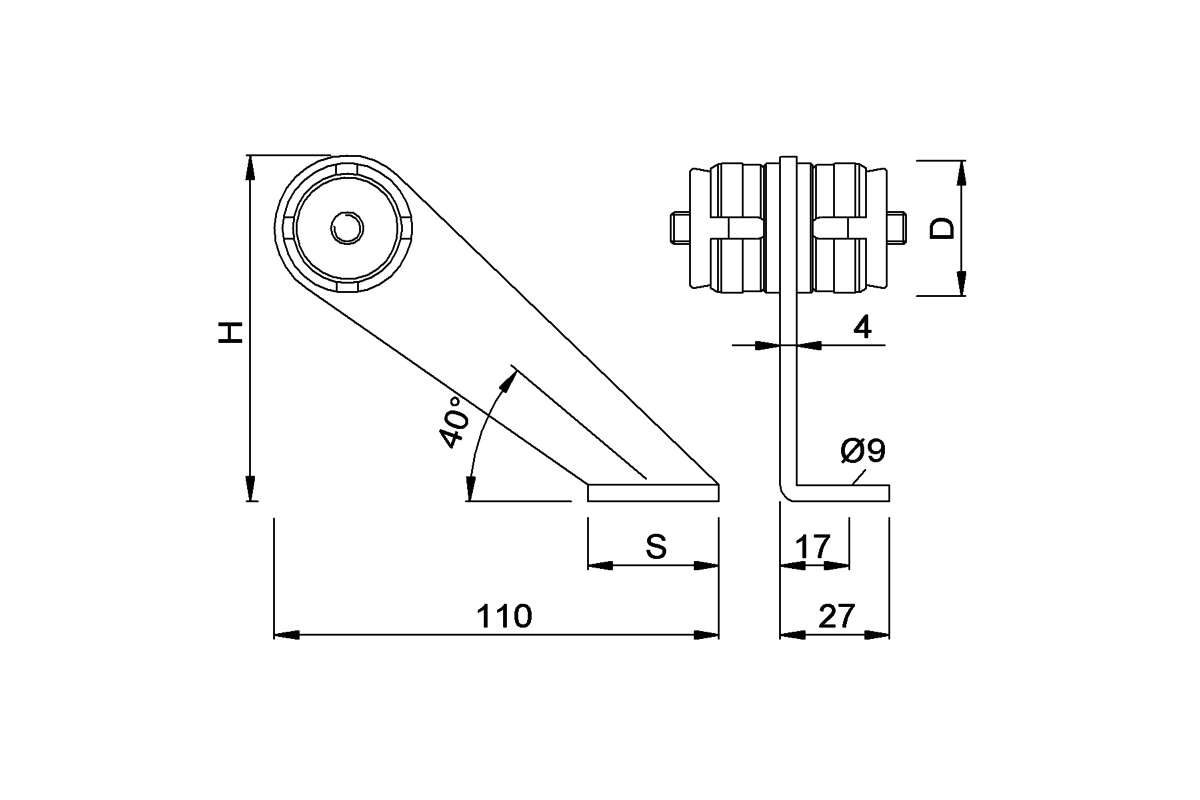

Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8123.. | tube, Ø 30 x 1,5 | 32 | 83 |
| KWS 8255.. | tube, Ø 33,7 x 2 (1 Inch) | 32 | 85,5 |
| KWS 8371.. | tube, Ø 35 x 1,5 | 32 | 85,5 |
| KWS 8H71.. | timber, Ø 35 | 32 | 85,5 |
