KWS 8120..
Straight end support, series WS2 / WS4
- series WS2 / WS4: angular support with socket for visible tube ends
- for visible fixing
- mounting material available separately
Material
stainless steel, V2A (series WS2) or V4A (series WS4)
clamping element:
aluminium

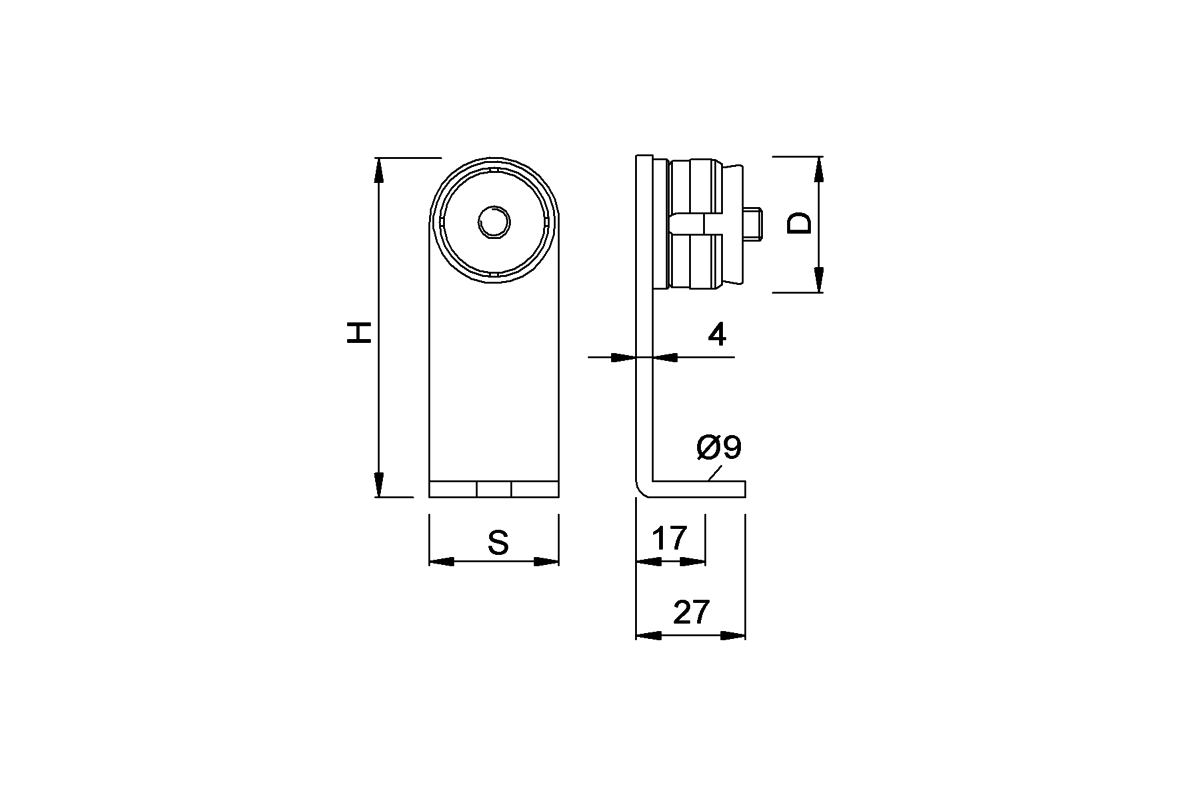

Dimensions (in mm)
| Art. no. | D | S | H |
| KWS 8120.. | tube, Ø 30 x 1,5 | 31 | 83 |
| KWS 8295.. | tube, Ø 33,7 x 2 (1 Inch) | 36 | 85,5 |
| KWS 8395.. | tube, Ø 35 x 1,5 | 36 | 85,5 |
| KWS 8495.. | tube, Ø 40 x 2 | 41 | 90,5 |
| KWS 8595.. | tube, Ø 42,4 x 2 (1,25 Inch) | 43 | 91,5 |
| KWS 8596.. | tube, Ø 42,4 x 3,2 | 43 | 91,5 |
| KWS 8H95.. | timber, Ø 35 | 36 | 85,5 |
| KWS 8H05.. | timber, Ø 40 | 41 | 90,5 |
