KWS 8021..

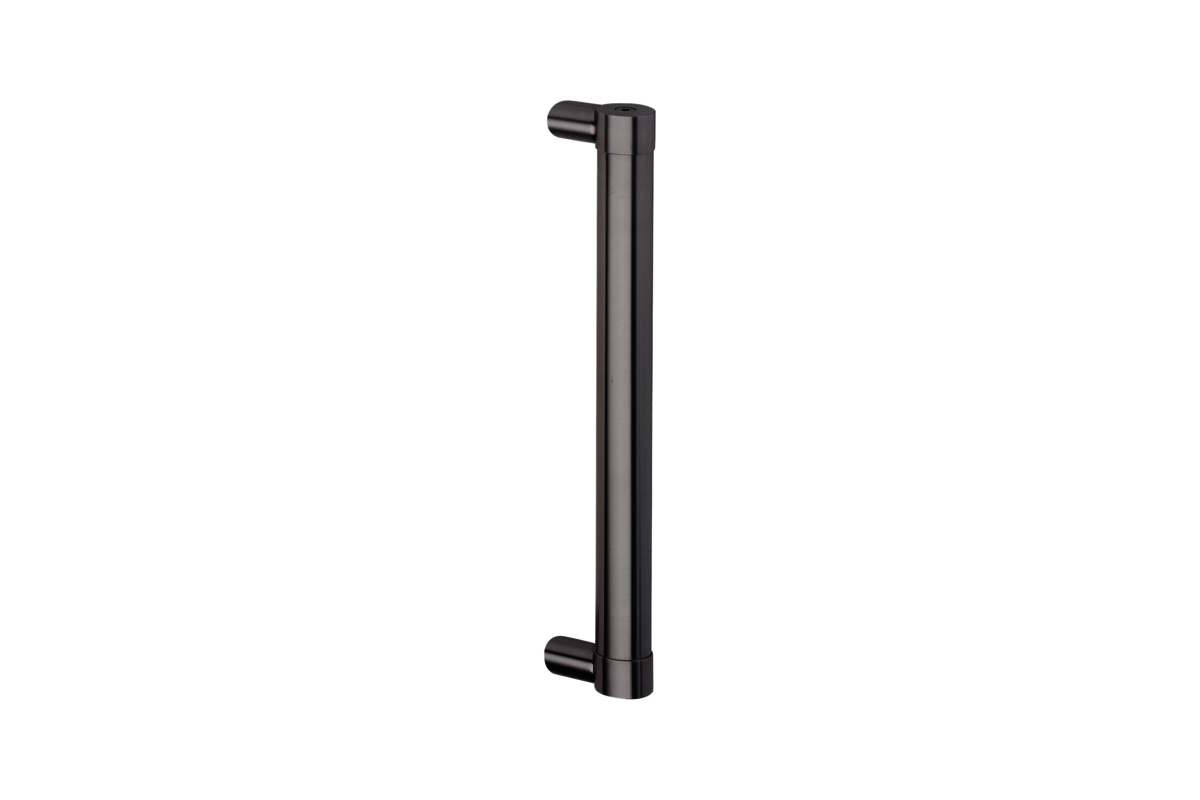

Door handle with straight end supports, series RS
- series RS: round support with socket for invisible tube ends
- with tubular handle and straight end supports
- for concealed fixing
- fastening elements in the door handle
- mounting material available separately
Material
stainless steel
clamping elements:
aluminium
Dimensions (in mm)
(special lengths also available on request*)
| Art. no. | D | GL | L | H |
| KWS 8021.. | tube, Ø 30 x 1,5 | L plus 26 | 200 to 1.800 | 80 |
| KWS 8023.. | tube, Ø 35 x 1,5 | L plus 26 | 200 to 2.200 | 85 |
| KWS 8025.. | tube, Ø 40 x 2 | L plus 26 | 200 to 2.500 | 90 |
*available with mid support or reinforcement profile (for KWS 8023..)
