KWS 2920..

Post and door buffer

Picture shows KWS 2920.82

Drawing shows KWS 2920..

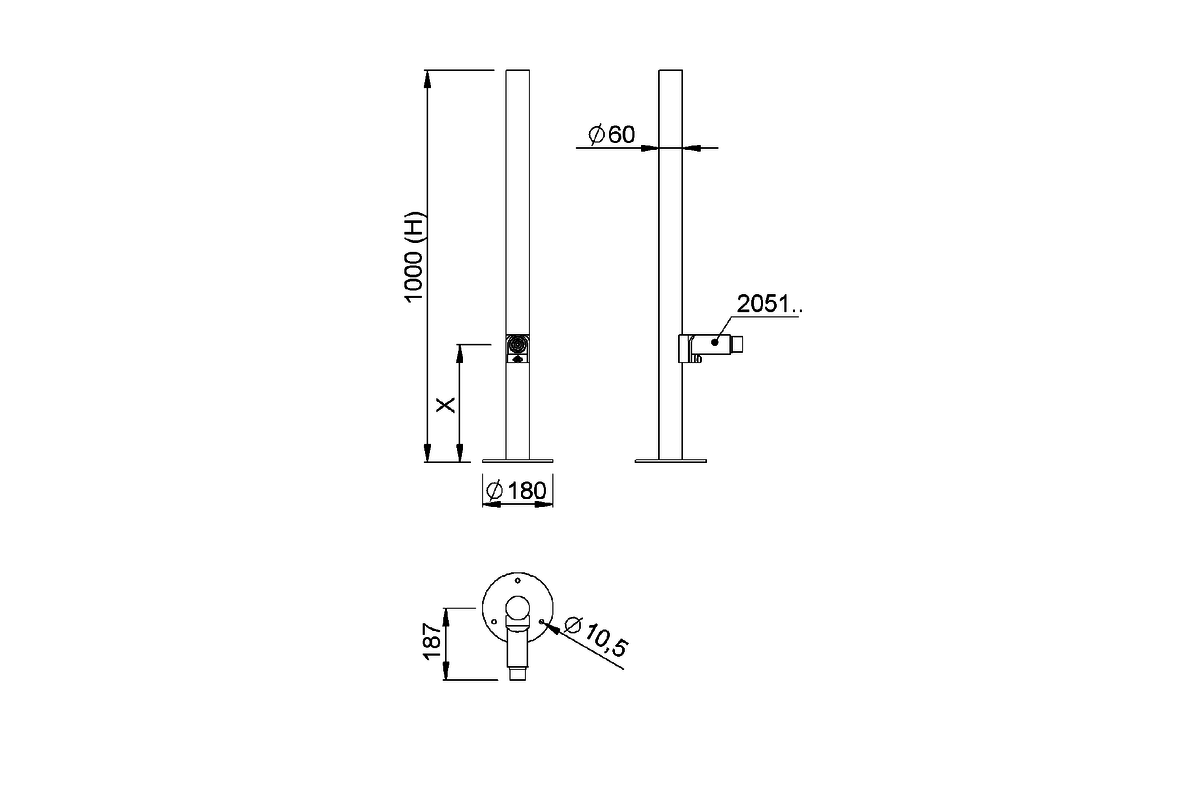

Drawing shows KWS 2921..

Drawing shows KWS 2922..

Do you have questions regarding the product?
We are happy to advise you!

Variant

Please make a new selection.

Finish

Please make a new selection.

Height post (H), in mm

Please enter a number between 0 and 1100 .

Height door buffer/rubber (X), in mm

Please enter a number between 55 and 300 .

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 2920..
Post and door buffer
with door buffer KWS 2049.., 2051.. or 9916..
to be screwed
without mounting material

Material
stainless steel
buffer:
rubber, black (spring-loaded for KWS 2920.. / 2921..)

Door weight
max. 100 kg

Unit weight
6,000 kg (KWS 2920.. / 2921.. / 2922.. with H = 1.000 mm)
Installation
Mount the post on the floor with three screws at the desired stop point, which should be the furthest possible distance from the door hinge.
For KWS 2921.., the door buffer KWS 2051.. can be adjusted perpetually up to 10 degrees to the right and left.
Downloads
Product drawing KWS 2920.. (DWG)
Product drawing KWS 2921.. (DWG)
Product drawing KWS 2922.. (DWG)
