KWS 2069..

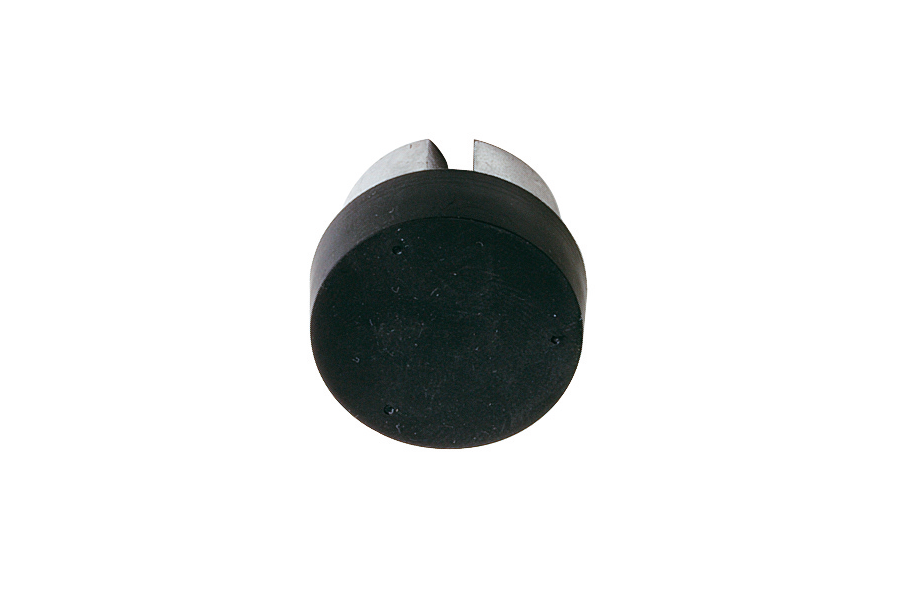

Door buffer

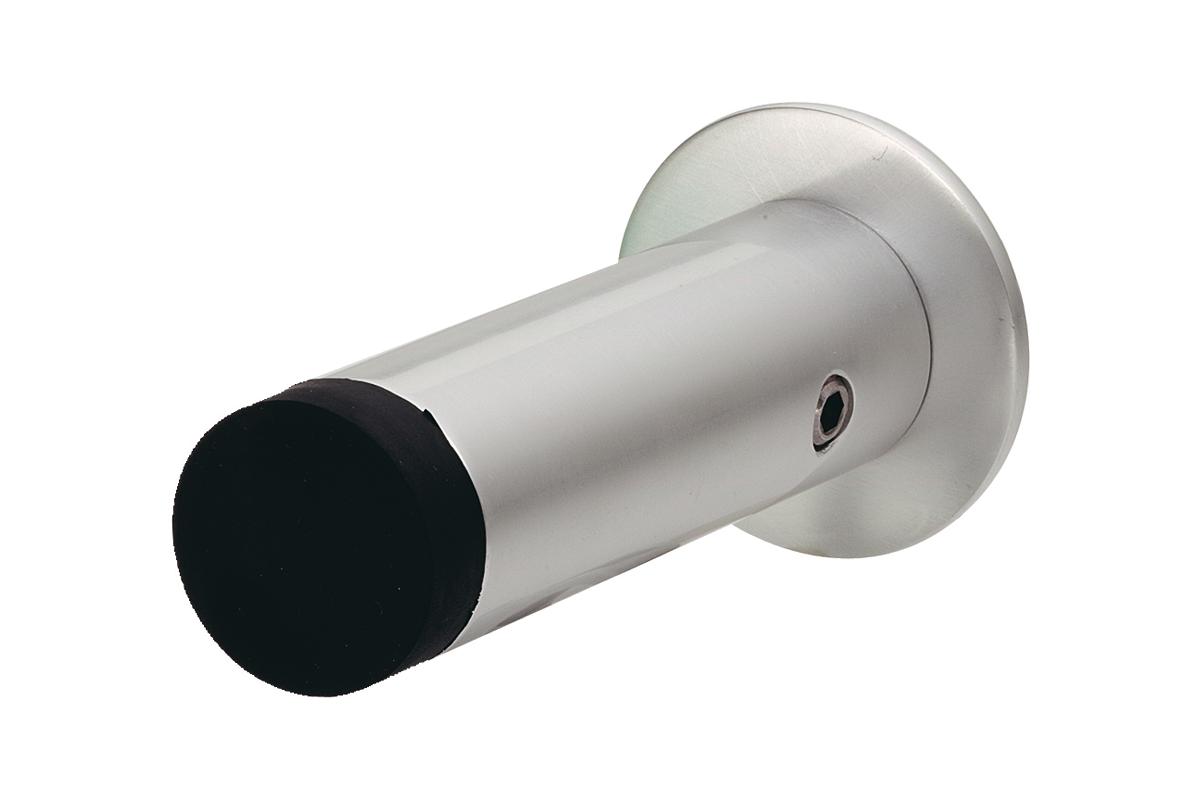

Picture shows KWS 2076.31

Drawing shows KWS 2069.. ff.

Do you have questions regarding the product?
We are happy to advise you!

Wall clearance

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 2069..
Door buffer
on Ø 50 mm rosette
to be screwed
with mounting material
also available in overlengths on request

Material
aluminium, brass or stainless steel
buffer:
rubber, black (also available in white on request)

Diameter
Ø 30 mm

Wall clearance
28 mm (KWS 2069..)
60 mm (KWS 2074..)
80 mm (KWS 2075..)
100 mm (KWS 2076..)
120 mm (KWS 2077..)

Door weight
max. 40 kg

Unit weight
0,045 kg (KWS 2069.. aluminium)
0,085 kg (KWS 2069.. brass)
0,085 kg (KWS 2069.. stainless steel)
Installation
Mount the fixing element on the wall with a screw and a plug (at the furthest possible distance from the door hinge). Attach the buffer tube that is fitted with the buffer rubber and fix it with the clamping screw. The pin inserted into the wall prevents the door buffer from turning.
Downloads
Product drawing (DWG)
