KWS 2033..

Door buffer

Picture shows KWS 2033.31

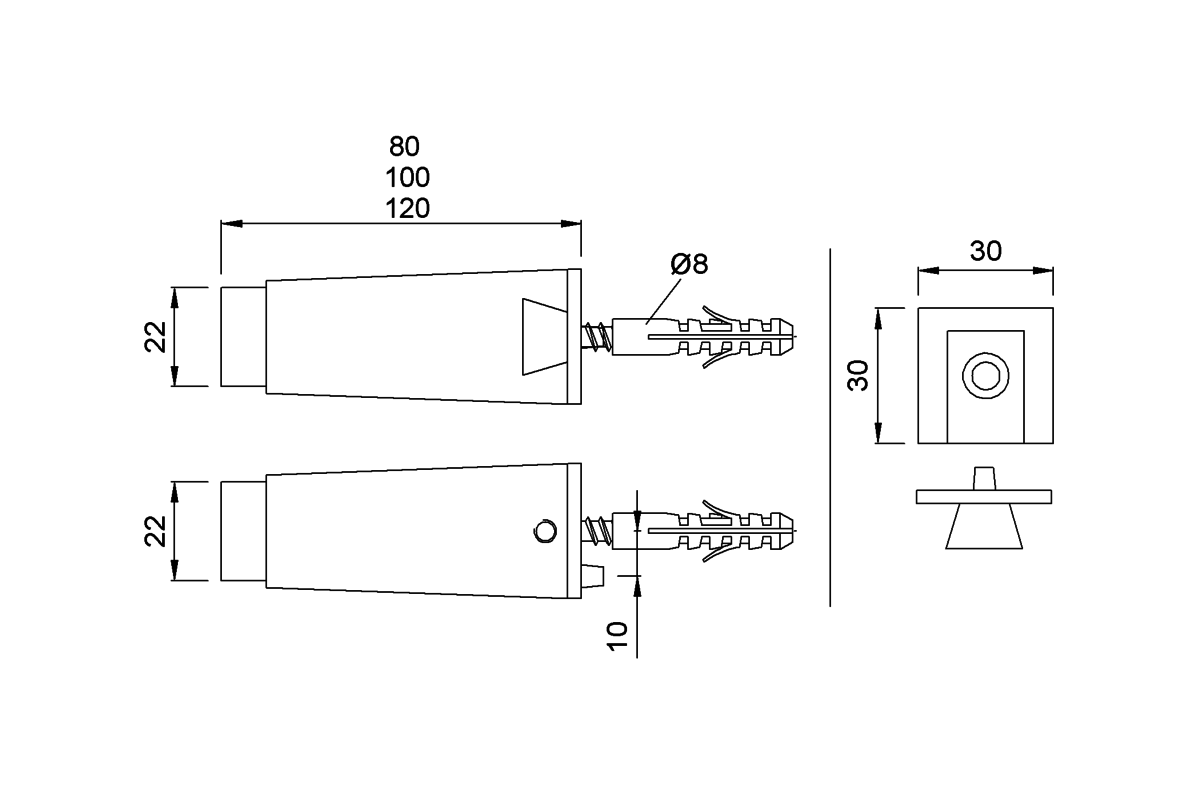

Drawing shows KWS 2033.. / 2035.. / 2037..

Do you have questions regarding the product?
We are happy to advise you!

Wall clearance

Please make a new selection.

Finish

Please make a new selection.

Please correct all errors and fill in all fields.

Please enter a quantity.

Quantitypiece(s)

Product information
KWS 2033..
Door buffer
to be screwed
with mounting material

Material
aluminium
buffer:
rubber, black

Wall clearance
80 mm (KWS 2033..)
100 mm (KWS 2035..)
120 mm (KWS 2037..)

Door weight
max. 40 kg

Unit weight
0,100 kg (KWS 2033..)
Installation
Mount the fixing element on the wall with a screw and a plug at the furthest possible distance from the door hinge. Attach the buffer tube that is fitted with the buffer rubber and fix it with the clamping screw. The pin inserted into the wall prevents the door buffer from turning.
Downloads
Product drawing (DWG)
