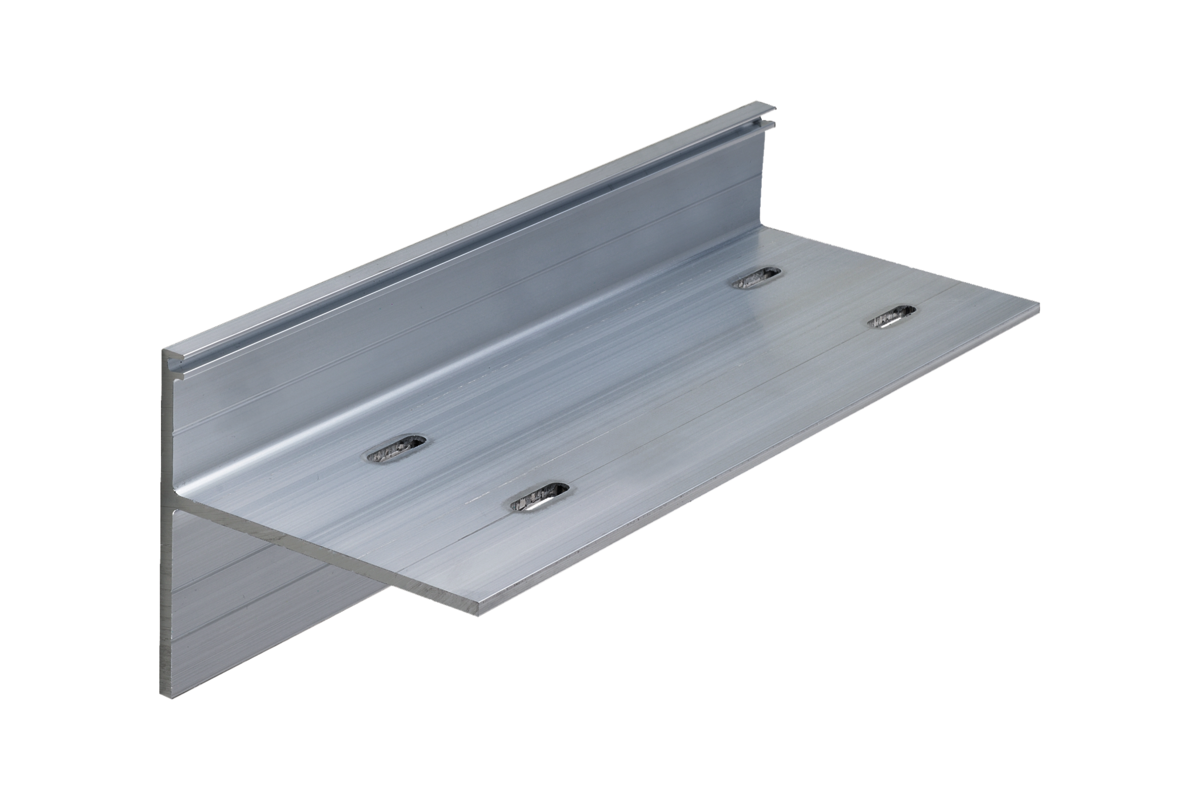

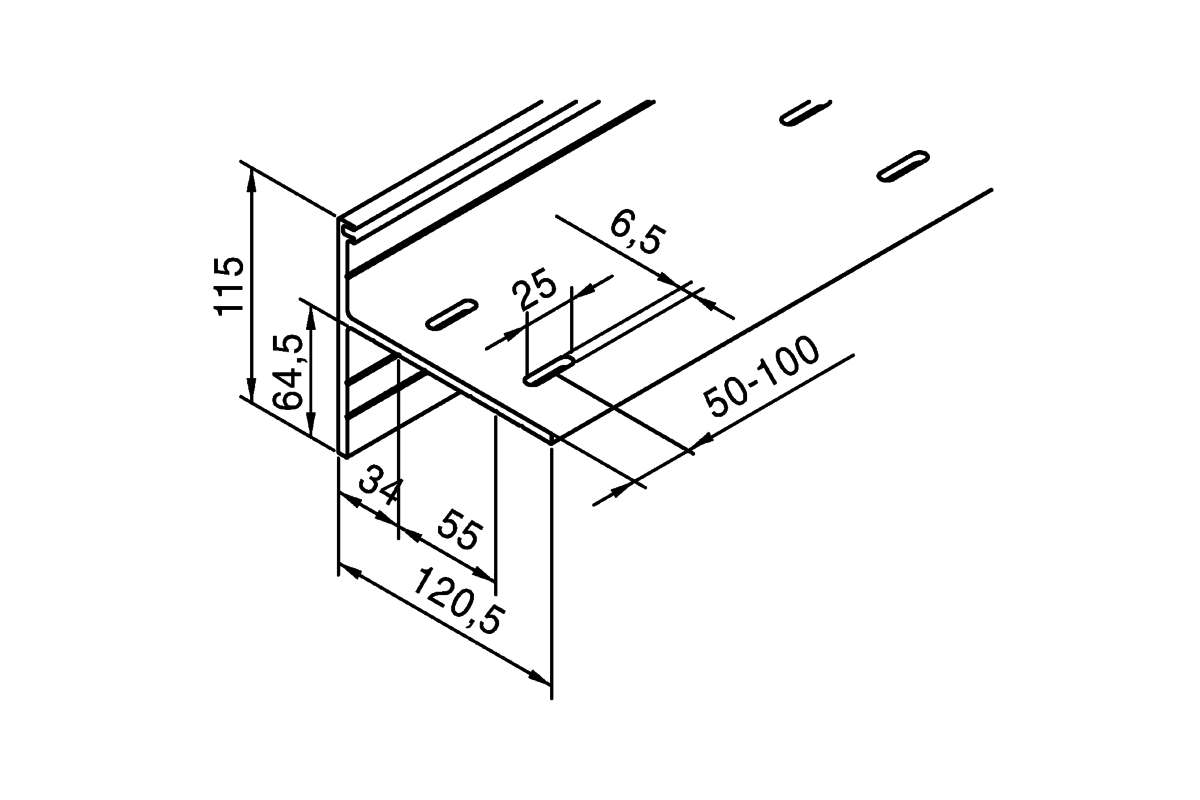

HELM Projection track
double-track
- for two tracks
- for pelmetting of track and drive unit as well as for simplified installation in case of thermal insulation (WDVS)
- perforated or unperforated (refers to the elongated holes for fixing the track, holes for wall installation are to be drilled on site)
- in 6.000 mm stock length or made to measure
- note: must be 150 mm longer than the track when combined with a toothed belt drive
Material
aluminium
Leaf weight
max. 40 kg (HELM 80)
max. 50 kg (HELM 140)
max. 60 kg (HELM 150)
