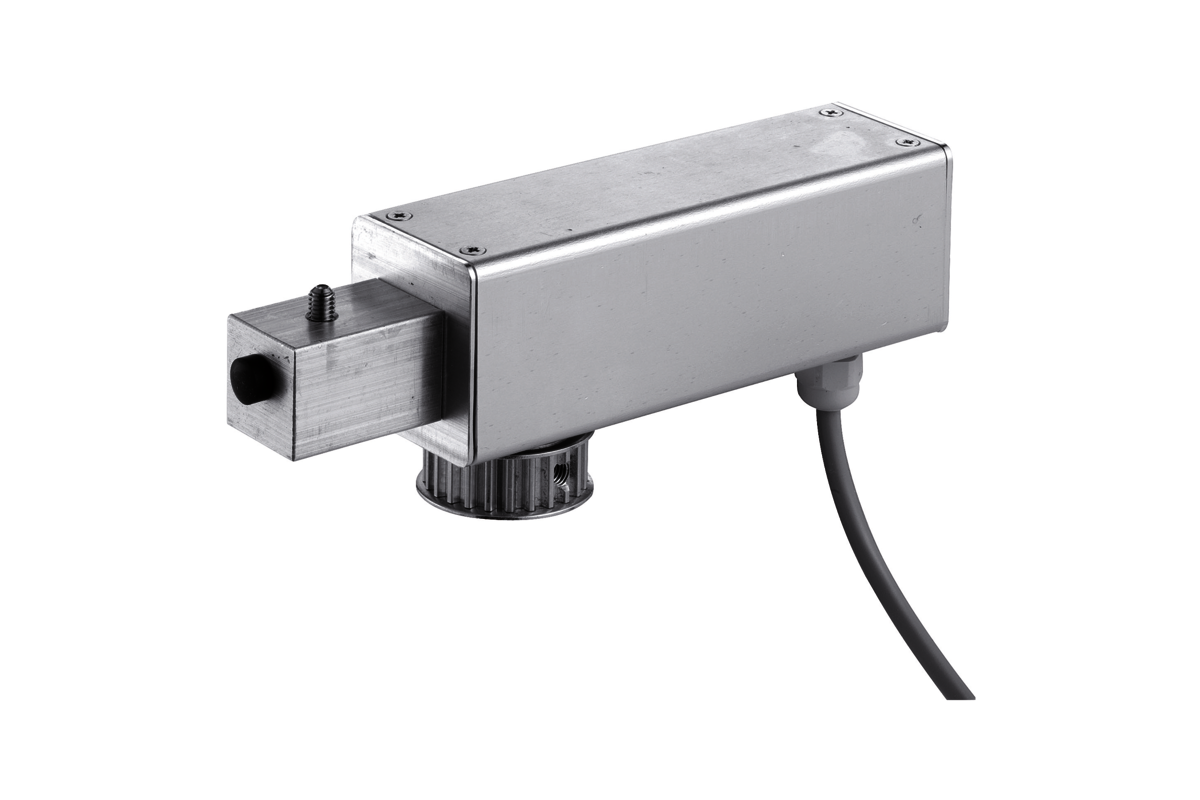

HELM 80
Toothed belt drive for leaves up to 60 kg
- offers in combination with the HELM Comfort and Eco controllers an optimum ease of use and maximum safety
- sliding shutters are gently started and stopped
- additional force cut-off prevents crushing hazards (warranty only in connection with HELM Comfort and Eco controllers)
Leaf weight
max. 60 kg
(note: total leaf weight for multi-leaf systems must not exceed 120 kg)
Technical data
voltage:
24 V DC
rated current:
1 A
speed:
0,1m/second
cable length:
1.500 mm (2 x 1 mm2)
clamped length (center of deflection roller to center of drive):
max. 7.500 mm
degree of protection:
IP54
conformity:
CE
