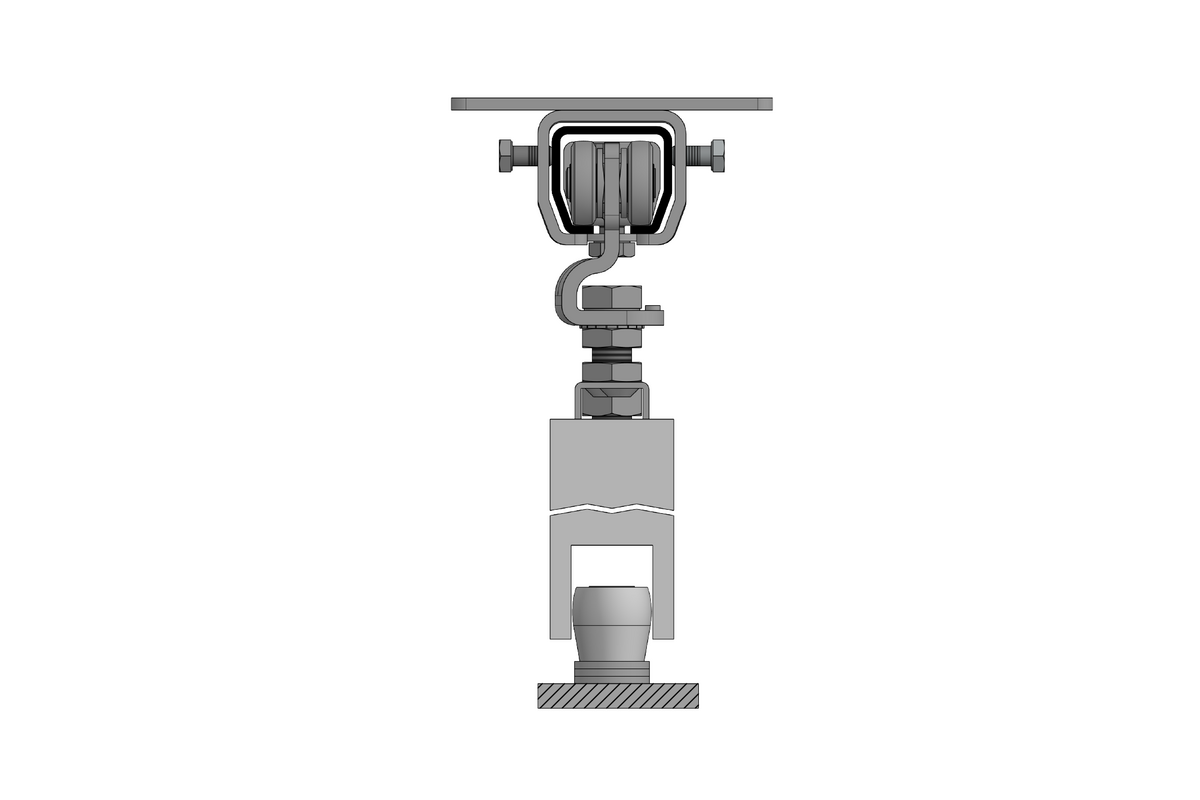

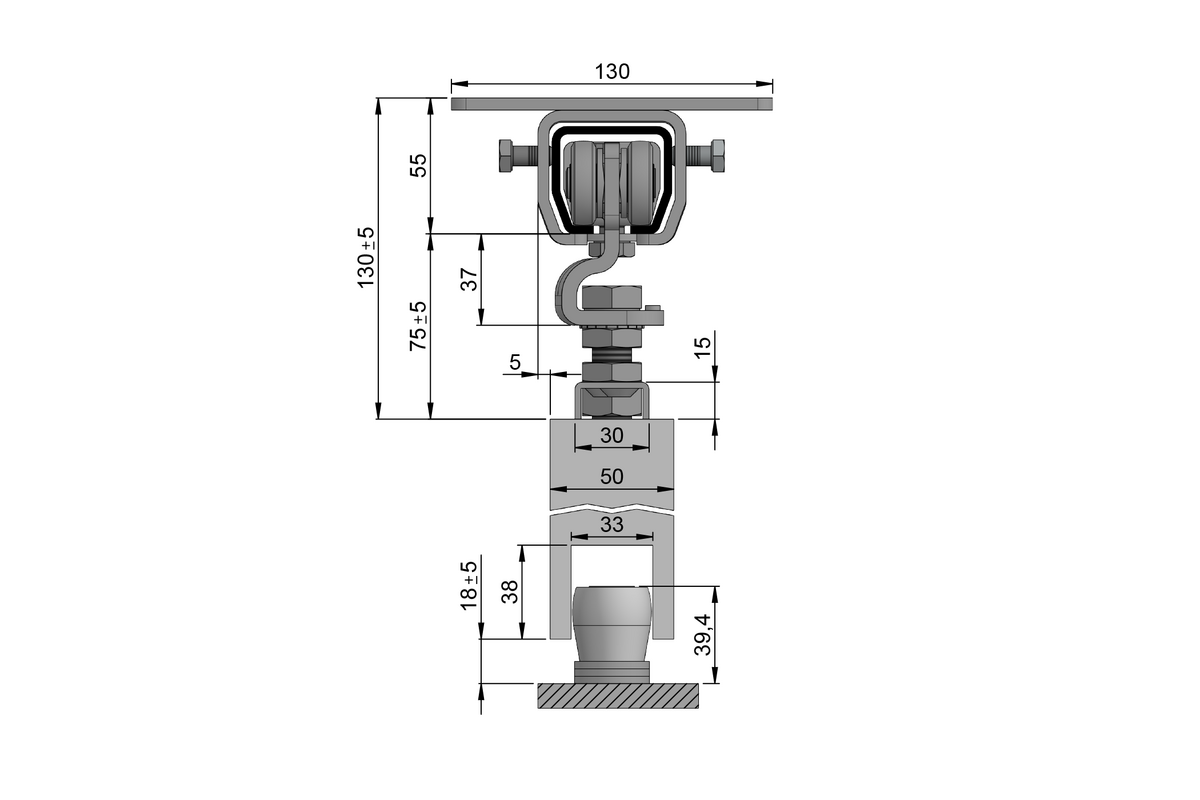

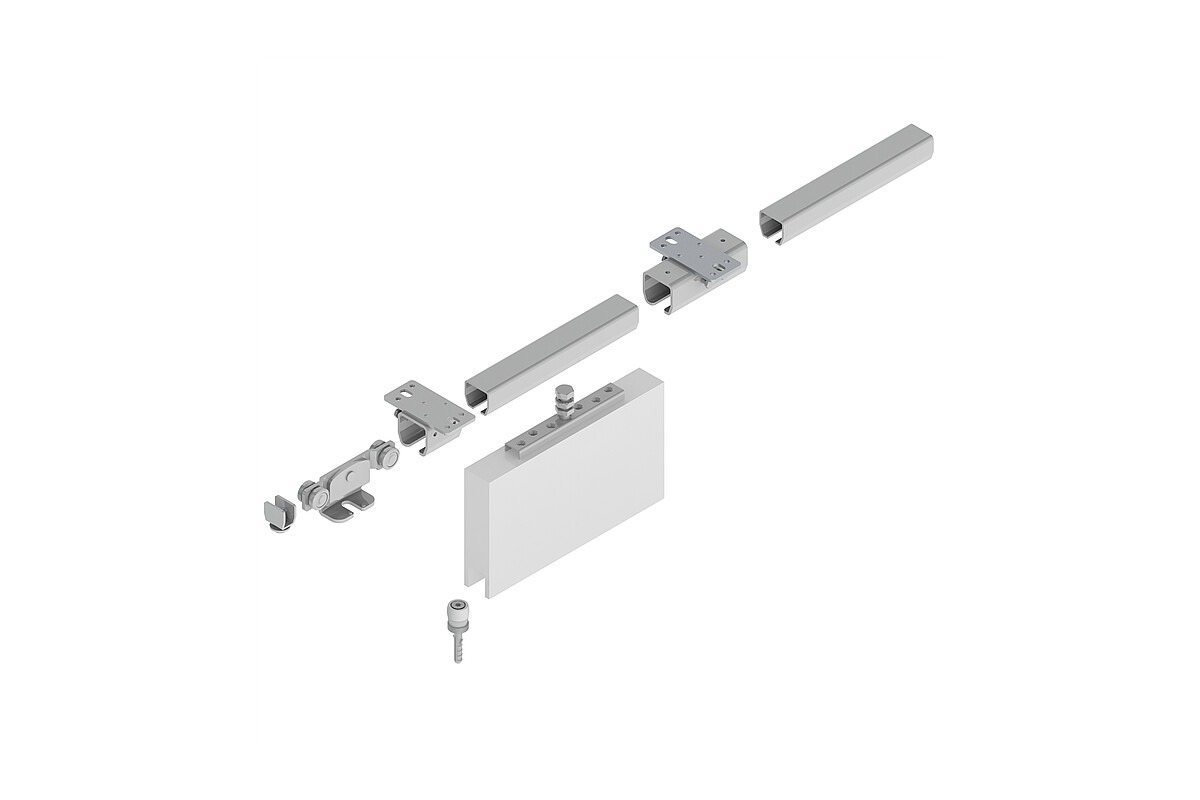

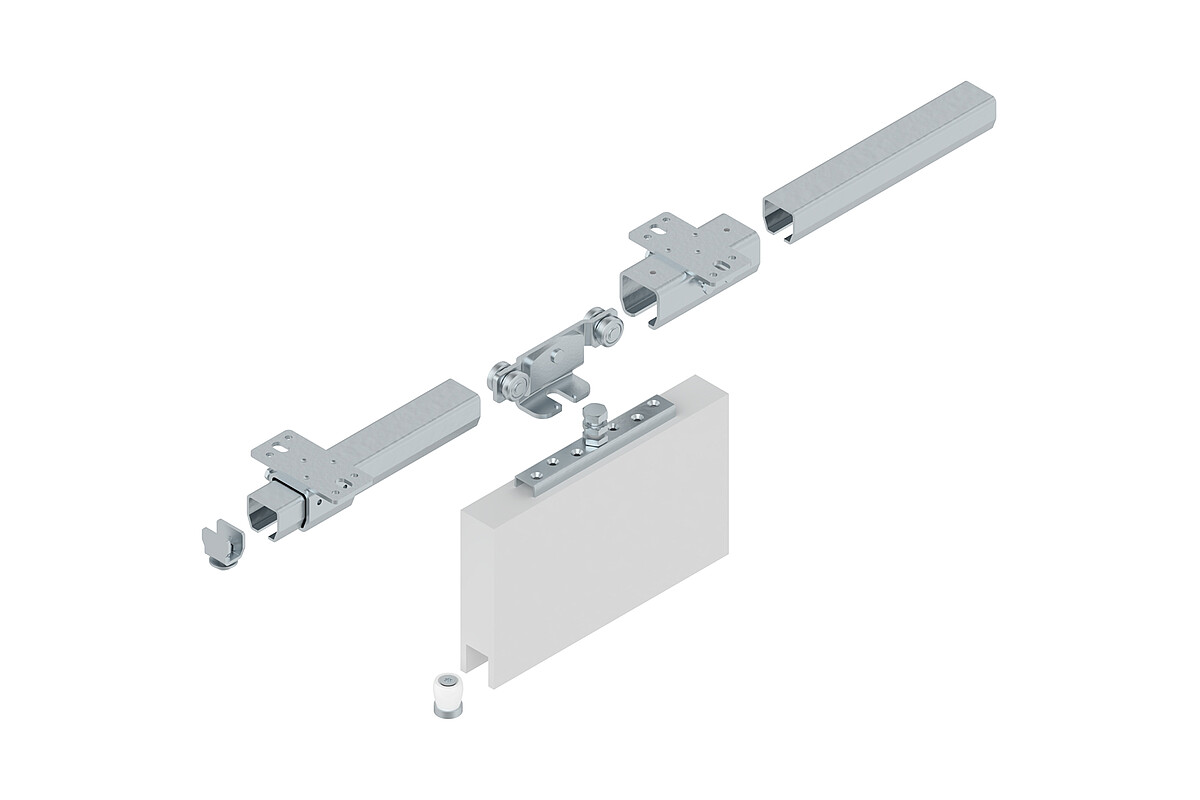

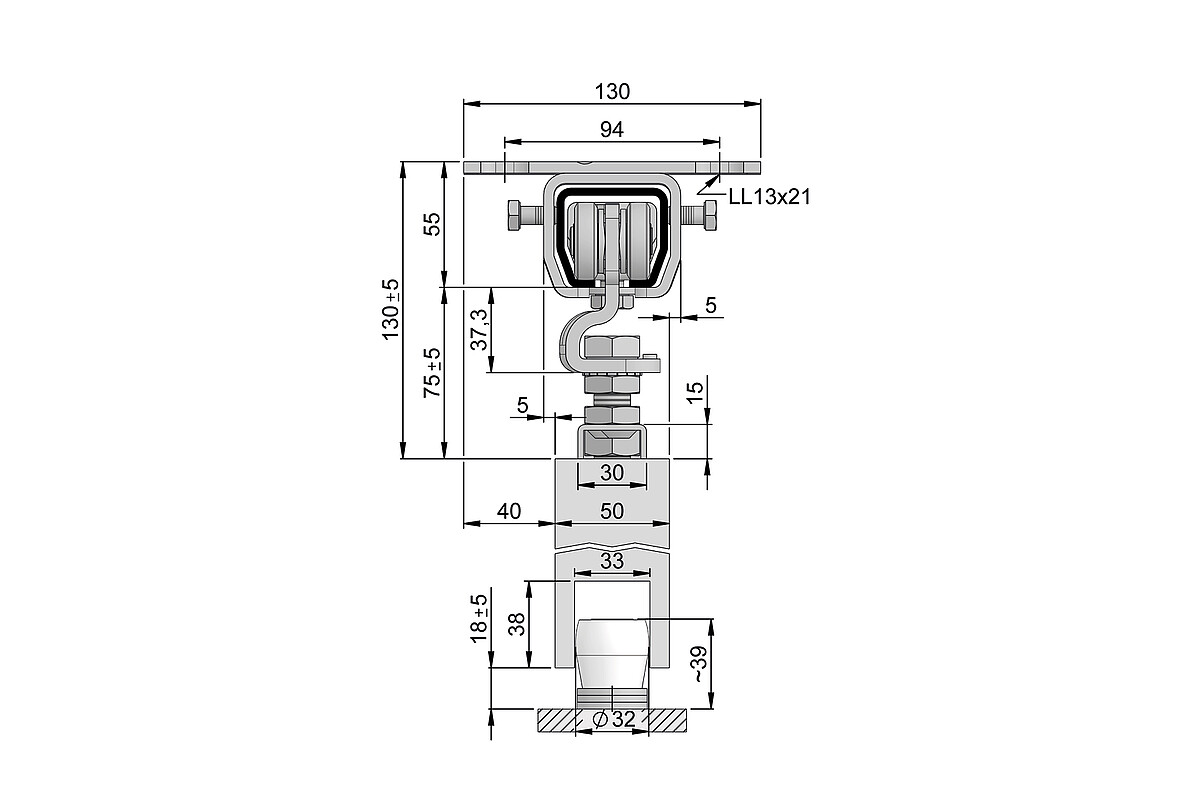

HELM SP 400 D 101
Sliding gate system for leaves up to 400 kg, ceiling installation
- for sliding gates made of timber
- trolleys: double-pair, with pendulum joint and hardened rollers, height-adjustable
- complies with corrosion resistance class 3 (according to EN 1670: class 1 to 4)
Material
steel
Leaf weight
max. 400 kg

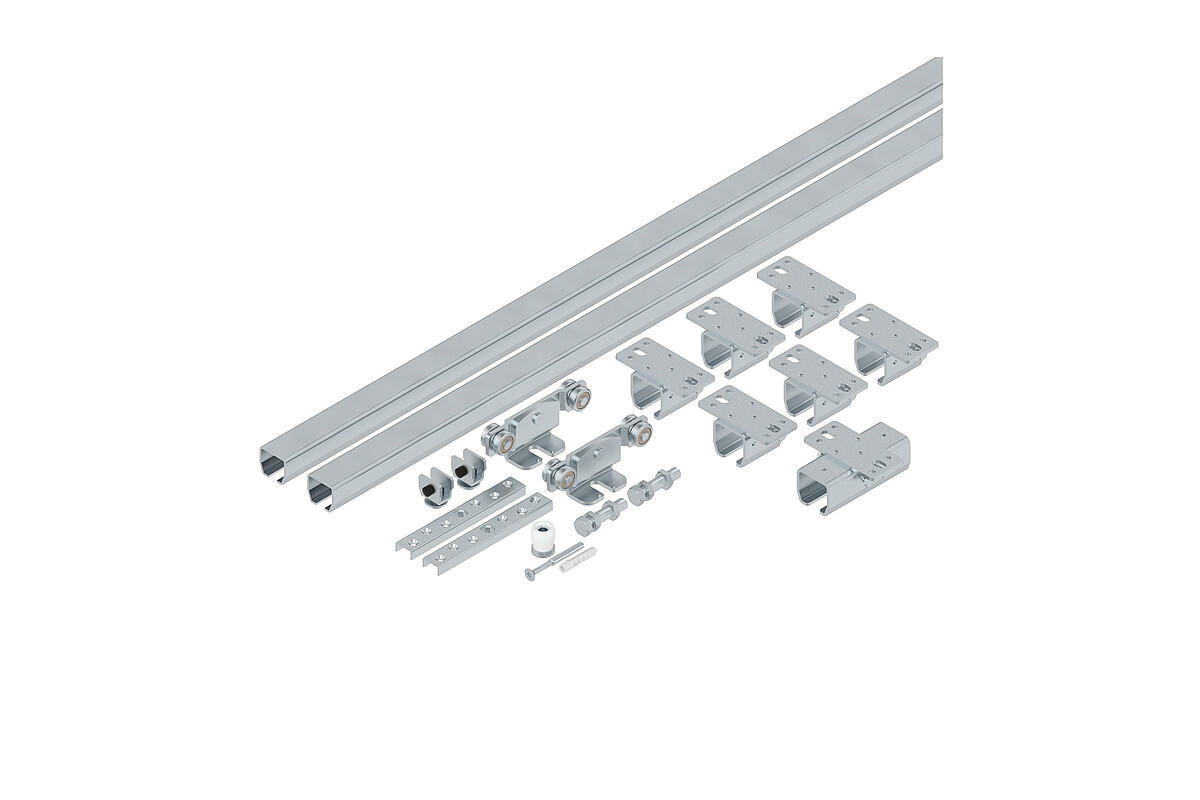

Contents
| Quantity | Article |

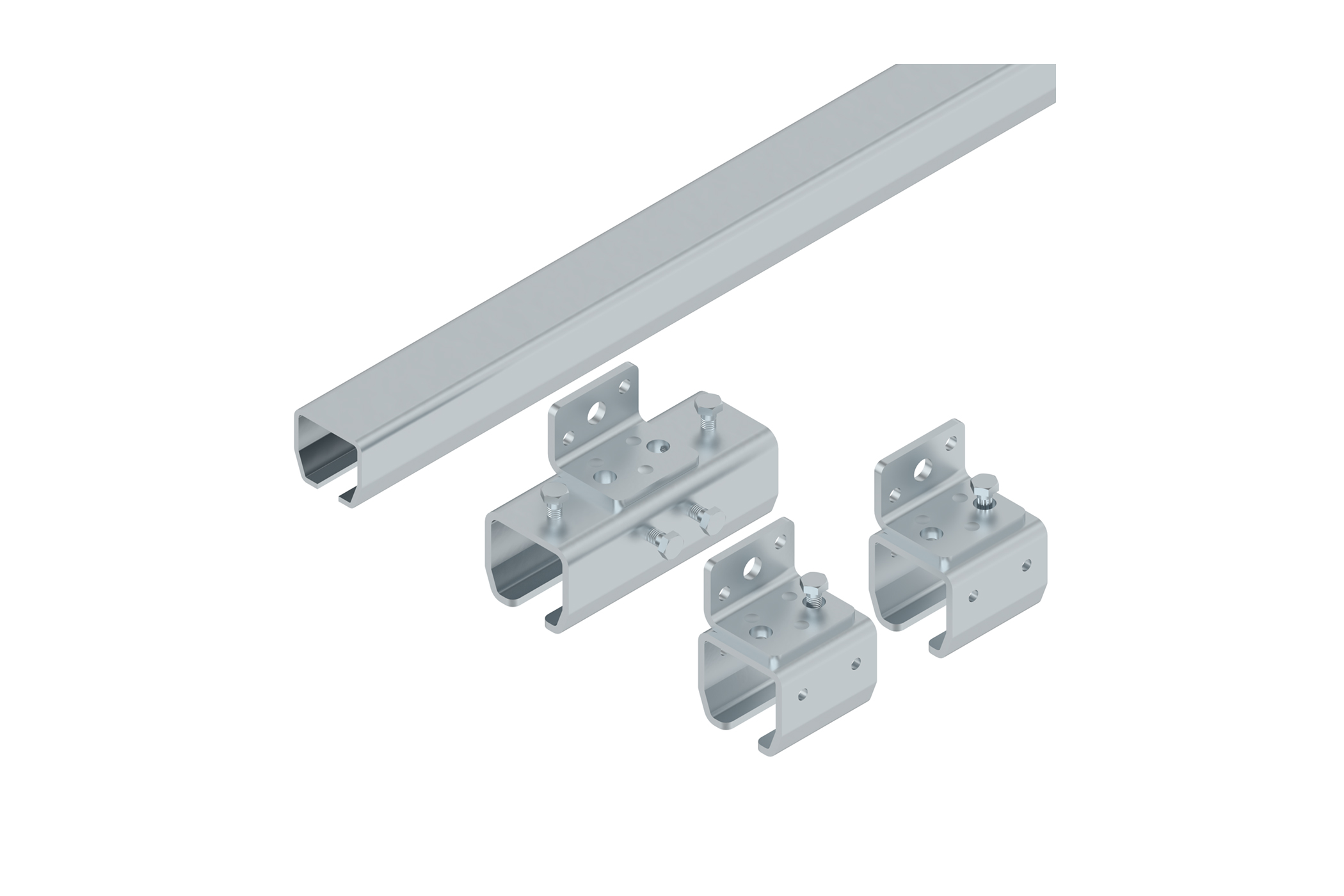

| 2 pc. | HELM 400 profile, 2.000 mm |
| 6 pc. | HELM 402 ceiling sleeve |
| 1 pc. | HELM 407 mounting/coupling sleeve |

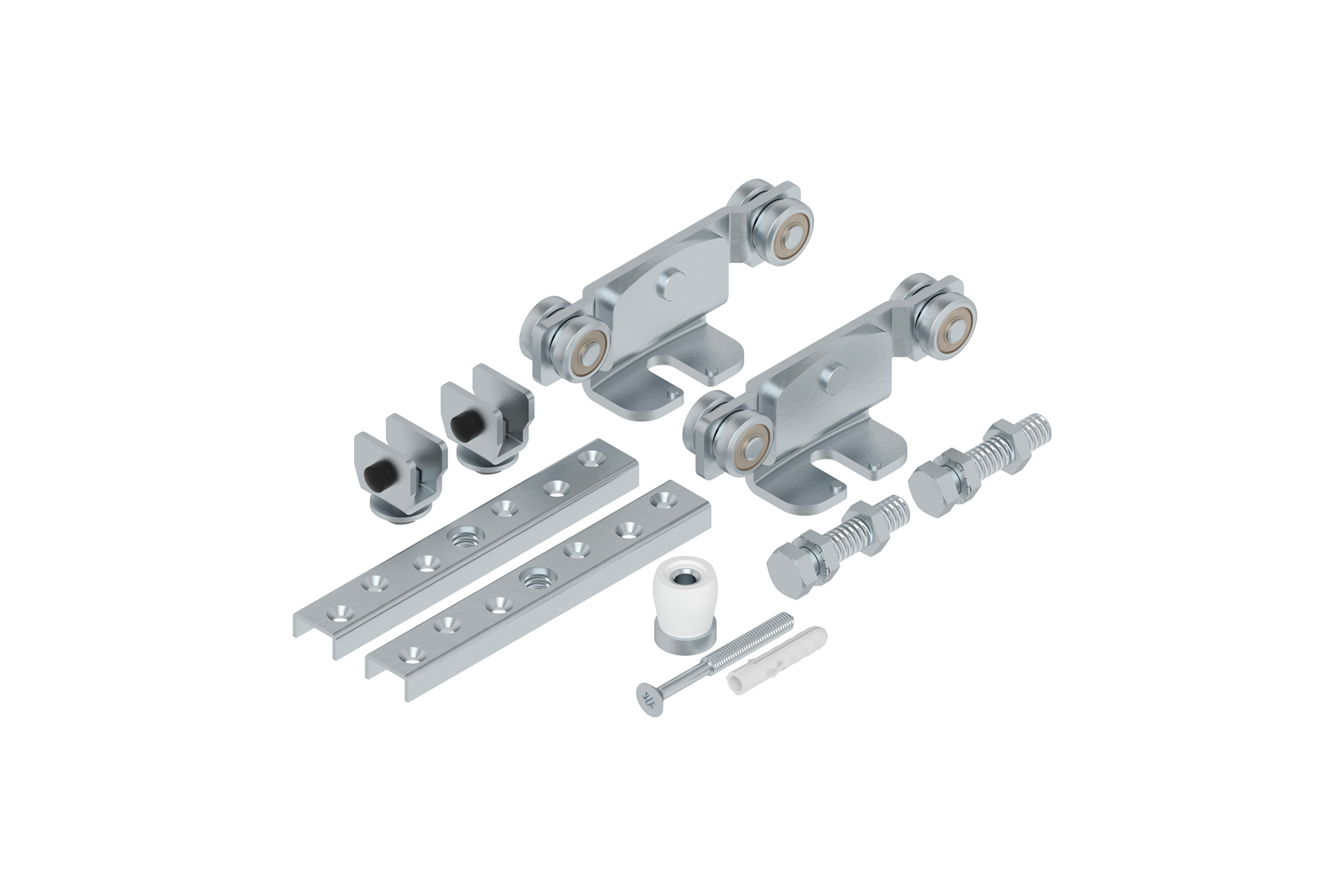

| 2 pc. | HELM 491 trolley |
| 2 pc. | HELM 493 flange |
| 2 pc. | HELM 400 P end stop |
| 1 pc. | HELM 458 DÜ roller guide |
