HELM -96 S
Flange for steel leaves
- with laterally placed thread
- for welding on
Material
steel
Dimensions (in mm)

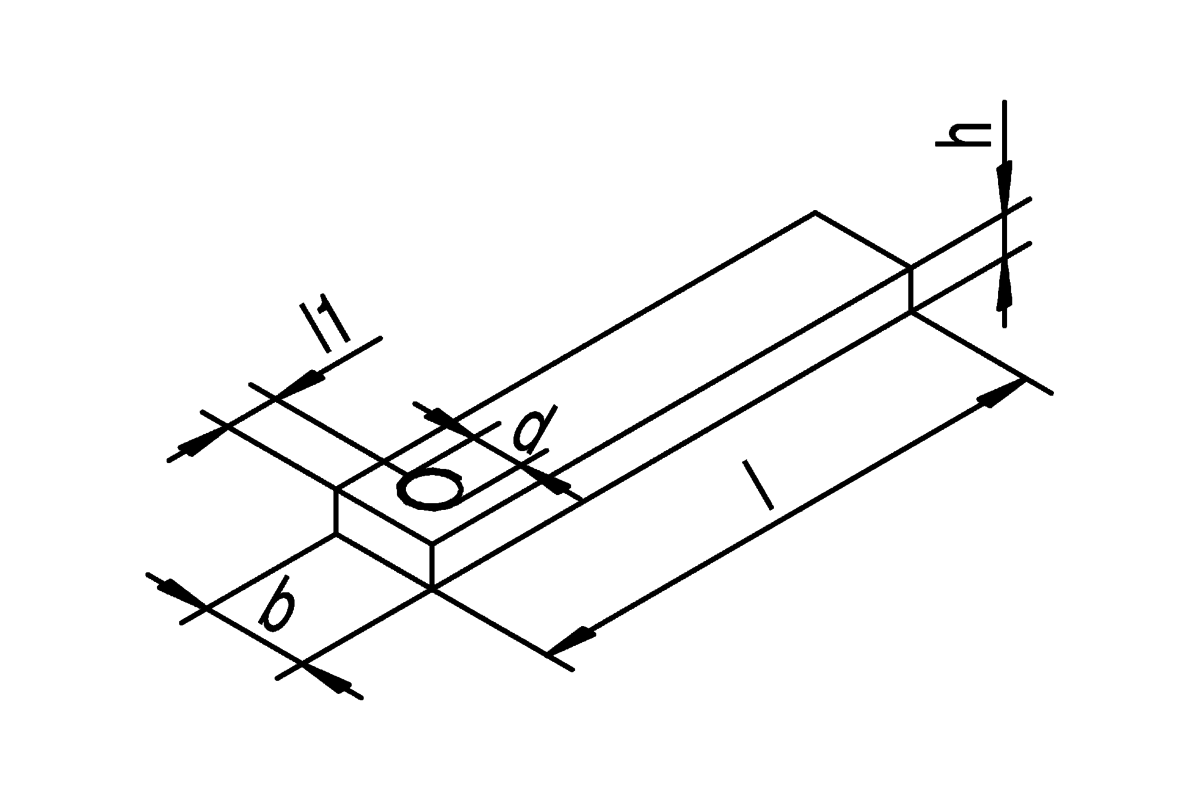

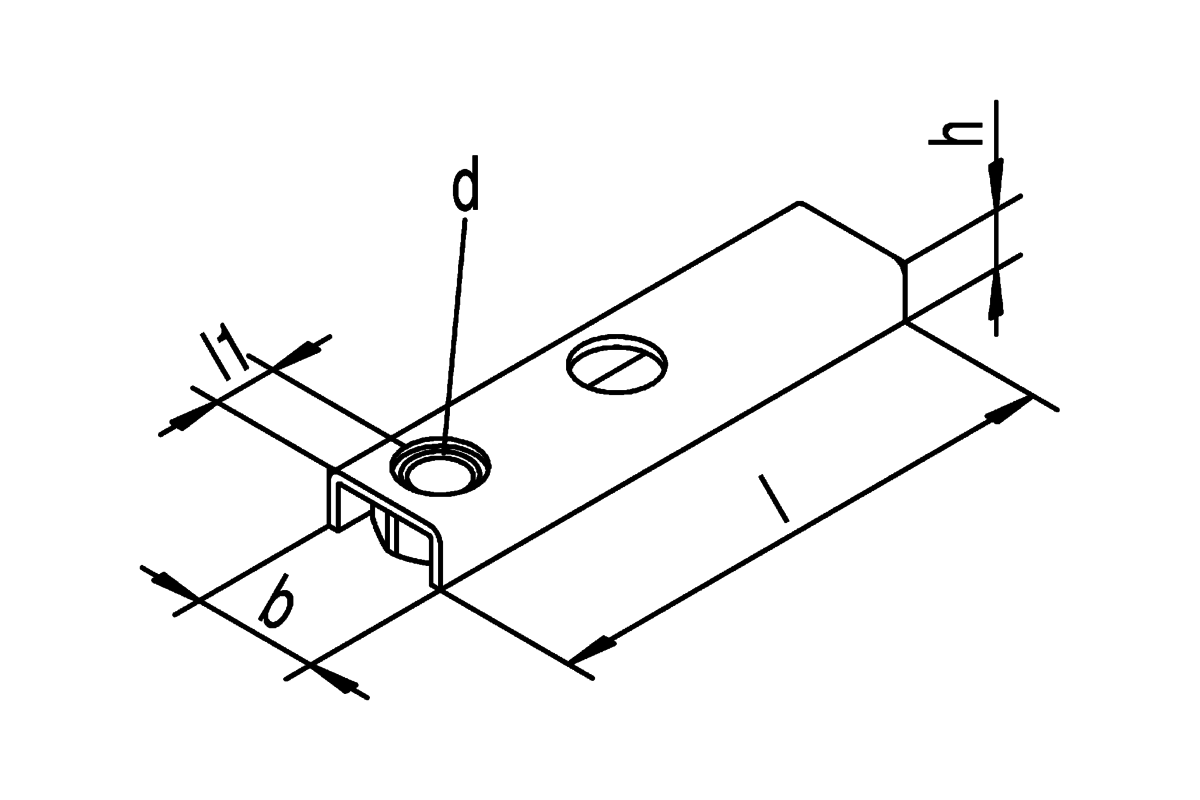

| Article Art. no. | HELM 196 S HELM 019611 | HELM 396 S HELM 039611 | HELM 496 S HELM 049611 | HELM 596 S HELM 059611 | HELM 696 S HELM 069611 | HELM 796 S HELM 079611 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 | HELM 600 | HELM 700 |
| b | 20 | 24 | 30 | 38 | 50 | 60 |
| d | M10 | M12 | M16 | M20 | M24 | M30 |
| h | 8 | 11 | 15 | 20 | 25 | 30 |
| l | 100 | 100 | 120 | 140 | 150 | 180 |
| l1 | 10 | 12 | 15,5 | 20 | 20 | 25 |
