HELM -94
Support bracket for timber leaves
- with laterally placed thread
- to be screwed or inserted
Material
steel

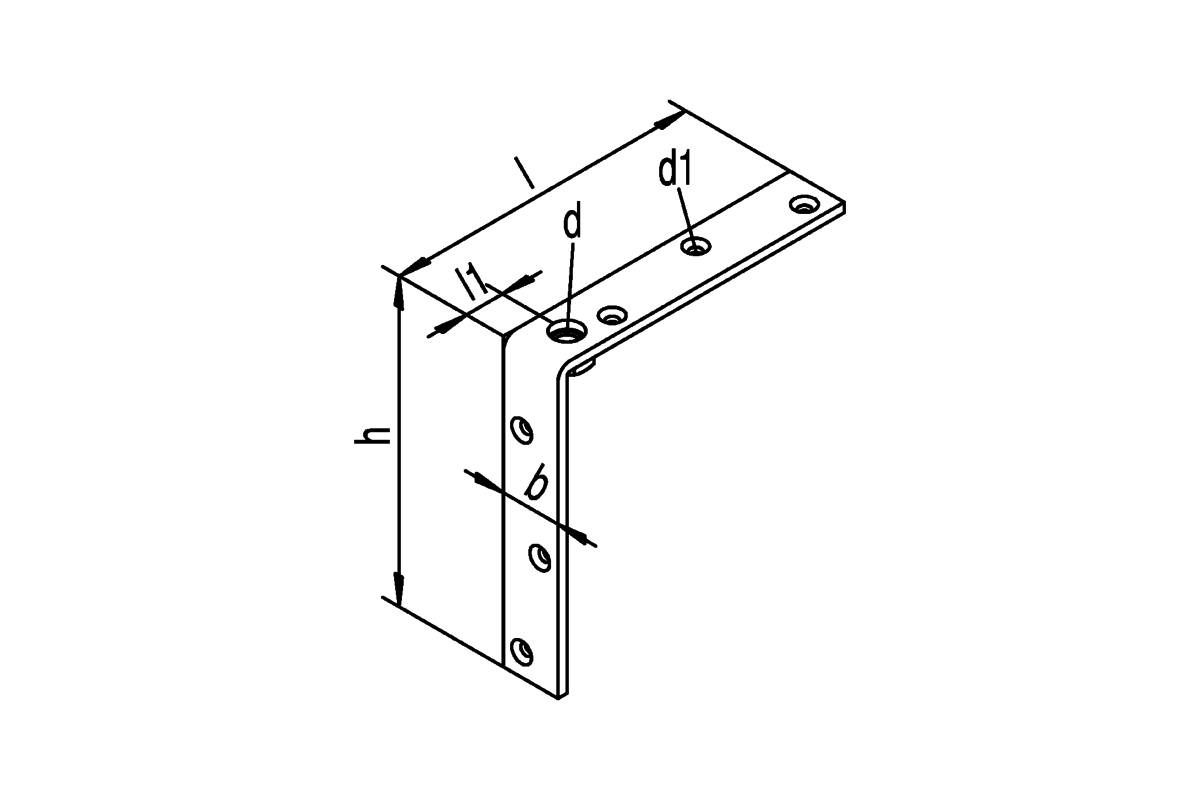

Dimensions (in mm)
| Article Art. no. | HELM 194 HELM 019420 | HELM 394 HELM 039420 | HELM 494 HELM 049420 | HELM 594 HELM 059420 |
| profile | HELM 100 | HELM 300 | HELM 400 | HELM 500 |
| b | 20 | 30 | 35 | 40 |
| d | M10 | M12 | M16 | M20 |
| d1 | Ø 4,8 | Ø 5,9 | Ø 7 | Ø 8,4 |
| h | 124 | 158 | 210 | 260 |
| l | 124 | 158 | 200 | 255 |
| l1 | 15 | 20 | 20 | 30 |
