HELM -58 DÜ

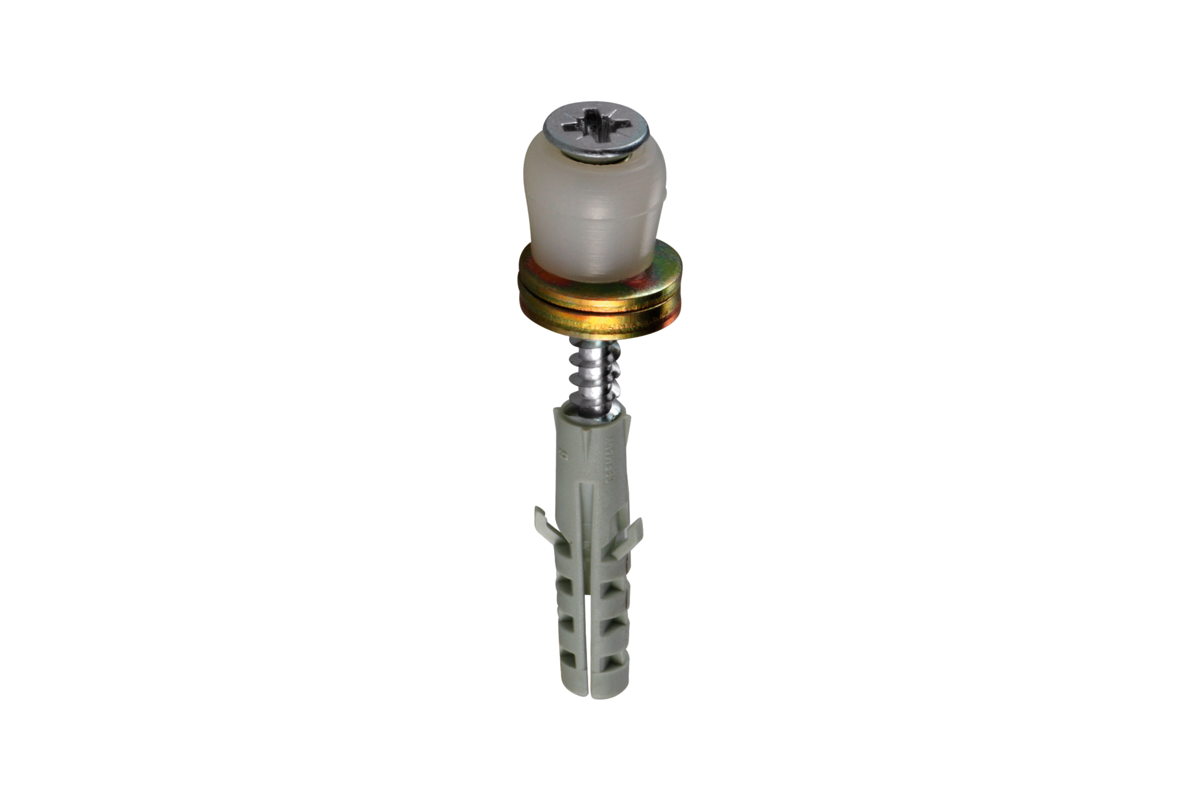

Roller guide
- to be screwed onto the floor

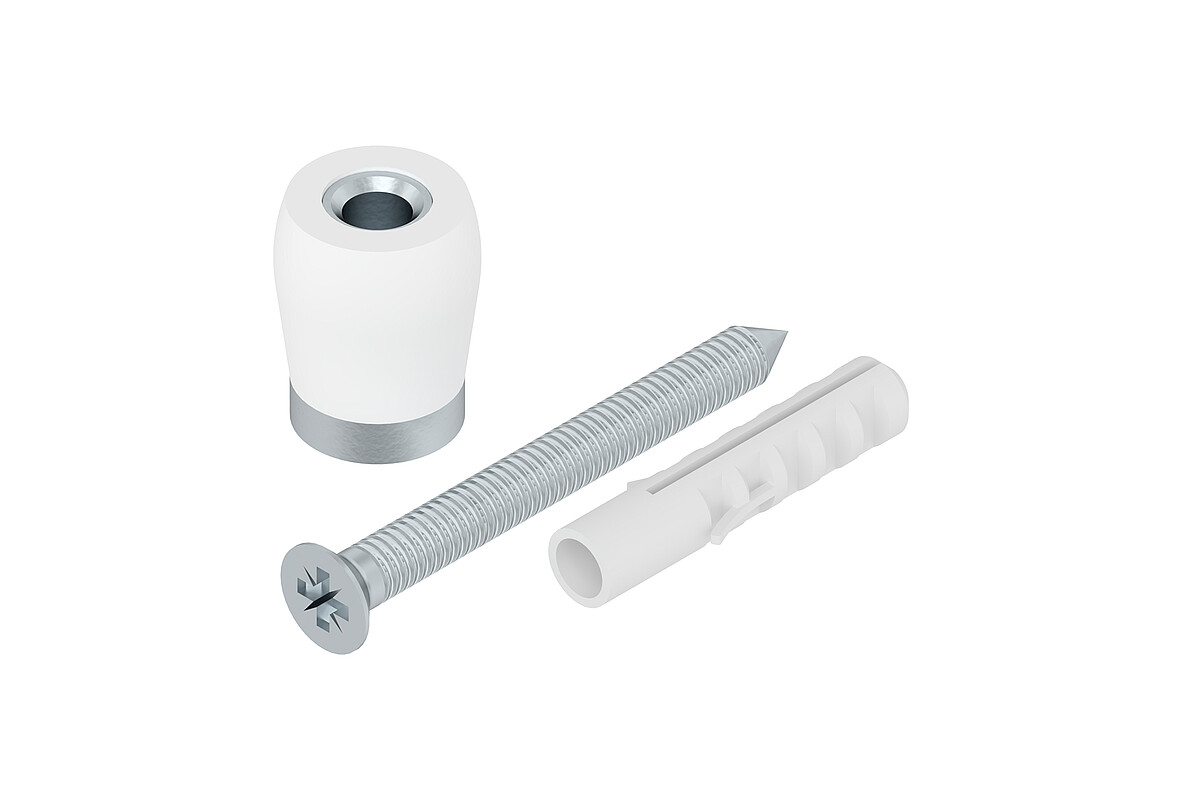

- with mounting material
- can be used with HELM -40 U-profile inserted into or screwed onto the bottom of the leaf
Material
roller:
plastic or brass

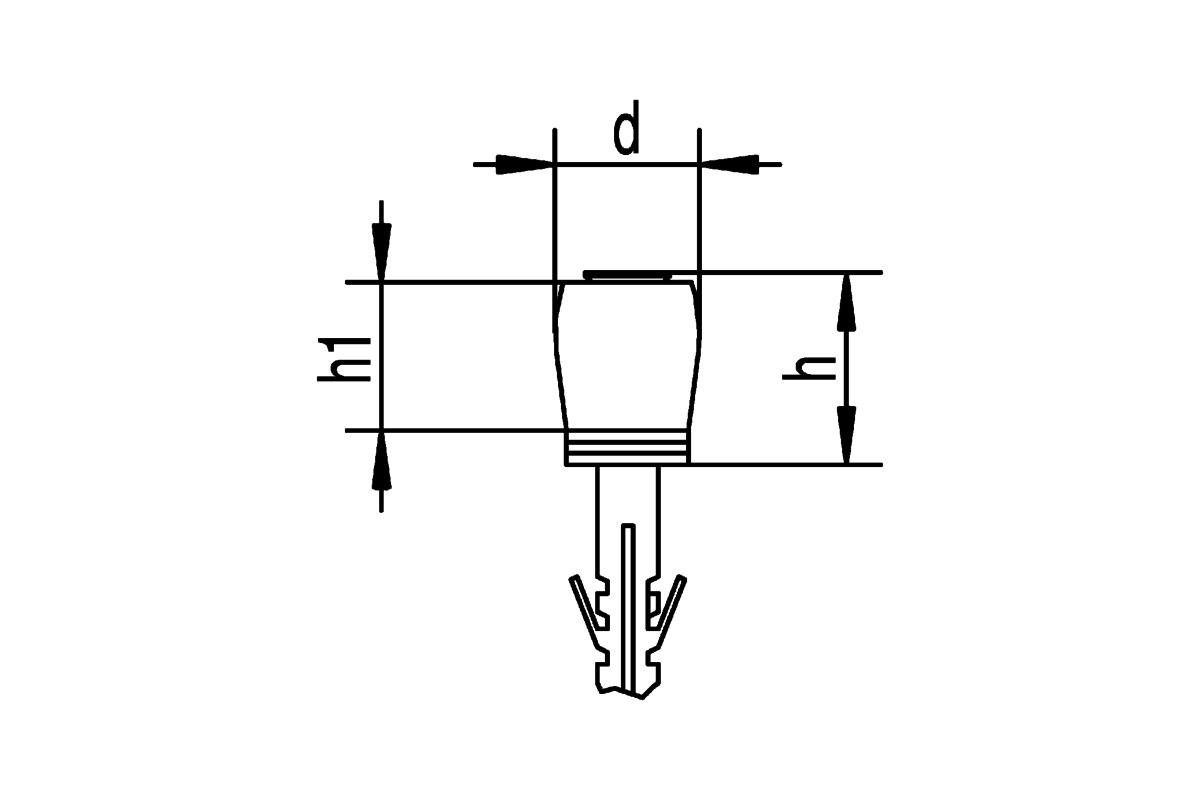

Dimensions (in mm)
| Article Art. no. | HELM 258 DÜ HELM 0258.. | HELM 358 DÜ HELM 0358.. | HELM 458 DÜ HELM 0458.. | HELM 558 DÜ HELM 0558.. |
| U-profile | HELM 240 | HELM 340 | HELM 440 | HELM 540 |
| d | Ø 12 | Ø 19 | Ø 32 | Ø 49,5 |
| h | 16,5 | 24 | 39 | 48,5 |
| h1 | 12 | 19,5 | 30 | 39,5 |
