HELM 514 DÜ
Bottom guide
- to be screwed onto the floor
- with mounting material
- can be used with HELM 340 U-profile inserted into or screwed onto the bottom of the leaf
Material
malleable cast iron

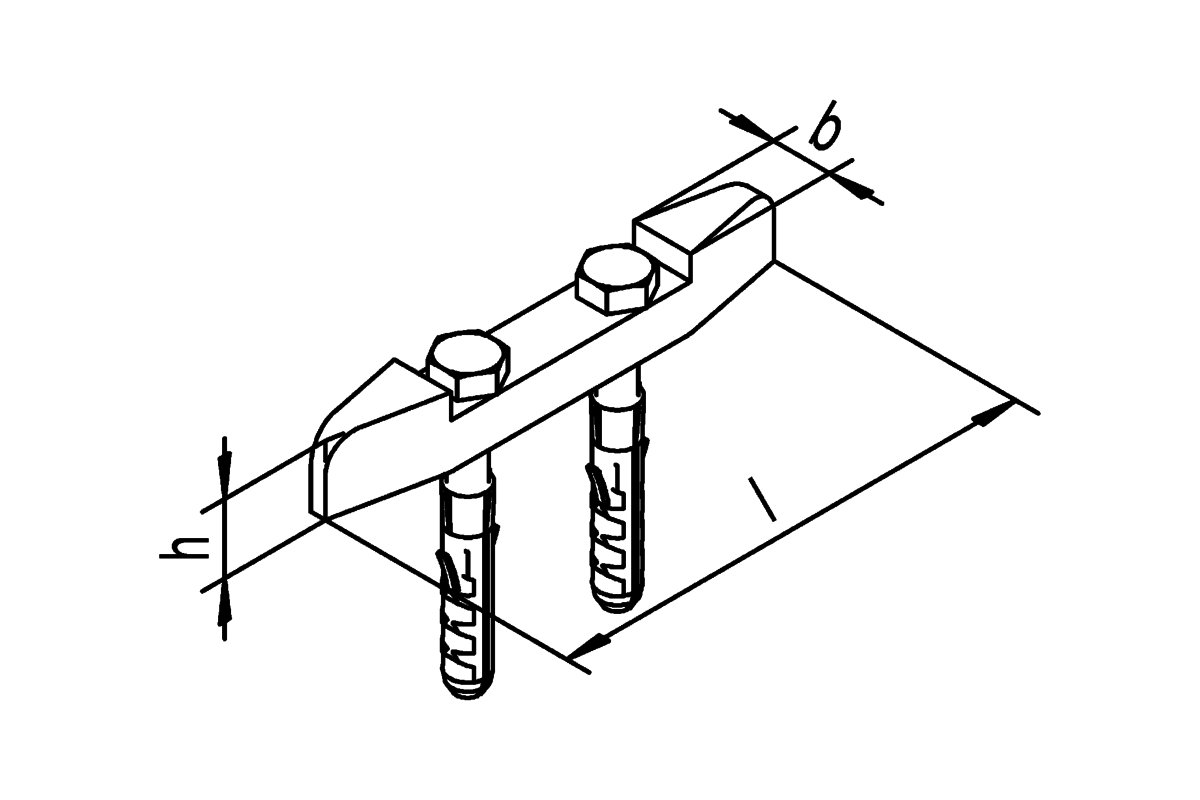

Dimensions (in mm)
| U-profile | HELM 340 |
| b | 19 |
| h | 23 |
| l | 150 |
