HELM -49 N
Roller guide for steel leaves
Material
steel
roller:
plastic or brass

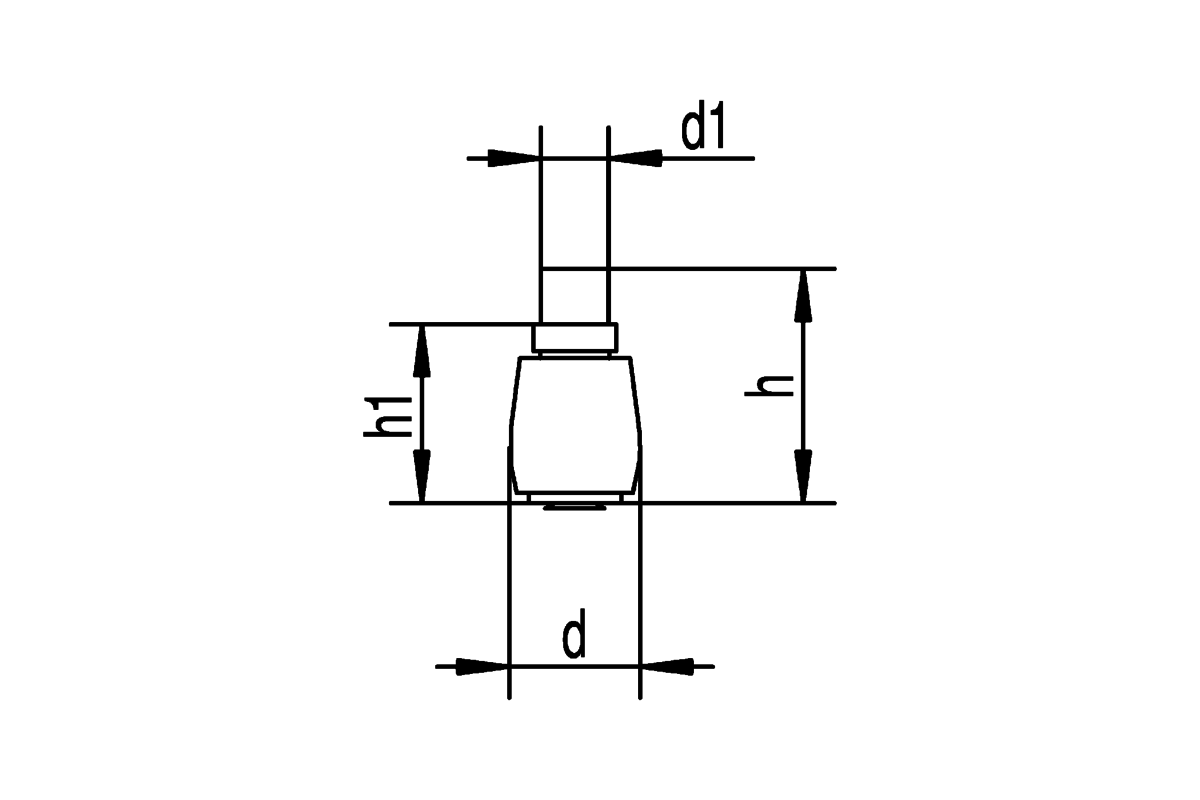

Dimensions (in mm)
| Article Art. no. | HELM 349 N HELM 0349.. | HELM 449 N HELM 0449.. | HELM 549 N HELM 0549.. |
| U-profile | HELM 340 | HELM 440 | HELM 540 |
| d | Ø 19 | Ø 32 | Ø 49,5 |
| d1 | Ø 9,8 | Ø 15,8 | Ø 19,8 |
| h | 35 | 46 | 67 |
| h1 | 27 | 36 | 47 |
