HELM SmartGuide H 216 S / 316 S
Bottom guide, clearance-free
- for interior sliding doors made of timber
- for reducing or avoiding rattling noises
- to be screwed onto the floor
- with mounting material

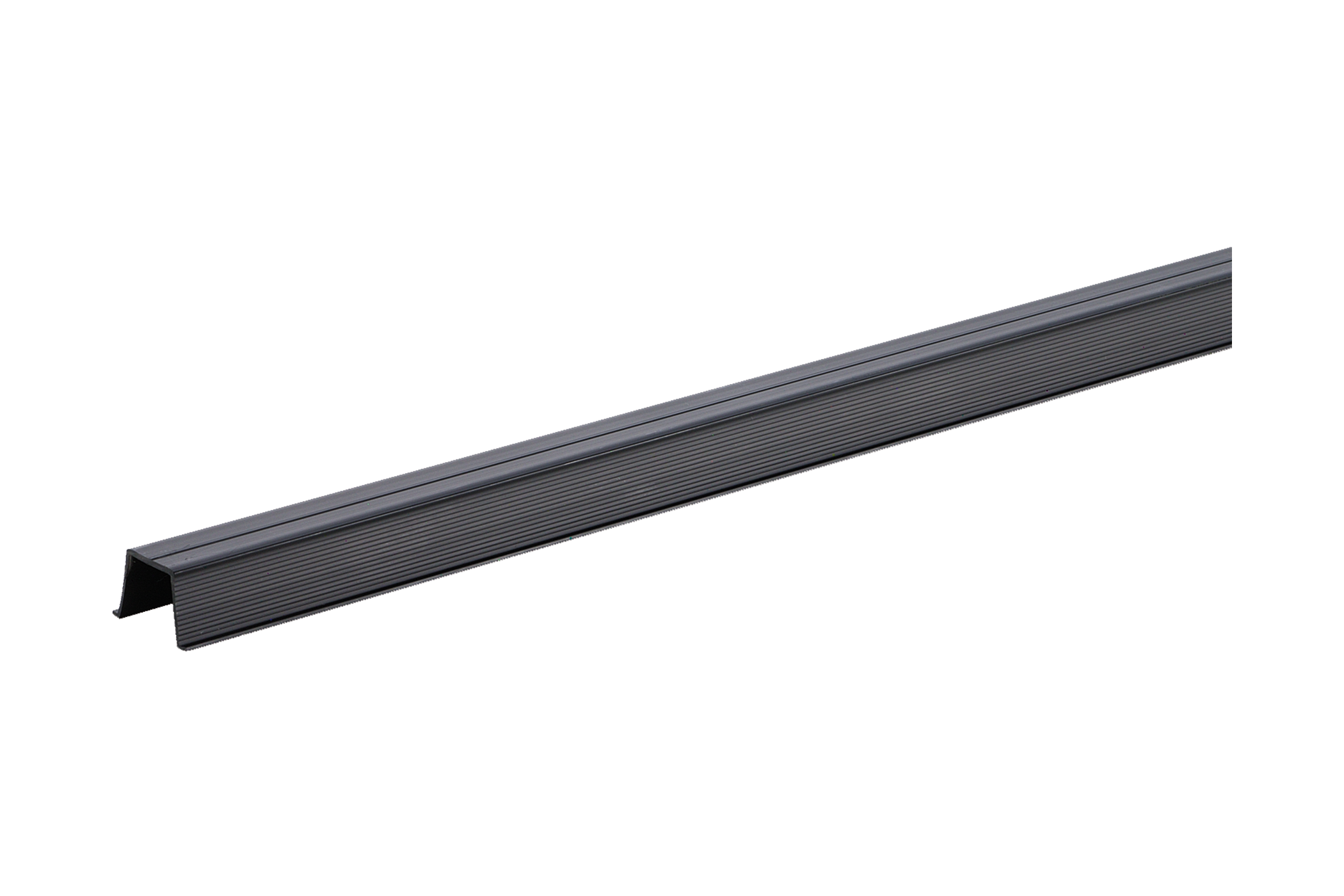

- can be used with HELM 240 / 340 U-track inserted into the bottom of the leaf
Material
plastic
Dimensions (in mm)
| Article Art. no. | HELM SmartGuide H 216 S HELM 021661 | HELM SmartGuide H 316 S HELM 031661 |
| U-track | HELM 240 | HELM 340 |
| b | 13,5 | 21,6 |
| h | 14,6 | 19,5 |
| l | 49,5 | 69,5 |
| groove | 16 x 13* | 25 x 25* |
*when used with U-track
