HELM MK-L 80 H 181

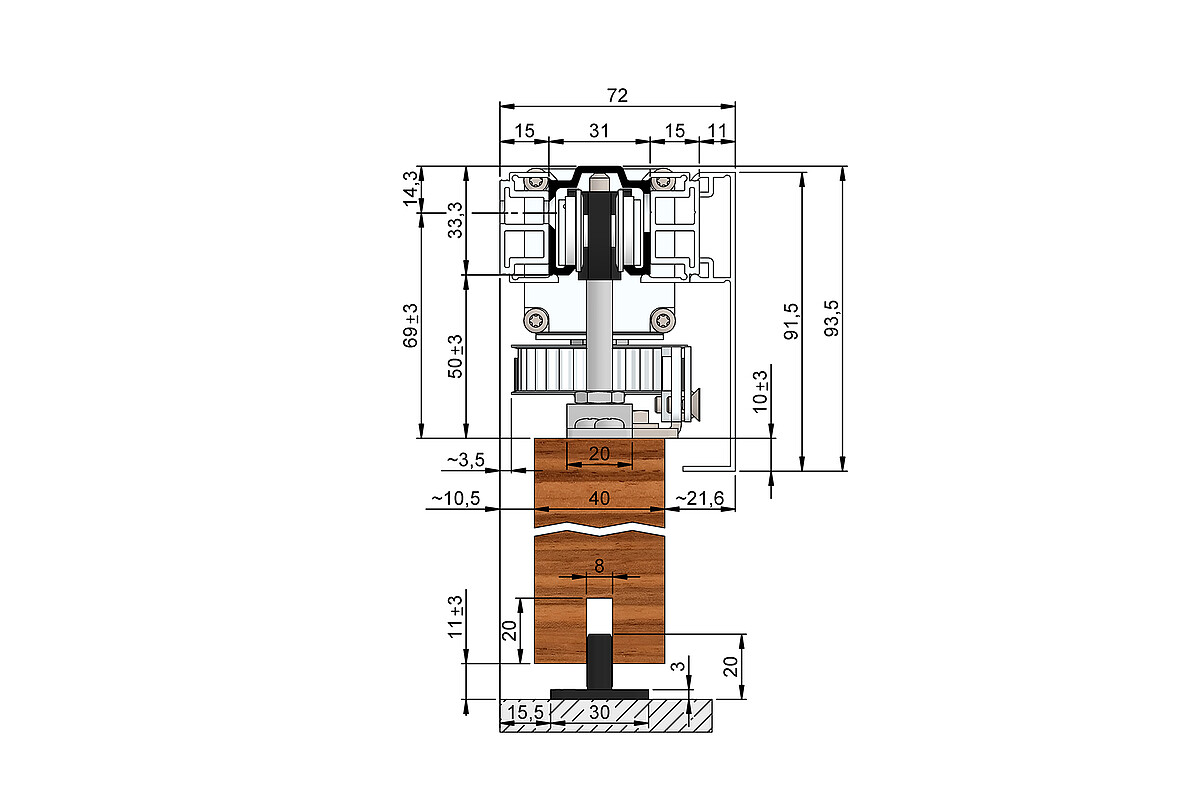

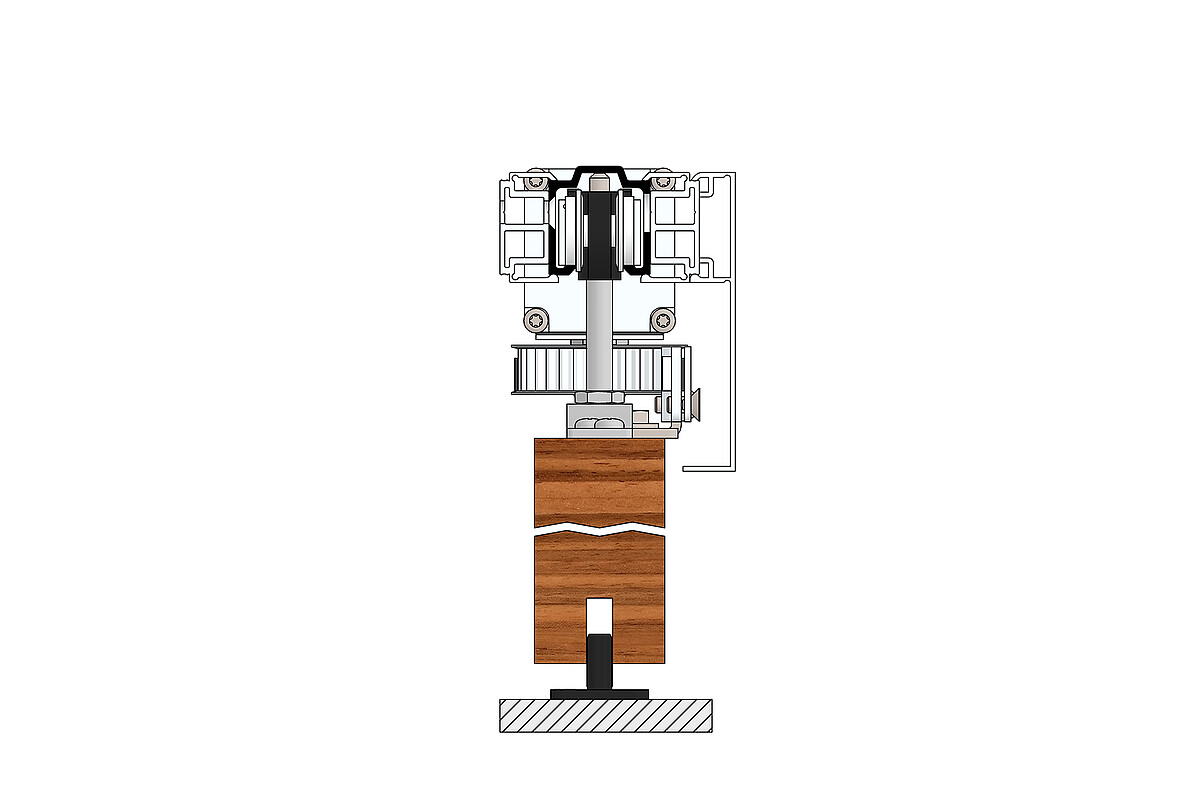

Drive-operated sliding door system for leaves up to 80 kg, HELMatic sliding door drive 230 V / FG 80, wall installation with 15 mm spacer profile and pelmet
- for automated interior sliding doors made of timber
- HELMatic:
- automatic sliding door drive (low energy operation) with integrated motor control unit
- can be controlled via a push button or by radio (with on-site actuator)
- Smart Home-ready
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartGuide: clearance-free bottom guide to reduce or avoid rattling noises, suitable for 8 mm groove
Leaf weight
max. 80 kg
Leaf thickness
from 20 mm
Technical data
voltage:
230 V / 50 Hz
rated current:
0,1 A
cable length:
1.500 mm (5 x 0,75 mm2)
clamped length (centre of deflection roller to centre of drive):
max. 7.500 mm
degree of protection:
IP54
conformity:
CE

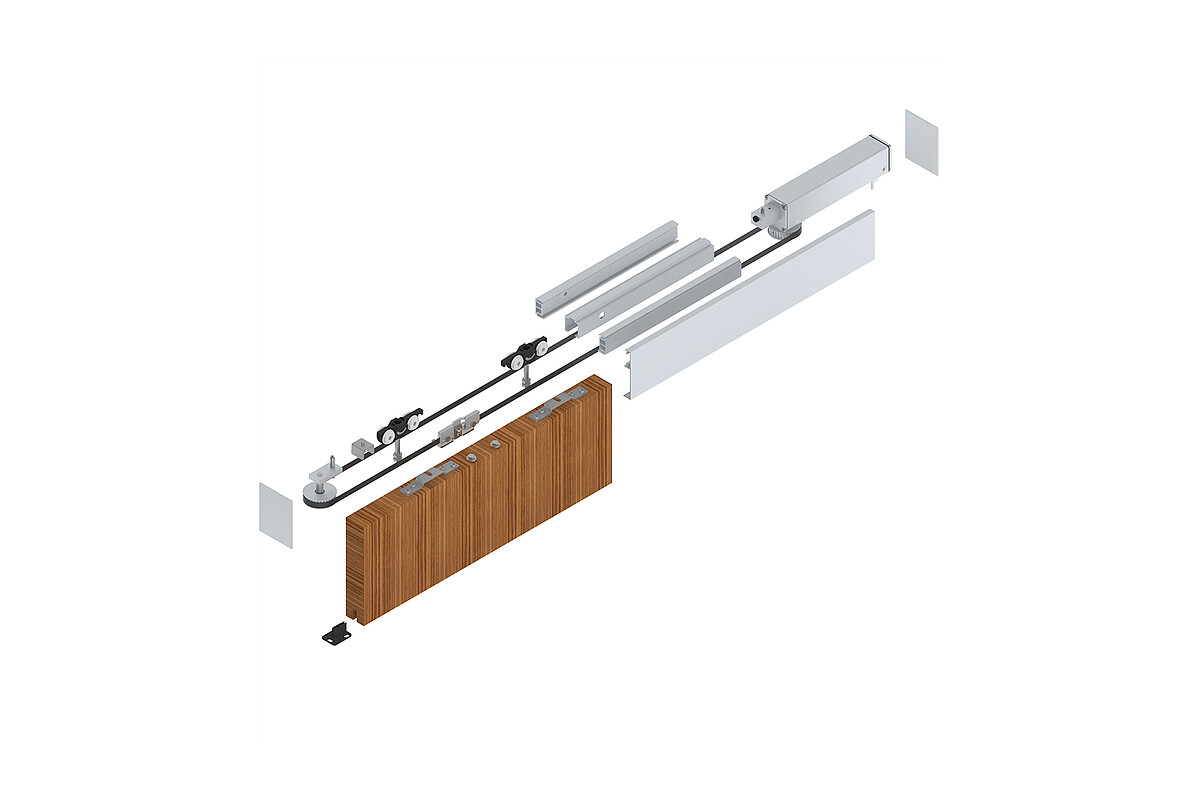

Set contents
Quantity | Article |
1 pc. | HELM 53/73 track, drilled on the side |
1 pc. | HELM spacer profile, 15 mm, drilled |
1 pc. | HELM clip-on pelmet, 91,5 mm, with spacer profile, 15 mm |
1 pc. | HELM end cap set |
2 pc. | HELM 73 trolley with ball bearing, M8 x 60 support screw and flange |
2 pc. | HELM 65 PS end stop |
1 pc. | HELMatic sliding door drive 230 V / FG 80 |
1 pc. | HELM deflection roller |
1 pc. | HELM toothed belt connector timber |
1 pc. | HELM toothed belt |
1 pc. | HELM SmartGuide H 212 S |
*clip-on pelmet and end caps black matte coated, track and spacer profiles silver anodised
