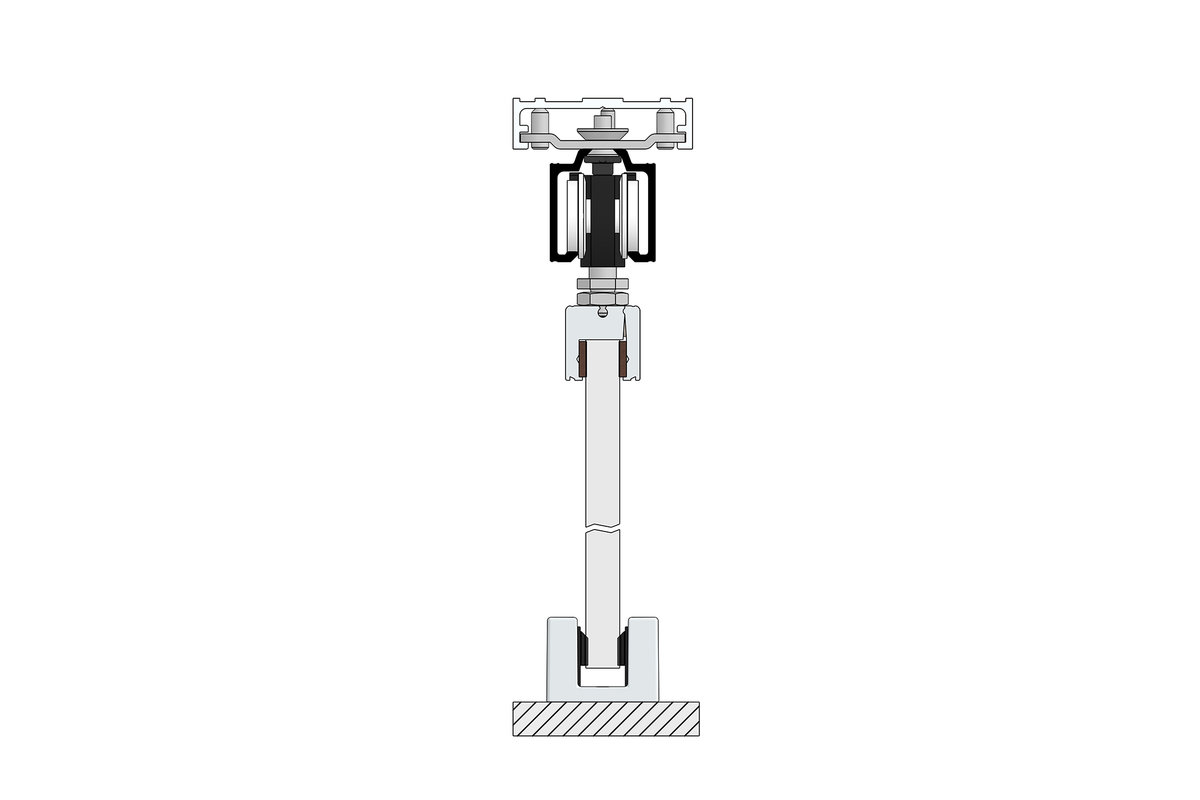

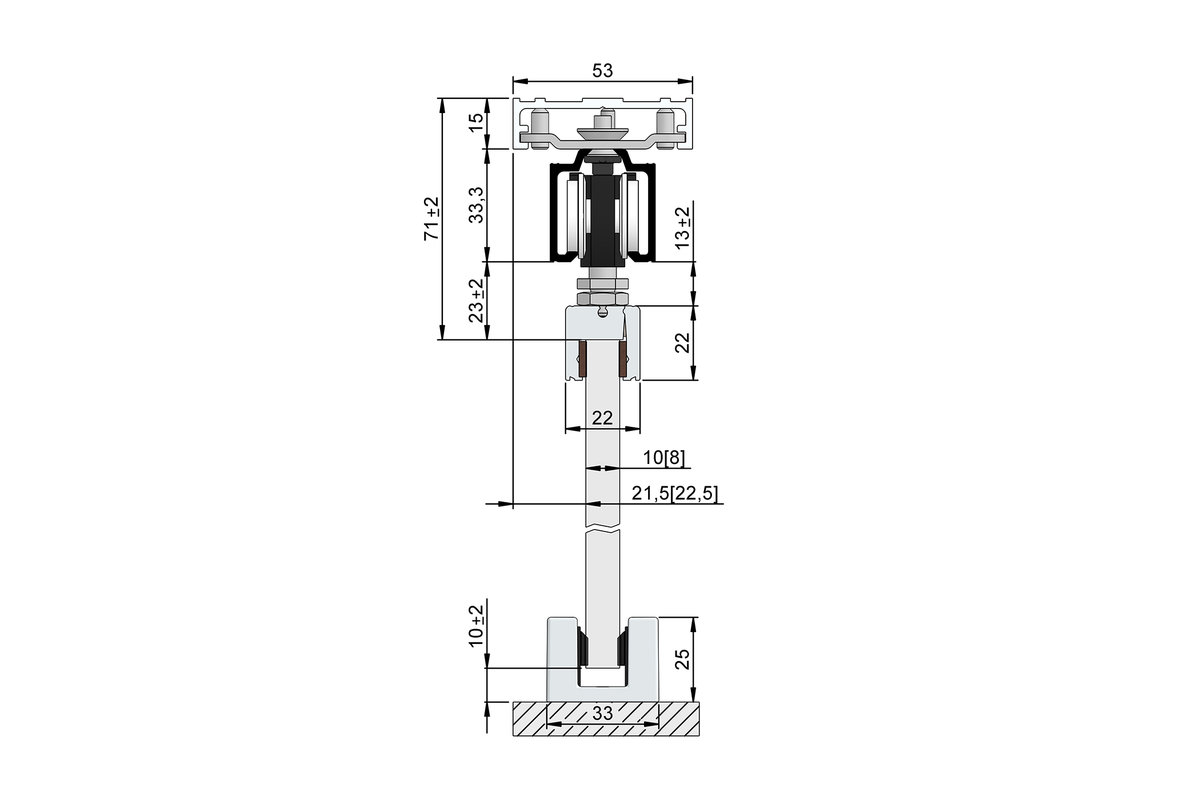

HELM MK-L 80 G 166
Sliding door system for leaves up to 80 kg, 8/8,76 and 10/10,76 mm TSG/LSG, wall pocket installation with MK-L SmartTip and WTR installation track, reversible
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- MK-L SmartTip: door ejector with bi-directional soft-close mechanism ensures smooth opening and closing, installed in the track
- WTR installation track: enables disassembly/assembly of the track at any time for maintenance, replacement and addition of components
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- note: WTR installation track is 25 mm longer than track(s)
Leaf weight
max. 80 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG*
Leaf width
min. 830 mm

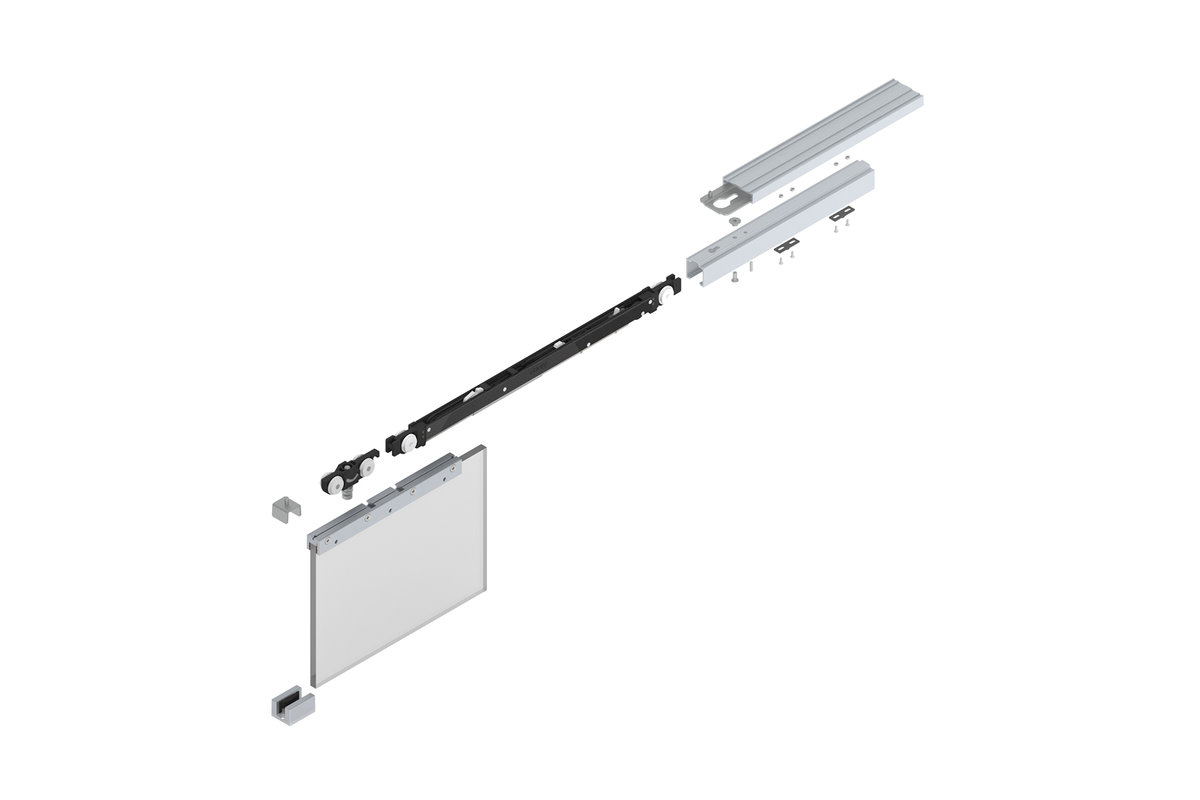

Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 2 pc. | HELM 53/73 track for MK-L SmartTip, perforated on top |
| 1 pc. | 1 pc. | HELM WTR installation track |
| ** pc. | ** pc. | HELM WTR fixing plate with mounting material |
| 2 pc. | 4 pc. | HELM 73 trolley with ball bearing and M8 x 30 support screw |
| 2 pc. | 4 pc. | HELM glass clamp, 250 x 22 mm, for 8/8,76 and 10/10,76 mm TSG/LSG* |
| 1 pc. | 2 pc. | HELM MK-L SmartTip with release triggers |
| 2 pc. | 4 pc. | HELM 65 PS end stop |
| 1 pc. | 2 pc. | HELM SmartGuide G |
*when using LSG the glass clamp must be glued on with two-component adhesive (not included in the set)
**quantity depends on track length
