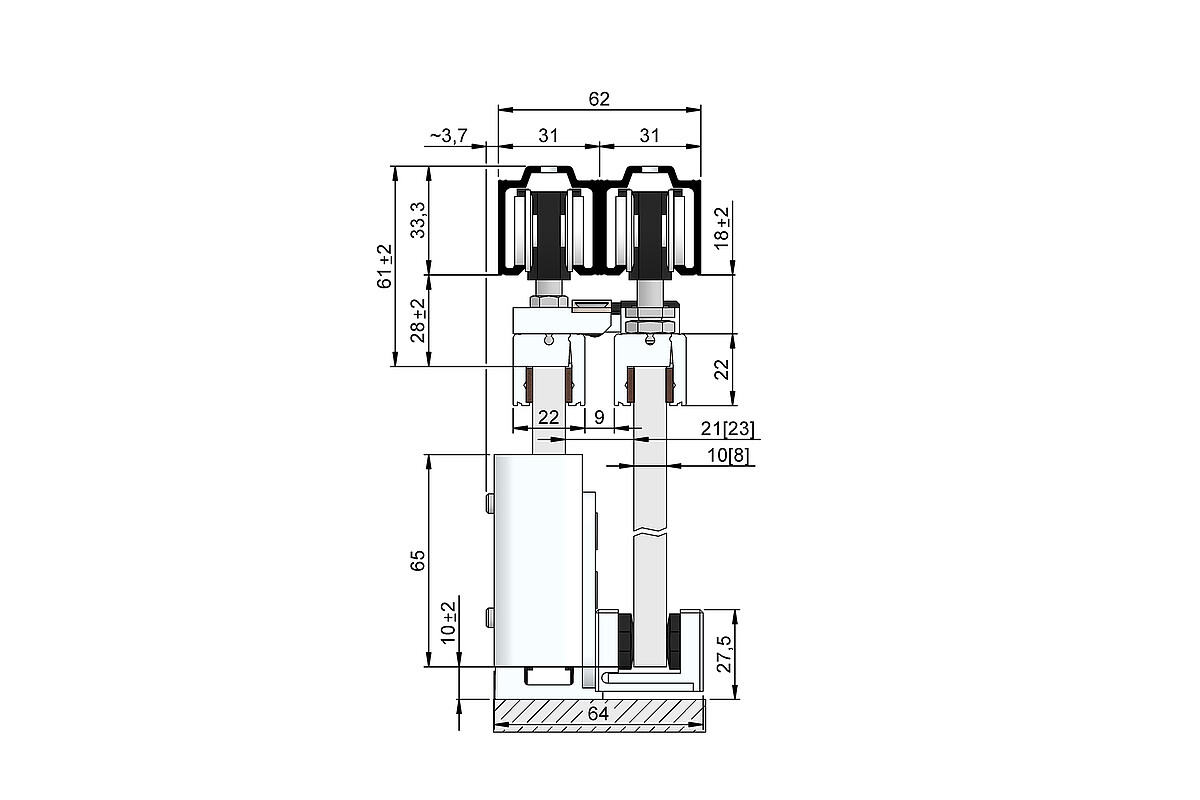

HELM MK-L 80 G 130
Sliding door system for double leaf telescopic systems up to 80 kg/leaf, 8/8,76 and 10/10,76 mm TSG/LSG, ceiling installation
- for telescopically sliding interior doors made of tempered safety glass (TSG) and laminated safety glass (LSG): The leading leaf pulls the following leaf into the desired position by means of latch and spring carriers
- trolleys: height adjustable even after installation, with load-bearing pendulum insert for a long service life
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
Leaf weight
max. 80 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG*
Leaf width
min. 860 mm

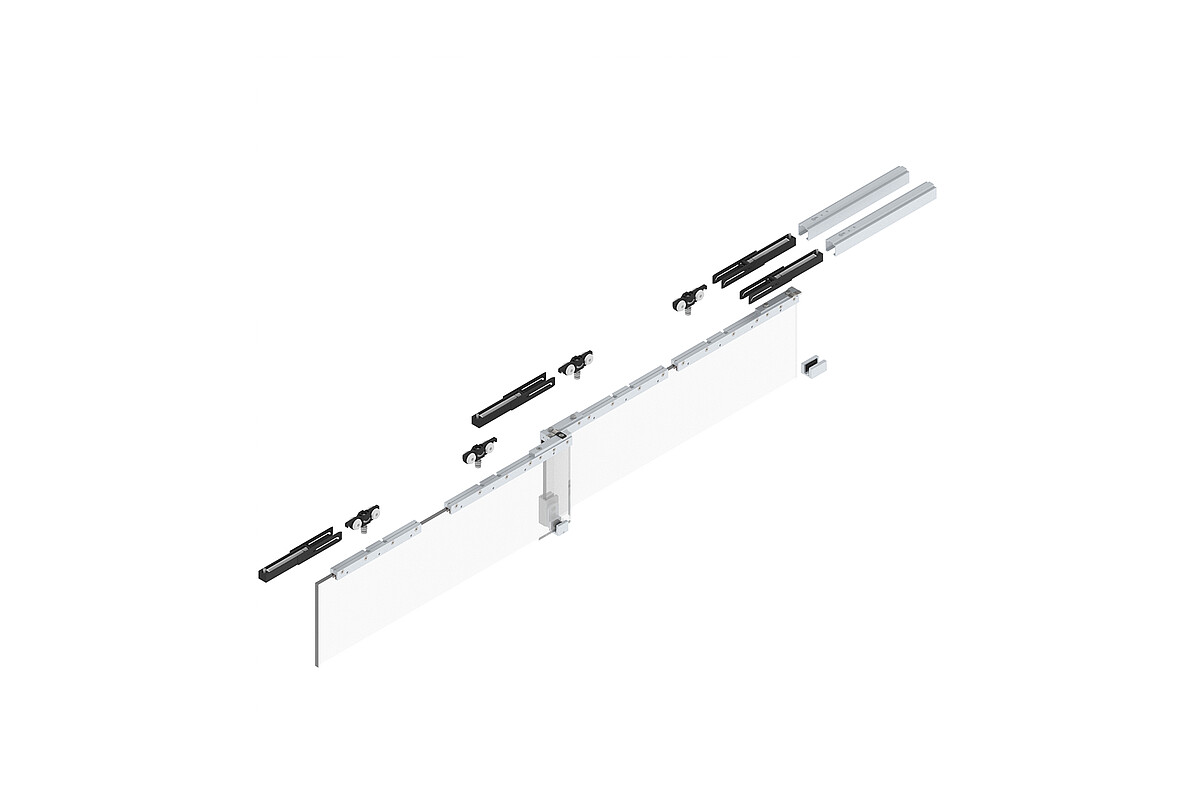

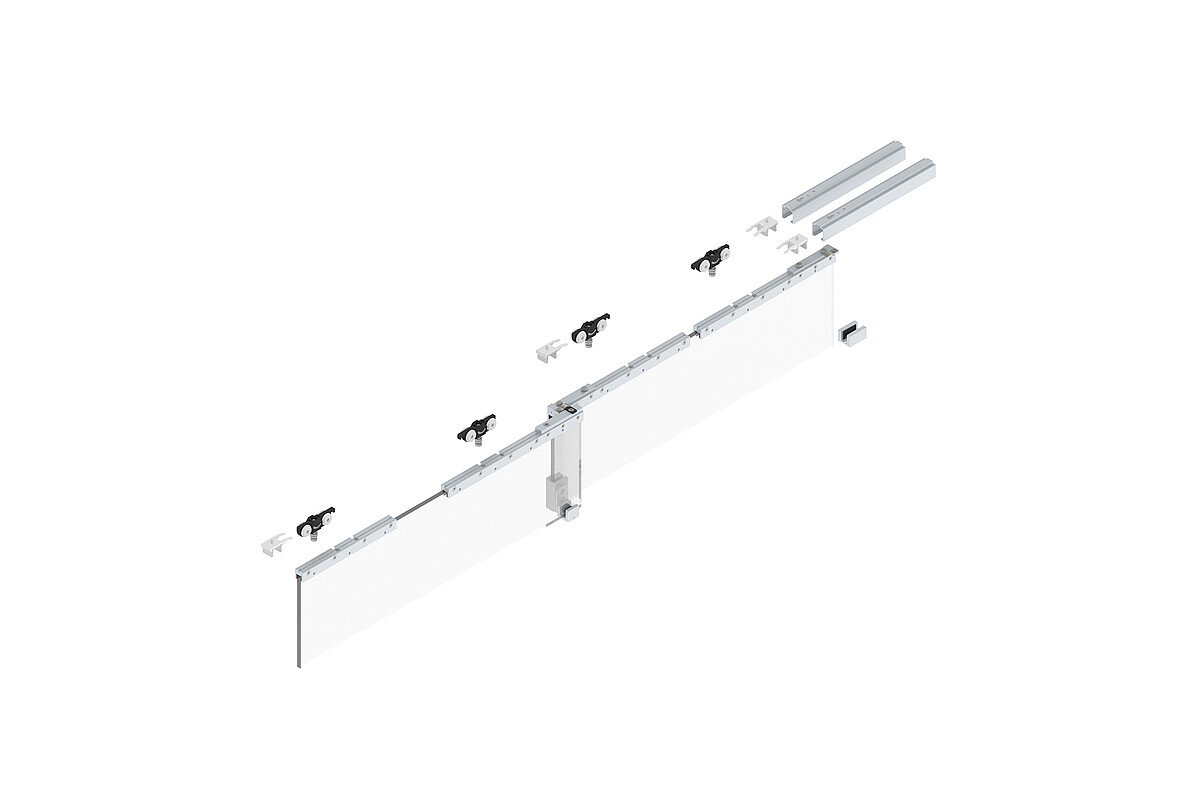

Set contents
| Quantity | Article |
| 2 pc. | HELM 53/73 track, perforated on top |
| 4 pc. | HELM 73 trolley with ball bearing and M8 x 30 support screw |
| 4 pc. | HELM glass clamp, 250 x 22 mm, for 8/8,76 and 10/10,76 mm TSG/LSG* |
| 1 pc. | HELM spring carrier left with glass clamp, 110 x 22 mm |
| 1 pc. | HELM spring carrier right with glass clamp, 110 x 22 mm |
| 1 pc. | HELM latch carrier with glass clamp, 110 x 22 mm |
| 4 pc. | HELM 65 P door catcher (when selecting "without damper and soft closing device") or HELM SmartStop FG 80 damper and soft closing device (when selecting "damper and soft closing device on both sides") |
| 1 pc. | HELM SmartGuide G |
| 1 pc. | HELM two-part bottom guide, with clamp fixing |
*when using LSG the glass clamp must be glued on with two-component adhesive (not included in the set)
