HELM GT-L 80 G 413

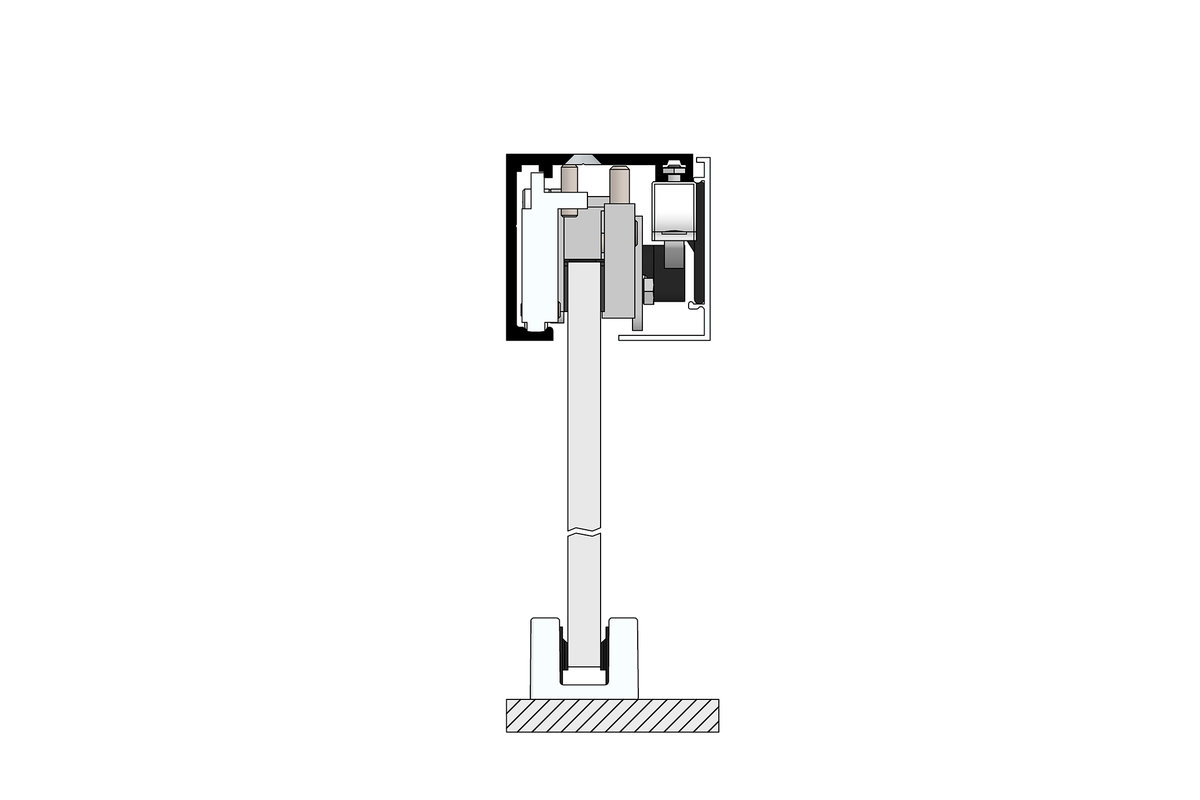

Sliding door system for leaves up to 80 kg, 8/8,76 and 10/10,76 mm TSG/LSG, ceiling installation
- for interior sliding doors made of tempered safety glass (TSG) and laminated safety glass (LSG)
- trolleys: height adjustable even after installation, with load-bearing rocker for a long service life
- SmartGuide: self-adjusting, clearance-free bottom guide to reduce or avoid rattling noises
- tested according to DIN EN 1527:2013 (200.000 cycles)
Leaf weight
max. 80 kg
Leaf thickness
8/8,76 and 10/10,76 mm TSG/LSG
Leaf width
min. 650 mm (with damper and soft closing device on one side)
min. 700 mm (with damper and soft closing device on both sides)
Set contents
| Quantity 1 leaf | 2 leaves | Article |
| 1 pc. | 1 pc. | HELM GT-L track for ceiling installation |
| 1 pc. | 1 pc. | HELM GT-L pelmet |
| * pc. | * pc. | HELM GT-L clamping adapter for pelmet |
| 1 pc. | 1 pc. | HELM GT-L end cap set |
| 2 pc. | 4 pc. | HELM GT-L 80 trolley |
| 2 pc. or 2 pc. each | 4 pc. or 4 pc. each | HELM GT-L door catcher left/right (when selecting "without damper and soft closing device") or HELM GT-L 80 damper and soft closing device with release bolt, HELM GT-L end stop left/right (when selecting "damper and soft closing device on both sides") |
| 1 pc. | 2 pc. | HELM SmartGuide G |
*quantity depends on track length
